REAR WHEEL (MODEL K1/K2)
RM250Z 2004 (K4) USA (E03)

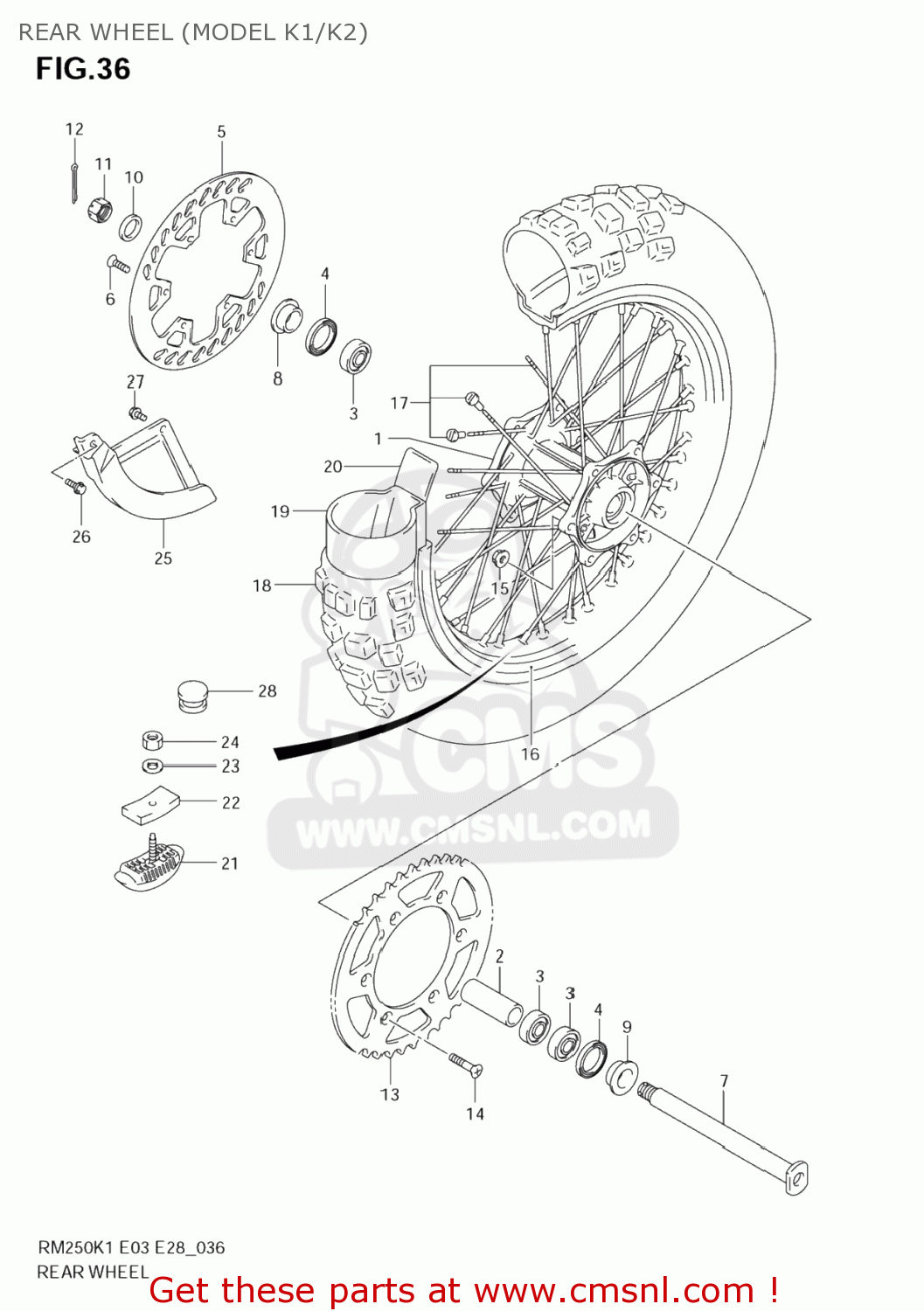

Rear wheel (model k1/k2) diagram RM250Z 2004 (K4) USA (E03)
REAR WHEEL (MODEL K1/K2) RM250Z 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411136E00
ref: 1
HUB,RR WHEEL
€ 361.00
2
6473136E00
ref: 2
SPACER,RR HUB BEARING
€ 22.50
3
0926222033
ref: 3
BEARING(22X44X12)
€ 32.50
4
0928330023
ref: 4
SEAL,OIL(30X44X7)
€ 8.50
5
6921137F00
ref: 5
DISC,RR BRAKE
€ 152.50
6
0912006011
ref: 6
09120-06014
SCREW
€ 2.50
7
6471137F10
ref: 7
AXLE,RR
€ 73.50
8
6475136E00
ref: 8
SPACER,RR AXLE
€ 19.00
9
6475136E00
ref: 9
SPACER,RR AXLE
€ 19.00
10
0916019022
ref: 10
WASHER(19X32X3.2)
€ 5.00
11
0831440183
ref: 11
08314-4018A
NUT
€ 4.50
12
0411140308
ref: 12
04111-4030A
PIN,COTTER
€ 1.50
13-1
6451128E00
ref: 13-1
SPROCKET,RR(NT:49)
€ 99.00
13-2
6451136E00
ref: 13-2
SPROCKET,RR(NT:50)
€ 99.00
13-3
6451137E00
ref: 13-3
SPROCKET,RR(NT:48)
€ 99.00
13-4
6451140261
ref: 13-4
SPROCKET,RR(NT:51 AL)
€ 87.50
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15
0915908067
ref: 15
NUT
€ 5.50
16
6531137E00
ref: 16
RIM,RR WHEEL(2.15X19 AL.)
€ 270.00
17
6532037F00
ref: 17
SPOKE SET,RR WHEEL
€ 124.00
18
6511037E10
ref: 18
TIRE,REAR 110/90-19
€ 0.00
18
6511037E10
ref: 18
TIRE,REAR 110/90-19
€ 0.00
19
6520028C20
ref: 19
65200-01B30
TUBE ASSY,WHEEL INNER
€ 41.00
20
6526128C20
ref: 20
PROTECTOR,WHL INR TUBE
€ 5.50
21
6527028E00
ref: 21
STOPPER,BEAD(2.15)
€ 38.00
22
6527127C00
ref: 22
CUSHION,BEAD STOPPER
€ 5.50
23
0832201083
ref: 23
08322-0108A
WASHER
€ 1.50
24
0831000083
ref: 24
08310-0008A
NUT
€ 1.50
25
6923136E00
ref: 25
69231-37F01
COVER,REAR DISC
€ 35.50
26
0155006203
ref: 26
01550-0620A
BOLT
€ 2.50
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
28
0925008013
ref: 28
CAP(OD:12)
€ 2.00
