PISTON - CRANKSHAFT
RM370 1976 (A) USA (E03)

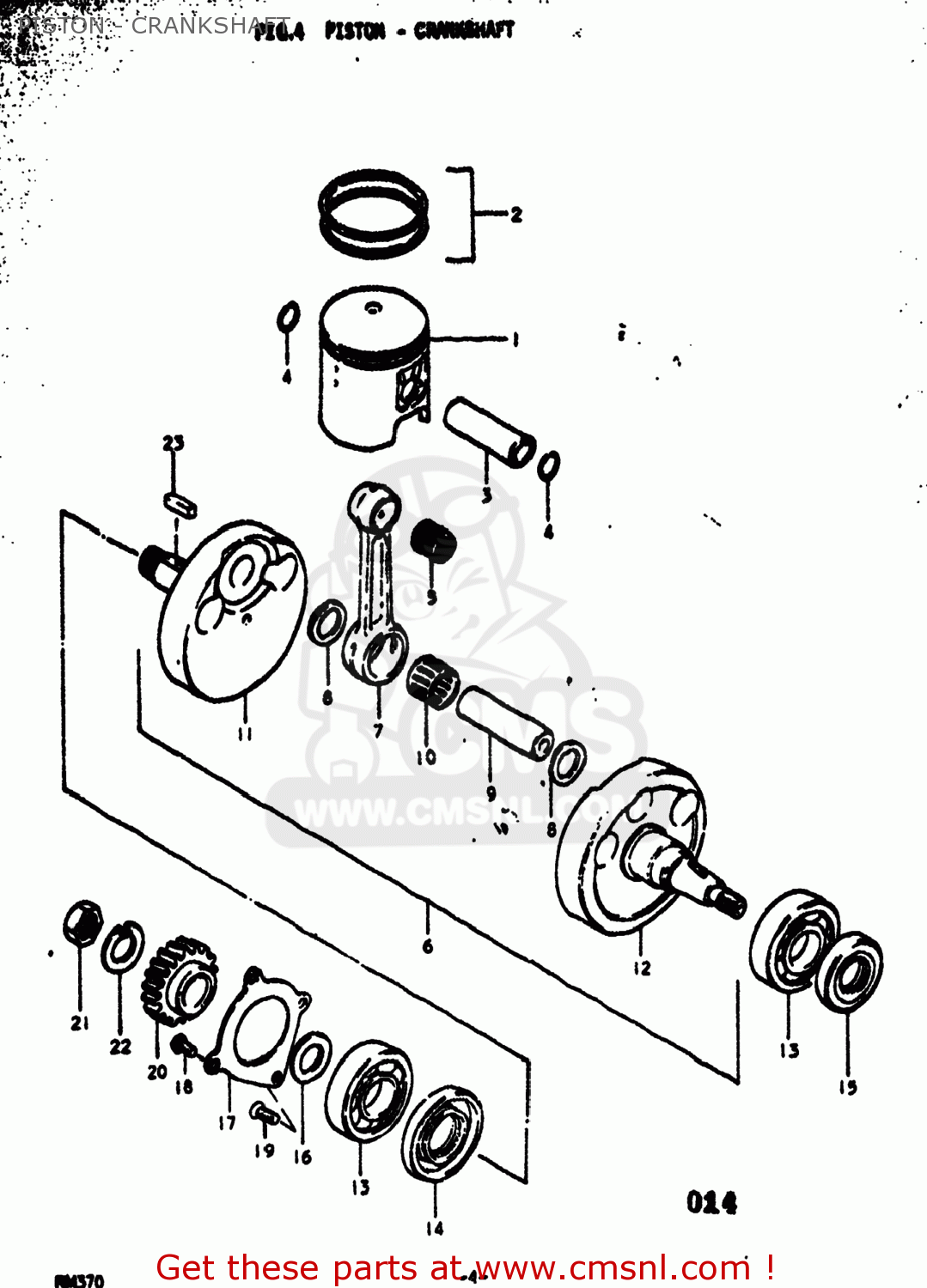

Piston - crankshaft diagram RM370 1976 (A) USA (E03)
PISTON - CRANKSHAFT RM370 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211041200
ref: 1-1
PISTON
€ 27.50
1-1
1211041200
ref: 1-1
PISTON
€ 27.50
1-2
1211041202
ref: 1-2
PISTON
€ 27.50
1-3
1211041710
ref: 1-3
PISTON
€ 131.50
1-3
1211041710
ref: 1-3
PISTON
€ 131.50
1-4
1211041712
ref: 1-4
12110-41202-025
PISTON
€ 131.50
1-5
1211041780
ref: 1-5
12110-41202-050
PISTON
€ 68.00
1-5
1211041780
ref: 1-5
12110-41202-050
PISTON
€ 68.00
1-6
1211041781
ref: 1-6
12110-41202-050
PISTON
€ 68.00
1-7
1211041790
ref: 1-7
12110-41202-075
PISTON
€ 55.00
1-7
1211041790
ref: 1-7
12110-41202-075
PISTON
€ 55.00
1-8
1211041791
ref: 1-8
12110-41202-075
PISTON
€ 55.00
2-1
1214041210
ref: 2-1
RING SET,PISTON
€ 16.50
2-2
1214041211
ref: 2-2
RING SET,PISTON
€ 20.00
2-3
1214041710
ref: 2-3
12140-41210-025
RING SET,PISTON
€ 31.00
2-4
1214041711
ref: 2-4
12140-41211-025
RING SET,PISTON
€ 31.50
2-5
1214041780
ref: 2-5
RING SET,PISTON
€ 30.50
2-6
1214041781
ref: 2-6
12140-41211-050
RING SET,PISTON
€ 34.00
2-7
1214041790
ref: 2-7
12140-41210-075
RING SET,PISTON
€ 29.50
2-8
1214041791
ref: 2-8
RING SET,PISTON
€ 33.50
3
1215115001
ref: 3
12151-13A00-0A0
PIN,PISTON (18MM)
€ 14.50
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318011
ref: 5
09263-18016
BEARING(18X23X22)
€ 14.00
6
1220041200
ref: 6
CRANKSHAFT ASSEMBLY
€ 0.00
7
1216141200
ref: 7
ROD,CONNECTING
€ 81.50
8
0916024015
ref: 8
WASHER(24X29X1.5)
€ 7.50
9
1221141200A
ref: 9
12211-40900
PIN,CRANK
€ 34.50
10
0926324007
ref: 10
09263-24026
BEARING
€ 62.50
11
1222141200
ref: 11
CRANKSHAFT
€ 130.00
12
1226141200
ref: 12
CRANKSHAFT,LEFT
€ 139.00
13
0811363060
ref: 13
09262-30077
BEARING
€ 47.50
14
0928940004
ref: 14
SEAL,OIL(40X72X9)
€ 15.50
15
0928324001
ref: 15
SEAL,OIL(24X50X9)
€ 19.00
16
0916025021
ref: 16
WASHER
€ 4.00
17
1254141200
ref: 17
PLATE
€ 3.00
18
0211206126
ref: 18
02112-0612A
SCREW
€ 1.50
19
0212206128
ref: 19
02122-06127
SCREW
€ 3.00
20
2111141200
ref: 20
GEAR,PRIMARY DRIVE
€ 13.50
21
0914020006
ref: 21
NUT
€ 4.00
22
0916620005
ref: 22
WASHER
€ 1.50
23
0942107001
ref: 23
KEY
€ 2.50
