REAR WHEEL (RM370A)
RM370 1976 (A) USA (E03)

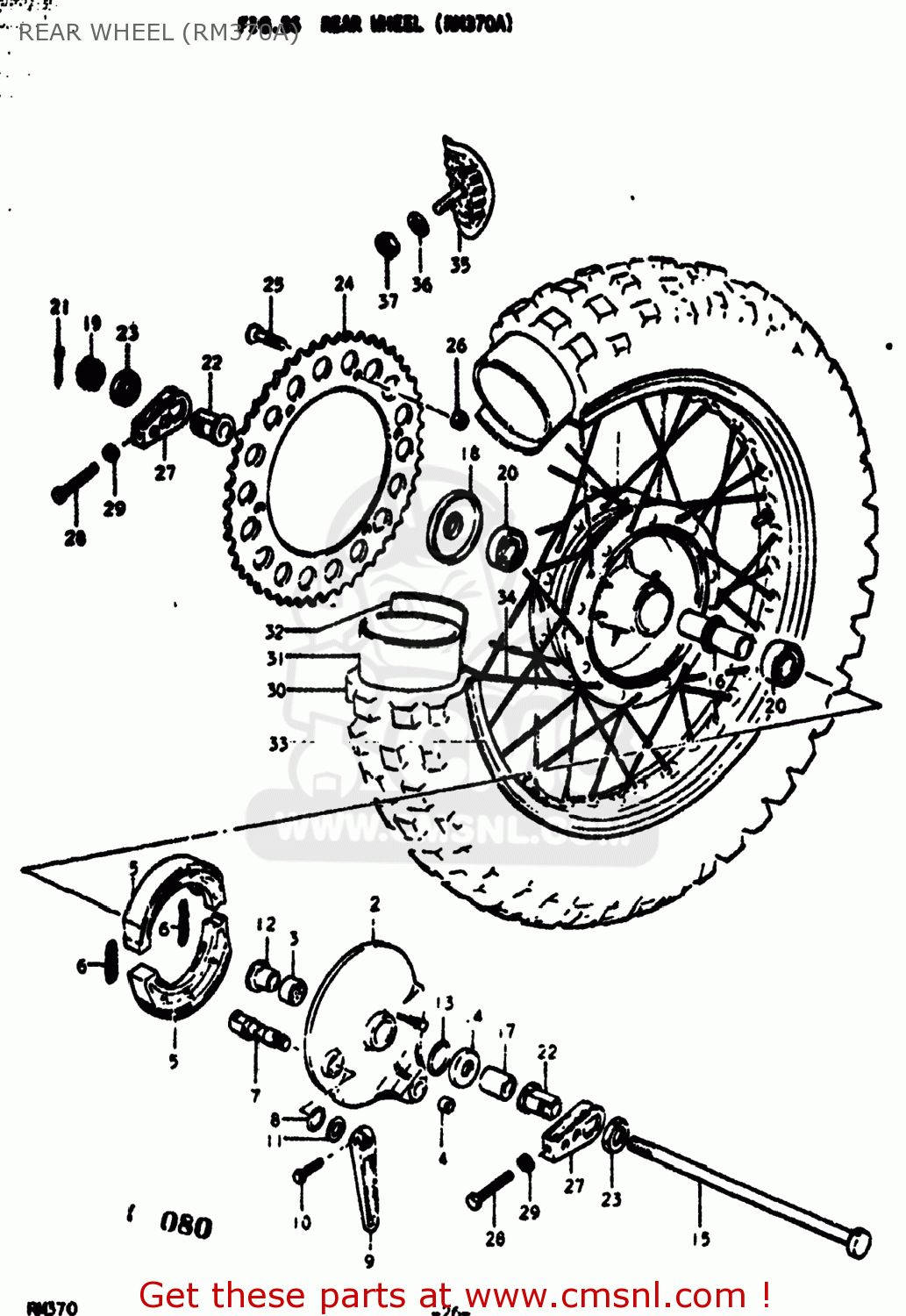

Rear wheel (rm370a) diagram RM370 1976 (A) USA (E03)
REAR WHEEL (RM370A) RM370 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411041601
ref: 1-1
HUB COMP,REAR
€ 133.50
1-2
6410041810
ref: 1-2
HUB COMP,REAR
€ 0.00
2-1
6421041101
ref: 2-1
PANEL,REAR HUB
€ 72.00
2-2
6421041102
ref: 2-2
PANEL,REAR HUB
€ 72.00
2-3
6421041700
ref: 2-3
PANEL,REAR HUB
€ 0.00
3
0930420014
ref: 3
BUSHING
€ 2.50
4
6424141100
ref: 4
PIN,CALIPER BRACKET
€ 1.00
5
5441008002
ref: 5
64400-02830
SHOE,BRAKE
€ 35.00
6-1
5542030000
ref: 6-1
SPRING,BRAKE SHOE
€ 3.50
6-2
5542041100
ref: 6-2
SPRING
€ 5.50
7
5444108001
ref: 7
54440-08004
CAM,FRONT BRAKE
€ 19.00
8
0928015001
ref: 8
09280-15003
O-RING,BOSS
€ 2.00
9
5445141100
ref: 9
LEVER,FRONT BRAKE CAM
€ 43.50
10
0111206258
ref: 10
01500-06257
BOLT
€ 2.00
11
0916015001
ref: 11
09160-15048
WASHER (15X24X1.6)
€ 2.50
12
0930115001
ref: 12
BUSHING
€ 5.50
13
0928032004
ref: 13
O-RING
€ 0.00
14
6485241100
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 7.00
15
6471132100
ref: 15
64711-32101
AXLE,REAR
€ 62.50
16
6473041100
ref: 16
SPACER,REAR HUB BEARING
€ 8.50
17
0918015040
ref: 17
SPACER
€ 3.50
18
6475041101
ref: 18
SPACER,REAR AXLE
€ 5.00
19
0831431148
ref: 19
08314-3114A
NUT
€ 2.50
20
0812363020
ref: 20
08123-63027
BEARING
€ 19.00
21
0411130408
ref: 21
04111-3040A
PIN 30X40
€ 1.50
22
6479141100
ref: 22
SPACER,CHAIN ADJUSTER
€ 14.50
23
0914022006
ref: 23
NUT
€ 6.00
24
6451140731
ref: 24
64511-41131
SPROCKET,REAR
€ 79.50
25
0912008003
ref: 25
09120-08004
SCREW
€ 3.00
26
0915909021
ref: 26
NUT
€ 0.00
27
6141041100
ref: 27
ADJUSTER,CHAIN
€ 10.00
28
0910408006
ref: 28
09104-08034
BOLT
€ 3.00
29
0831211088
ref: 29
08310-00087
NUT
€ 2.00
30
6510041110
ref: 30
65100-14230
TIRE
€ 0.00
31
6520041110
ref: 31
65200-16510
TUBE ASSEMBLY,WHEEL,INNER
€ 16.00
32
6526116510
ref: 32
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
33
6531141120
ref: 33
65311-41220
RIM,REAR WHEEL
€ 119.00
34
6530041811
ref: 34
65300-41851
SPOKE SET,REAR
€ 48.00
35
6527032101
ref: 35
65270-28E00
STOPPER,BEAD
€ 38.00
36
0832211088
ref: 36
08322-01087
WASHER
€ 2.00
37
0831211088
ref: 37
08310-00087
NUT
€ 2.00
