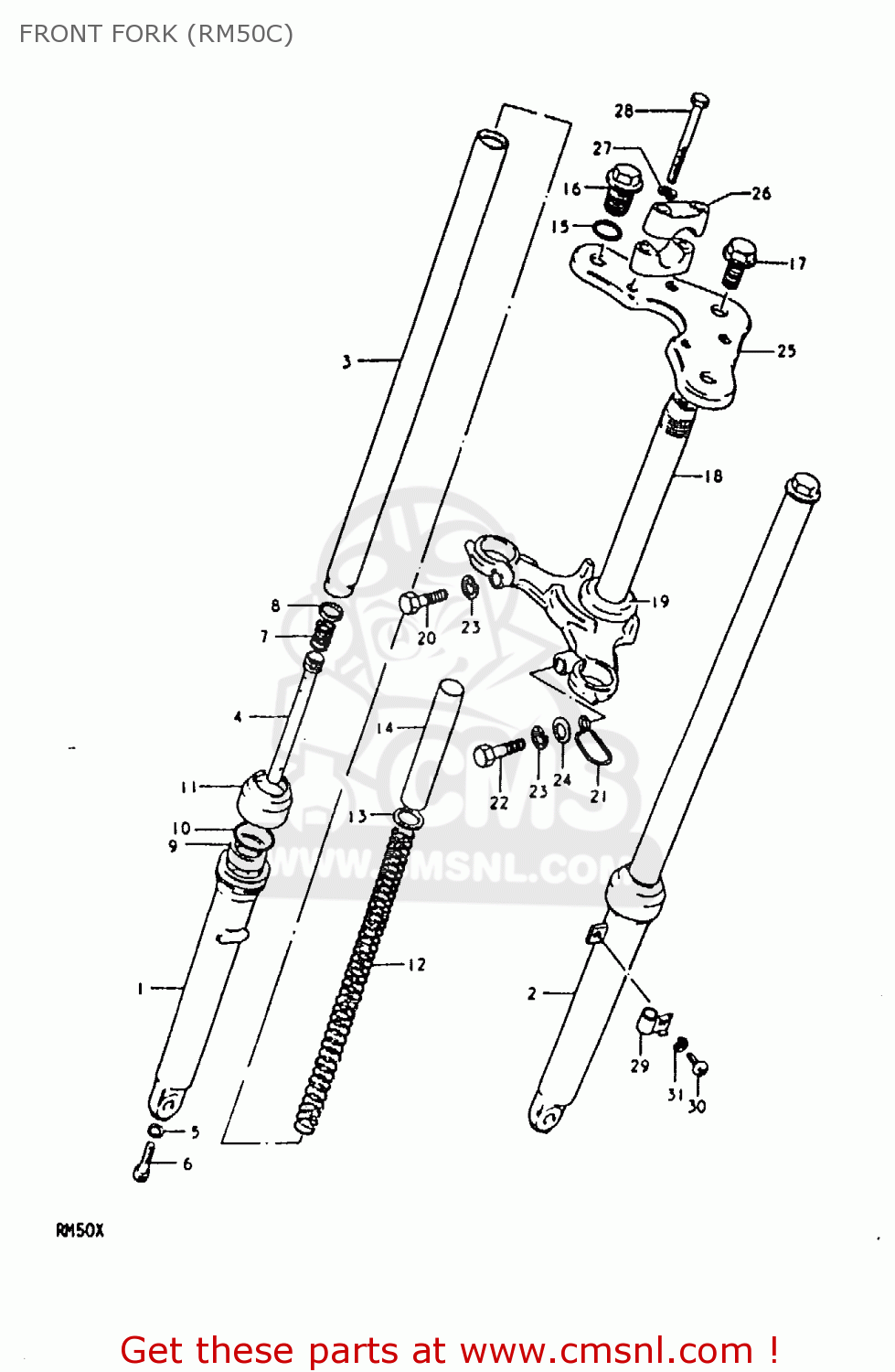

FRONT FORK (RM50C)

ref

part #

description

quantity

0

5110046660291
ref: 0
TO 51100-46661-291 U

DAMPER SET

€ 16.00

0

5110046661291
ref: 0
F.NO. 107152~

DAMPER SET

€ 16.00

1-1

5113146660
ref: 1-1
TO 51131-46661 USED

TUBE,OUTER,RIGHT

€ 0.00

1-2

5113146661
ref: 1-2
F.NO. 107152~

TUBE,OUTER,RIGHT

€ 0.00

2-1

5114146660
ref: 2-1
TO 51141-46661 USED

TUBE,OUTER,LEFT

€ 0.00

2-2

5114146661
ref: 2-2
F.NO. 107152~

TUBE,OUTER,LEFT

€ 0.00

3

5111046400
ref: 3

TUBE,FORK,INNER

€ 113.50

4

5114646400
ref: 4

CYLINDER,FRONT FORK

€ 0.00

5

5114831030
ref: 5

GASKET (NAS)

€ 4.00

6

5114731030
ref: 6

BOLT

€ 3.50

7

5117746100
ref: 7

SPRING,REBOUND

€ 3.50

8

5119646100
ref: 8

RING,PISTON

€ 6.00

9

5115346100
ref: 9

OIL SEAL,FRONT FORK

€ 10.50

10

5115646100
ref: 10

CIRCLIP,FORK OIL SEAL

€ 3.50

11

5157146100
ref: 11

DUST SEAL

€ 6.00

12

5117146660
ref: 12

SPRING

€ 0.00

13

5119246100
ref: 13

JOINT,SPRING

€ 2.50

14

5117646100
ref: 14

SPACER,SPRING

€ 6.50

15

5118146190
ref: 15

O-RING,FORK INNER TUBE

€ 5.50

16

5135146190
ref: 16

CAP

€ 15.00

17

5135246101
ref: 17

BOLT

€ 5.50

18

5141046400
ref: 18

STEM,STEERING

€ 107.00

19

5162133001
ref: 19

RACE,STEERING OUTER LWR

€ 10.00

20

0110710308
ref: 20

BOLT 10X30

€ 3.00

21

5145546030
ref: 21

CLAMP,METER CABLE

€ 2.50

22

0110710358
ref: 22

BOLT,M10X1.25X

€ 2.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

0832211108
ref: 24

WASHER

€ 2.50

25

5131146400291
ref: 25

HEAD,STEERING STEM

€ 37.50

26

5621127200291
ref: 26

HOLDER,HANDLE UPR

€ 13.50

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0110708558
ref: 28

BOLT 8X55

€ 3.00

29

5145246030
ref: 29

CLIP,CABLE

€ 5.50

30

0211204128
ref: 30

SCREW

€ 1.50

31

0832121048
ref: 31

LOCK WASHER

€ 2.00

all assemblies
