FRONT FORK (RM50N, RM50T, RM50X)
RM50 1978 (C)

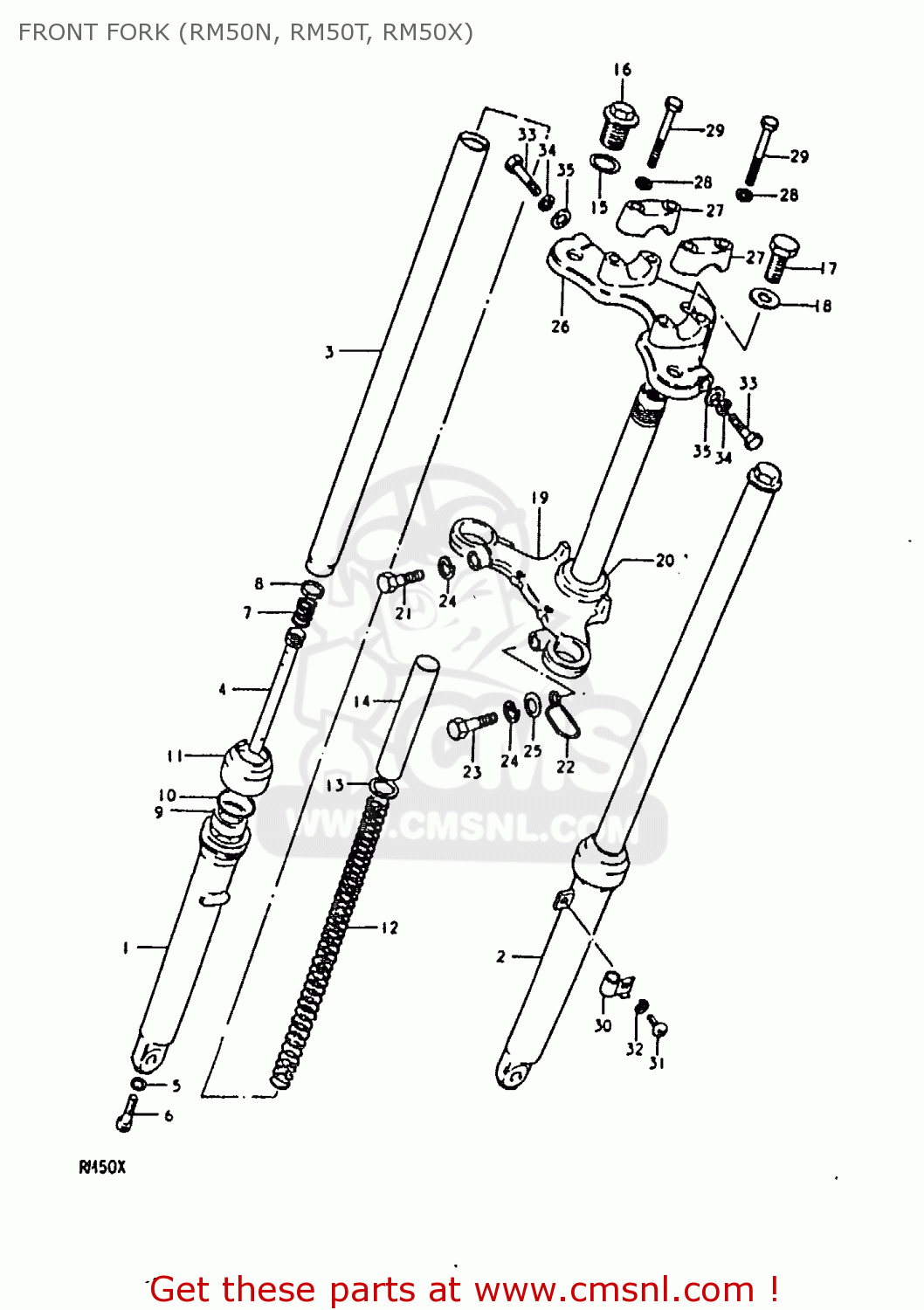

Front fork (rm50n, rm50t, rm50x) diagram RM50 1978 (C)
FRONT FORK (RM50N, RM50T, RM50X) RM50 1978 (C)
×
prices are in EUR
ref
part #
description
quantity
0
511004668008C
ref: 0
DAMPER SET
€ 0.00
1
5113146680
ref: 1
TUBE,OUTER,RIGHT
€ 43.00
2
5114146680
ref: 2
TUBE,OUTER,LEFT
€ 31.50
3
5111046400
ref: 3
TUBE,FORK,INNER
€ 113.50
4
5114646680
ref: 4
CYLINDER,FRONT FORK
€ 0.00
5
5114831030
ref: 5
GASKET (NAS)
€ 4.00
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5117746100
ref: 7
SPRING,REBOUND
€ 3.50
8
5119646100
ref: 8
RING,PISTON
€ 6.00
9
5115346100
ref: 9
OIL SEAL,FRONT FORK
€ 10.50
10
5115646100
ref: 10
CIRCLIP,FORK OIL SEAL
€ 3.50
11
5157146100
ref: 11
DUST SEAL
€ 6.00
12
5117146680
ref: 12
SPRING
€ 0.00
13
5119246100
ref: 13
JOINT,SPRING
€ 2.50
14
5117646100
ref: 14
SPACER,SPRING
€ 6.50
15
5118146190
ref: 15
O-RING,FORK INNER TUBE
€ 5.50
16
5135146680
ref: 16
CAP,FORK
€ 0.00
17
5135246030
ref: 17
BOLT
€ 6.00
18
5135646030
ref: 18
WASHER(10.5X30X2.3)
€ 5.00
19
514104668008C
ref: 19
FROM 51410-46680
STEM,STEERING
€ 0.00
20
5162133001
ref: 20
RACE,STEERING OUTER LWR
€ 10.00
21
0110710308
ref: 21
BOLT 10X30
€ 3.00
22
5145546030
ref: 22
CLAMP,METER CABLE
€ 2.50
23
0110710358
ref: 23
BOLT,M10X1.25X
€ 2.50
24
0832121108
ref: 24
LOCK WASHER
€ 2.00
25
0832211108
ref: 25
WASHER
€ 2.50
26
513114668008C
ref: 26
HEAD,STEERING STEM
€ 0.00
27
562114668008C
ref: 27
HOLDER,HANDLEBAR
€ 9.50
28
0832121088
ref: 28
LOCK WASHER
€ 2.00
29
0110708358
ref: 29
BOLT
€ 3.50
30
5145246030
ref: 30
CLIP,CABLE
€ 5.50
31
0211204128
ref: 31
SCREW
€ 1.50
32
0832121048
ref: 32
LOCK WASHER
€ 2.00
33
0110708408
ref: 33
BOLT 8X40
€ 3.00
34
0832121088
ref: 34
LOCK WASHER
€ 2.00
35
0832221088
ref: 35
WASHER
€ 2.00
