FRONT FORK (RM50C)
RM50 1979 (N) USA (E03)

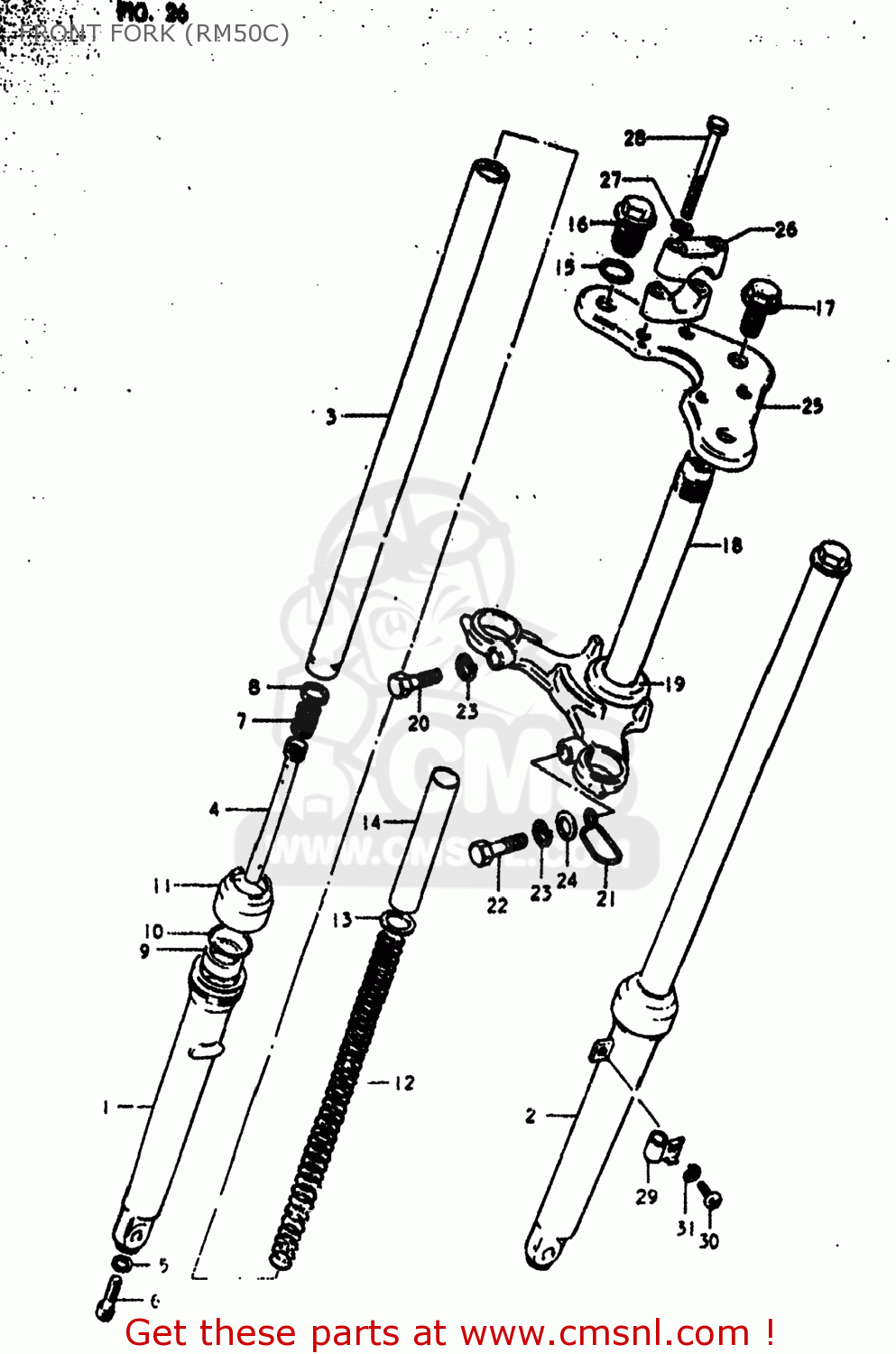

Front fork (rm50c) diagram RM50 1979 (N) USA (E03)
FRONT FORK (RM50C) RM50 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110046660291
ref: 0-1
51100-46671-291
DAMPER SET
€ 16.00
0-1
5110046660291
ref: 0-1
51100-46671-291
DAMPER SET
€ 16.00
0-2
5110046661291
ref: 0-2
51100-46671-291
DAMPER SET
€ 16.00
1-1
5113146660
ref: 1-1
51131-46661
TUBE,OUTER,RIGHT
€ 0.00
1-1
5113146660
ref: 1-1
51131-46661
TUBE,OUTER,RIGHT
€ 0.00
1-2
5113146661
ref: 1-2
TUBE,OUTER,RIGHT
€ 0.00
2-1
5114146660
ref: 2-1
51141-46661
TUBE,OUTER,LEFT
€ 0.00
2-1
5114146660
ref: 2-1
51141-46661
TUBE,OUTER,LEFT
€ 0.00
2-2
5114146661
ref: 2-2
TUBE,OUTER,LEFT
€ 0.00
3
5111046400
ref: 3
TUBE,FORK,INNER
€ 113.50
4
5114646400
ref: 4
CYLINDER,FRONT FORK
€ 0.00
5
5114831030
ref: 5
51148-36011
GASKET (NAS)
€ 4.00
6
5114731030
ref: 6
51147-48130
BOLT
€ 3.50
7
5117746100
ref: 7
SPRING,REBOUND
€ 3.50
8
5119646100
ref: 8
RING,PISTON
€ 6.00
9
5115346100
ref: 9
51153-03400
OIL SEAL,FRONT FORK
€ 10.50
10
5115646100
ref: 10
51156-48130
CIRCLIP,FORK OIL SEAL
€ 3.50
11
5157146100
ref: 11
DUST SEAL
€ 6.00
12
5117146660
ref: 12
SPRING
€ 0.00
13
5119246100
ref: 13
JOINT,SPRING
€ 2.50
14
5117646100
ref: 14
SPACER,SPRING
€ 6.50
15
5118146190
ref: 15
09280-18004
O-RING,FORK INNER TUBE
€ 5.50
16
5135146190
ref: 16
CAP
€ 15.00
17
5135246101
ref: 17
BOLT
€ 5.50
18
5141046400
ref: 18
51410-46720
STEM,STEERING
€ 107.00
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
0110710308
ref: 20
01500-1030A
BOLT 10X30
€ 3.00
21
5145546030
ref: 21
CLAMP,METER CABLE
€ 2.50
22
0110710358
ref: 22
01500-1035B
BOLT,M10X1.25X
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0832211108
ref: 24
08322-01107
WASHER
€ 2.50
25
5131146400291
ref: 25
51310-46400-291
HEAD,STEERING STEM
€ 37.50
26
5621127200291
ref: 26
HOLDER,HANDLE UPR
€ 13.50
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0110708558
ref: 28
01500-08557
BOLT 8X55
€ 3.00
29
5145246030
ref: 29
51452-46040
CLIP,CABLE
€ 5.50
30
0211204128
ref: 30
02112-0412A
SCREW
€ 1.50
31
0832121048
ref: 31
08321-0104A
LOCK WASHER
€ 2.00
