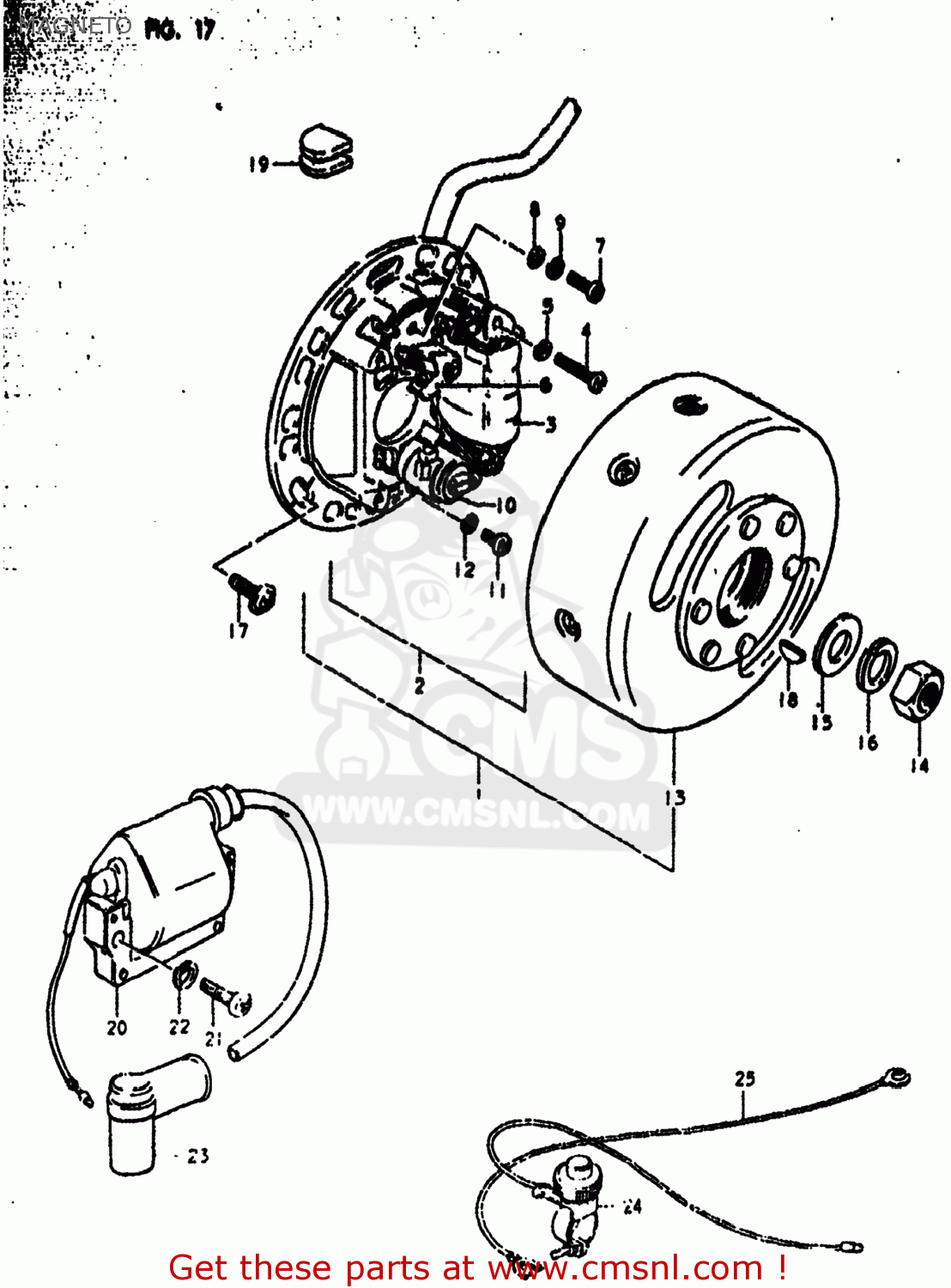

MAGNETO

ref

part #

description

quantity

1

3210046610
ref: 1

MAGNETO ASSEMBLY

€ 152.00

2

3210146610
ref: 2

STATOR ASSEMBLY

€ 152.00

3

3214048010
ref: 3

COIL,PRIMARY

€ 60.50

4

0211204308
ref: 4
09125-04023

SCREW (4X30)

€ 1.50

5

0832121048
ref: 5
08321-0104A

LOCK WASHER

€ 2.00

6

3224043012
ref: 6

POINT ASSY,CONTACT

€ 18.50

7

0912504001
ref: 7

SCREW(4X10)

€ 4.50

8

0832221048
ref: 8
08322-01047

WASHER

€ 2.00

9

0832121048
ref: 9
08321-0104A

LOCK WASHER

€ 2.00

10

3234143012
ref: 10

CONDENSER

€ 12.50

11

0211204088
ref: 11
02112-04087

SCREW

€ 1.50

12

0832121048
ref: 12
08321-0104A

LOCK WASHER

€ 2.00

13

3210246610
ref: 13
32102-43013

ROTOR ASSEMBLY

€ 133.50

14

0914010003
ref: 14
09140-10041

NUT (10MM)

€ 3.50

15

0832221108
ref: 15
08322-01107

WASHER

€ 2.50

16

0832121108
ref: 16
08321-01107

LOCK WASHER

€ 2.00

17

0913905011
ref: 17

SCREW(5X14)

€ 3.00

18

0834131039
ref: 18

KEY

€ 2.00

19

0925904001
ref: 19

PLUG

€ 3.50

20

3341043010
ref: 20
33410-43011

COIL ASSEMBLY,IGNITION

€ 89.50

21-1

0211206208
ref: 21-1
02112-06207

SCREW

€ 2.00

21-2

0211206258
ref: 21-2
02112-06257

SCREW

€ 2.00

22

0832121068
ref: 22
08321-01067

LOCK WASHER

€ 2.50

23

3351041111
ref: 23
33510-20A02

CAP,SPARK PLUG

€ 23.00

24

3782004430
ref: 24
37820-14X50

SWITCH ASSEMBLY

€ 24.50

25

3685141200
ref: 25

WIRE,ENGINE STOP EARTH

€ 6.00

all assemblies
