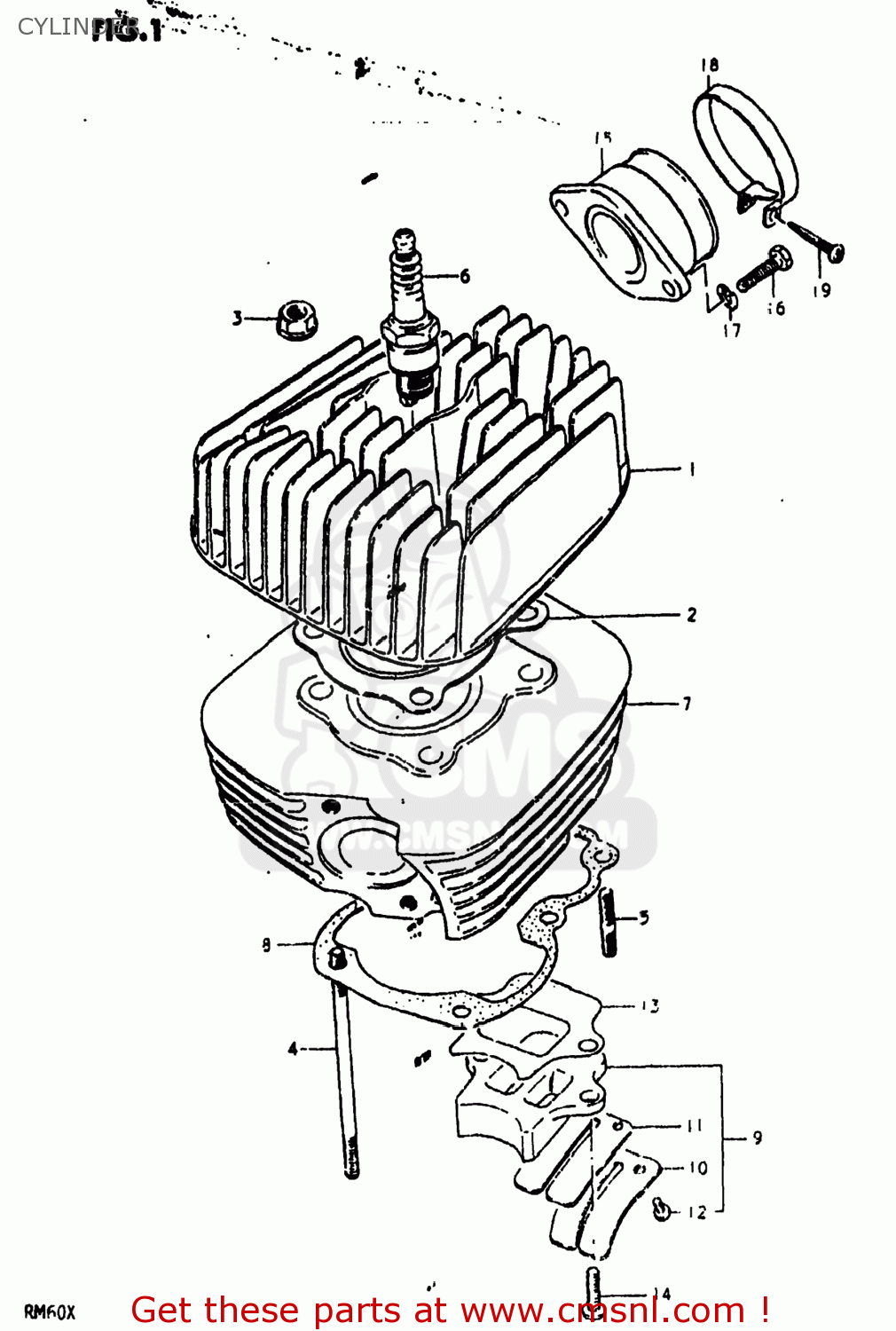

CYLINDER

ref

part #

description

quantity

1

1111146610
ref: 1

HEAD,CYLINDER

€ 57.50

2

1114146601
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 3.50

3-1

0831616088
ref: 3-1
08316-10087

NUT

€ 2.50

3-2

0831616088
ref: 3-2
08316-10087

NUT

€ 2.50

3-3

0831616068
ref: 3-3
08319-31067

NUT

€ 2.50

4

0910808066
ref: 4

STUD

€ 1.50

5-1

0142108168
ref: 5-1
01421-0816A

STUD BOLT

€ 2.00

5-2

0142106168
ref: 5-2
01421-0616A

STUD 6X16

€ 2.00

6-1

0948200151
ref: 6-1
09482-00198

PLUG,SPARK(B8HS)

€ 3.50

6-2

0948200178
ref: 6-2
09482-00058

SPARK PLUG

€ 4.00

7-1

1121046620
ref: 7-1
11210-46630

CYLINDER

€ 129.50

7-2

1121046630
ref: 7-2

CYLINDER

€ 129.50

8

1124146900
ref: 8
11241-46900-H17

GASKET,CYLINDER (MCA)

€ 8.00

9

1315046011
ref: 9

VALVE ASSY,REED

€ 72.00

10

1315223011
ref: 10

STOPPER,REED VALVE

€ 4.50

11

1315327110
ref: 11

VALVE,REED

€ 8.50

12

1315419011
ref: 12
02112-0308A

SCREW,REED VALVE

€ 1.50

13-1

1315646000
ref: 13-1
13156-46001-H17

GASKET,REED VALVE (MCA)

€ 2.50

13-2

1315646001
ref: 13-2
13156-46001-H17

GASKET,REED VALVE (MCA)

€ 2.50

14

0211206168
ref: 14
02112-06167

SCREW

€ 2.50

15

1311046630
ref: 15

PIPE,INTAKE

€ 18.50

16

0110706168
ref: 16
01500-06167

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17
08321-01067

LOCK WASHER

€ 2.50

18

0940246306
ref: 18
09402-46208

CLAMP

€ 4.50

19

0321104208
ref: 19
03211-04207

SCREW

€ 1.50
