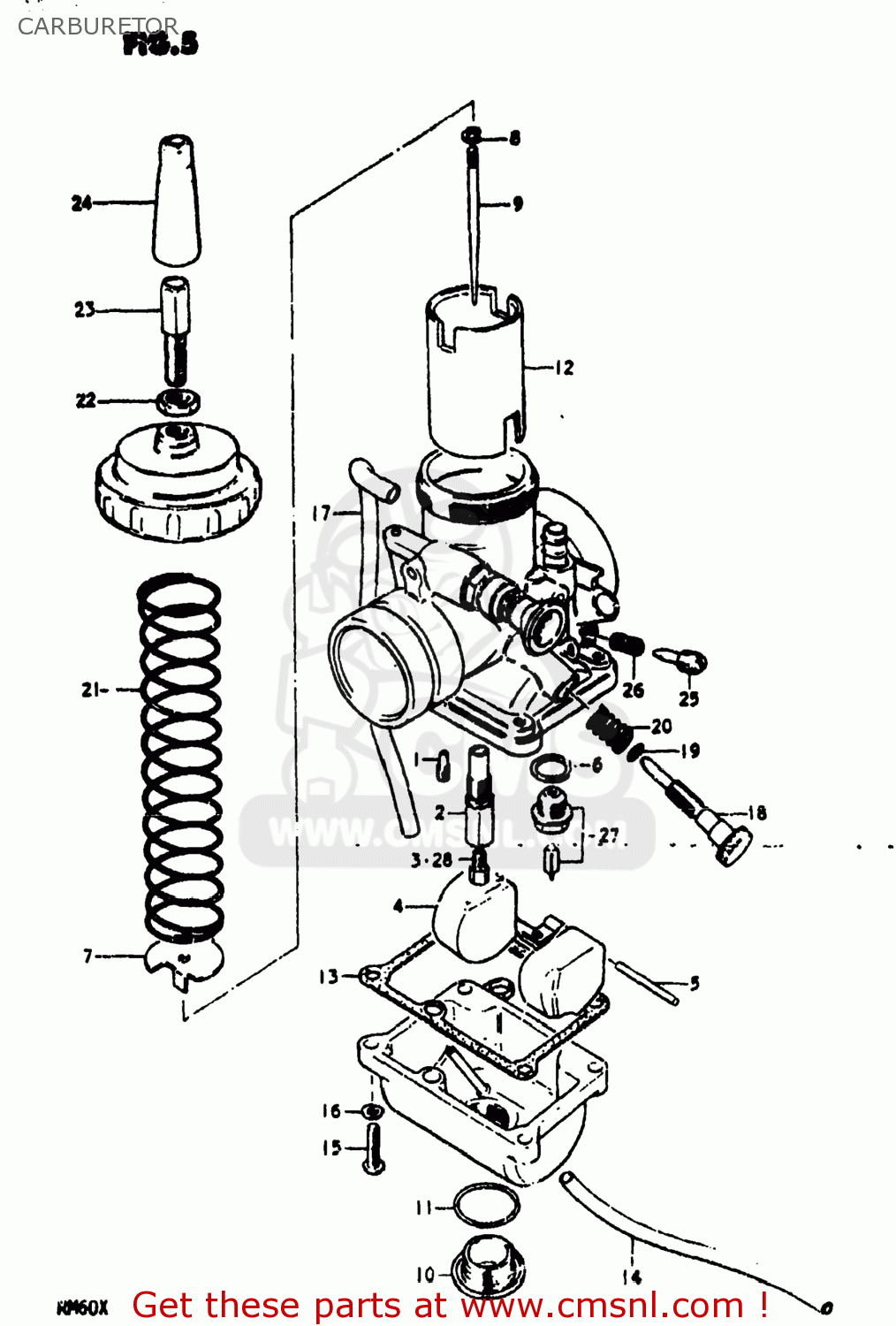

CARBURETOR

ref

part #

description

quantity

0

1320046630
ref: 0

CARBURETOR ASSEMBLY

€ 87.50

1

0949217004
ref: 1

JET,PILOT (17.5)

€ 8.00

2

0949400250
ref: 2

JET,NEEDLE

€ 10.50

3

0949123008
ref: 3
09491-23010

JET

€ 5.50

4

1325246410
ref: 4

FLOAT

€ 16.00

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1339201010
ref: 6

GASKET,NEEDLE VALVE (NAS)

€ 2.50

7

1358109210
ref: 7

STOPPER,NEEDLE CLIP

€ 5.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346620
ref: 9

NEEDLE JET

€ 0.00

10

1324732210
ref: 10

SCREW,GUIDE

€ 13.00

11

1329440110
ref: 11
09280-20003

O-RING

€ 2.50

12

1355146620
ref: 12

VALVE,THROTTLE

€ 0.00

13

1325146010
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

14

1368339110
ref: 14
09352-30503-600

HOSE

€ 8.00

15

0211204168
ref: 15
02112-0416A

SCREW

€ 1.00

16

0832121048
ref: 16
08321-0104A

LOCK WASHER

€ 2.00

17

1368430650
ref: 17
13684-40A00

HOSE

€ 7.50

18

1326746010
ref: 18
13267-36A00

ADJUSTER

€ 10.00

19

1329430010
ref: 19
13278-02340

O-RING

€ 1.50

20

1326846010
ref: 20

SPRING

€ 3.50

21

1357336110
ref: 21

SPRING,THROTTLE VALVE

€ 3.00

22

1366116600
ref: 22

NUT

€ 5.00

23

1357741612
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1368133010
ref: 24

CAP,CABLE ADJUSTER

€ 8.00

25

1326995110
ref: 25

SCREW,PILOT AIR

€ 8.50

26

1326895110
ref: 26
13268-35010

SPRING

€ 3.00

27

1337023010
ref: 27

VALVE ASSY,NEEDLE

€ 34.00

28-1

0949121013
ref: 28-1

JET, MAIN

€ 10.00

28-2

0949122003
ref: 28-2

JET,MAIN 110

€ 7.50

28-3

0949124002
ref: 28-3
09491-24014

JET

€ 8.00

28-4

0949125004
ref: 28-4
09491-25009

JET

€ 5.50

28-5

0949126003
ref: 28-5

JET,MAIN(130)

€ 9.00

all assemblies
