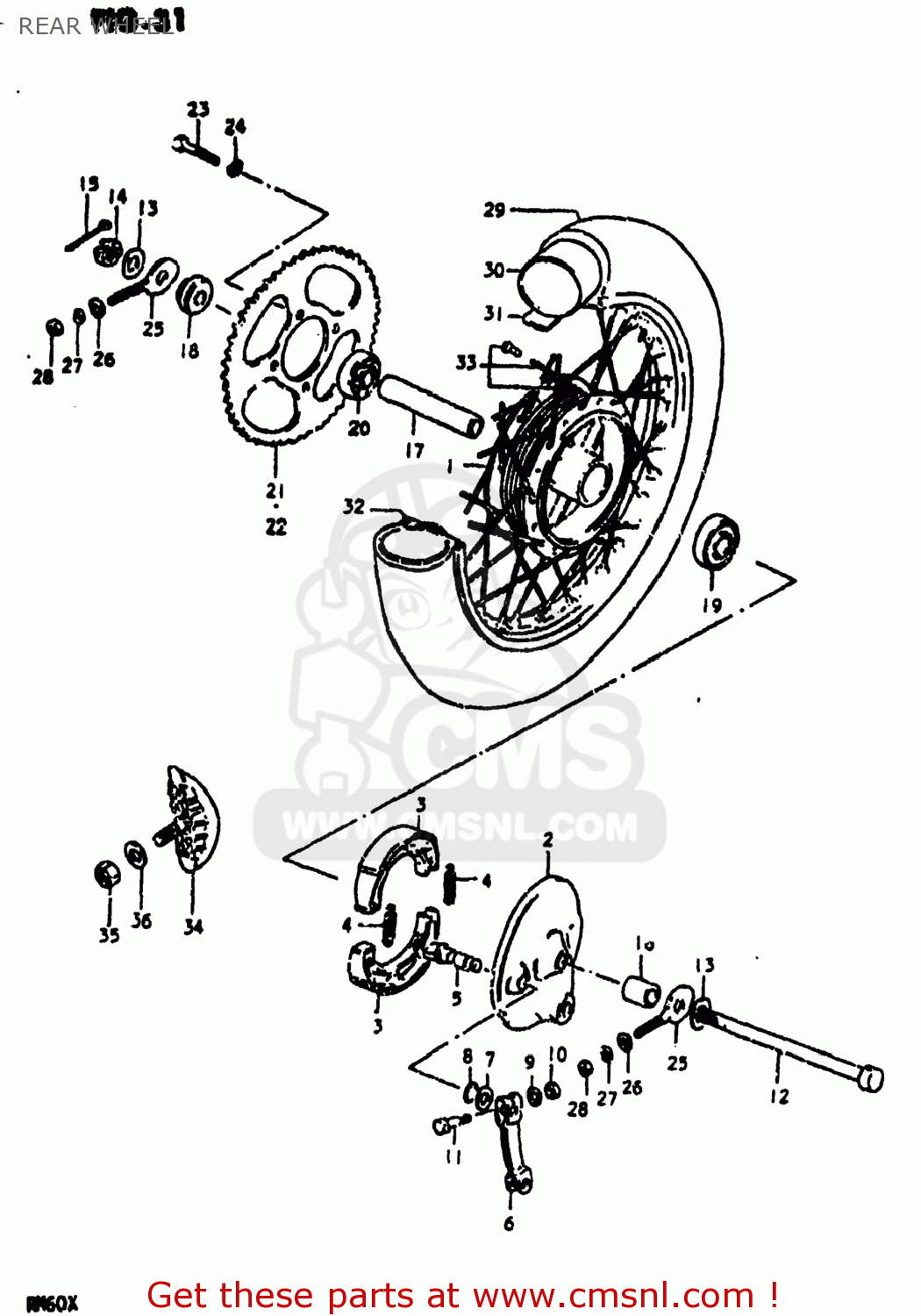

REAR WHEEL

ref

part #

description

quantity

1

6410046821
ref: 1

DRUM SET,REAR HUB

€ 82.00

2

6421046022
ref: 2
64210-46024

PANEL,REAR BRAKE ANCHOR

€ 66.00

3-1

5441035000
ref: 3-1
54400-35860

SHOE,BRAKE

€ 39.00

3-2

5441043020
ref: 3-2
54400-43880

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5
54441-29305

CAM,FRONT BRAKE

€ 13.00

6

6445146100
ref: 6
64451-46100-A05

LEVER,REAR BRAKE CAM

€ 10.00

7

0916014001
ref: 7
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831011068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

6471143000
ref: 12
64711-43001

AXLE,REAR

€ 28.50

13

0832211128
ref: 13
08322-01127

WASHER

€ 2.00

14

0831431128
ref: 14
08314-3112A

NUT 12MM

€ 2.00

15

0411130308
ref: 15
04111-3030A

COTTER PIN

€ 1.50

16

0918012077
ref: 16
09180-12077-XC0

SPACER (12.1X22X27)

€ 4.50

17

0918012078
ref: 17

SPACER(12.6X19X91)

€ 7.00

18

6475046000
ref: 18

SPACER,RR AXLE,L

€ 6.50

19

0814363017
ref: 19

BEARING

€ 14.50

20

0812363017
ref: 20

BEARING

€ 13.50

21

6451146600
ref: 21

SPROCKET,RR(NT:42)

€ 34.00

22

6451146610
ref: 22

SPROCKET,REAR (NT:44)

€ 31.00

23

0910010131
ref: 23

BOLT(10X33)

€ 3.00

24

0832131108
ref: 24
08321-01107

LOCK WASHER

€ 2.00

25

6141101002
ref: 25

ADJUSTER,CHAIN,R

€ 6.00

26

0832221068
ref: 26
08322-01067

WASHER

€ 2.00

27

0832121068
ref: 27
08321-01067

LOCK WASHER

€ 2.50

28

0831011068
ref: 28
08310-00067

NUT

€ 2.50

29

6510046420
ref: 29
65100-46470

TIRE

€ 57.00

30

6520046410
ref: 30

TUBE,INNER

€ 19.00

31

6526146410
ref: 31

PROTECTOR,INNER TUBE

€ 4.50

32

6531146430
ref: 32
65311-46420

RIM,REAR WHEEL

€ 71.00

33

6532046420
ref: 33
65320-46430

SPOKE SET,REAR WHEEL

€ 21.50

34

6527046910
ref: 34
65270-43D00

STOPPER,BEAD

€ 30.50

35

0831012088
ref: 35
08310-00087

NUT

€ 2.00

36

0832211088
ref: 36
08322-01087

WASHER

€ 2.00

all assemblies
