FRONT BRAKE
RM65 2003 (K3) USA (E03)

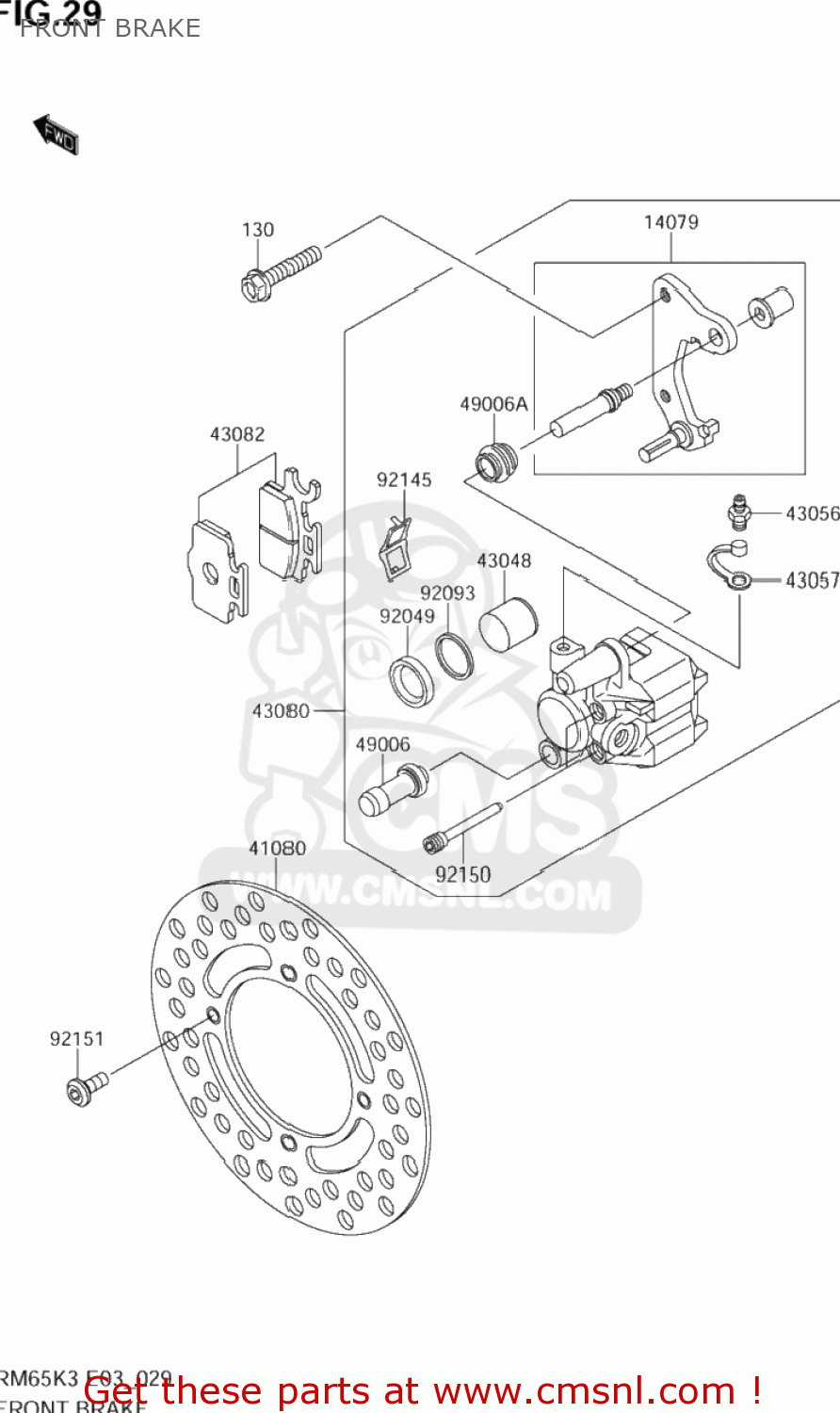

Front brake diagram RM65 2003 (K3) USA (E03)
FRONT BRAKE RM65 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
130
KK130P0840
ref: 130
BOLT FLANGED
€ 1.50
14079
K140791130
ref: 14079
HOLDER ASSY,FR
€ 84.00
41080
K410801470
ref: 41080
DISC
€ 128.50
43048
K430481089
ref: 43048
PISTON-CALIPER
€ 24.50
43056
K430561056
ref: 43056
BREATHER-BRAKE
€ 17.50
43057
K430571001
ref: 43057
CAP-BREATHER
€ 4.50
43080
K430805131
ref: 43080
CALIPER SUB ASSY,FR
€ 134.00
43082
K430821242
ref: 43082
K4308-20096
PAD ASSY BRAKE
€ 41.50
49006
K490061088
ref: 49006
BOOT,CALIPER
€ 8.50
49006A
K490061242
ref: 49006A
BOOT,CALIPER
€ 5.00
92049
K920491331
ref: 92049
SEAL-OIL,PISTON
€ 6.00
92093
K920931272
ref: 92093
SEAL,PISTON
€ 11.50
92145
K921451269
ref: 92145
SPRING,PAD
€ 7.50
92150
K921501144
ref: 92150
BOLT
€ 8.50
92151
K921511799
ref: 92151
BOLT,DISC PLATE,6MM
€ 3.50
