REAR BRAKE
RM65 2003 (K3) USA (E03)

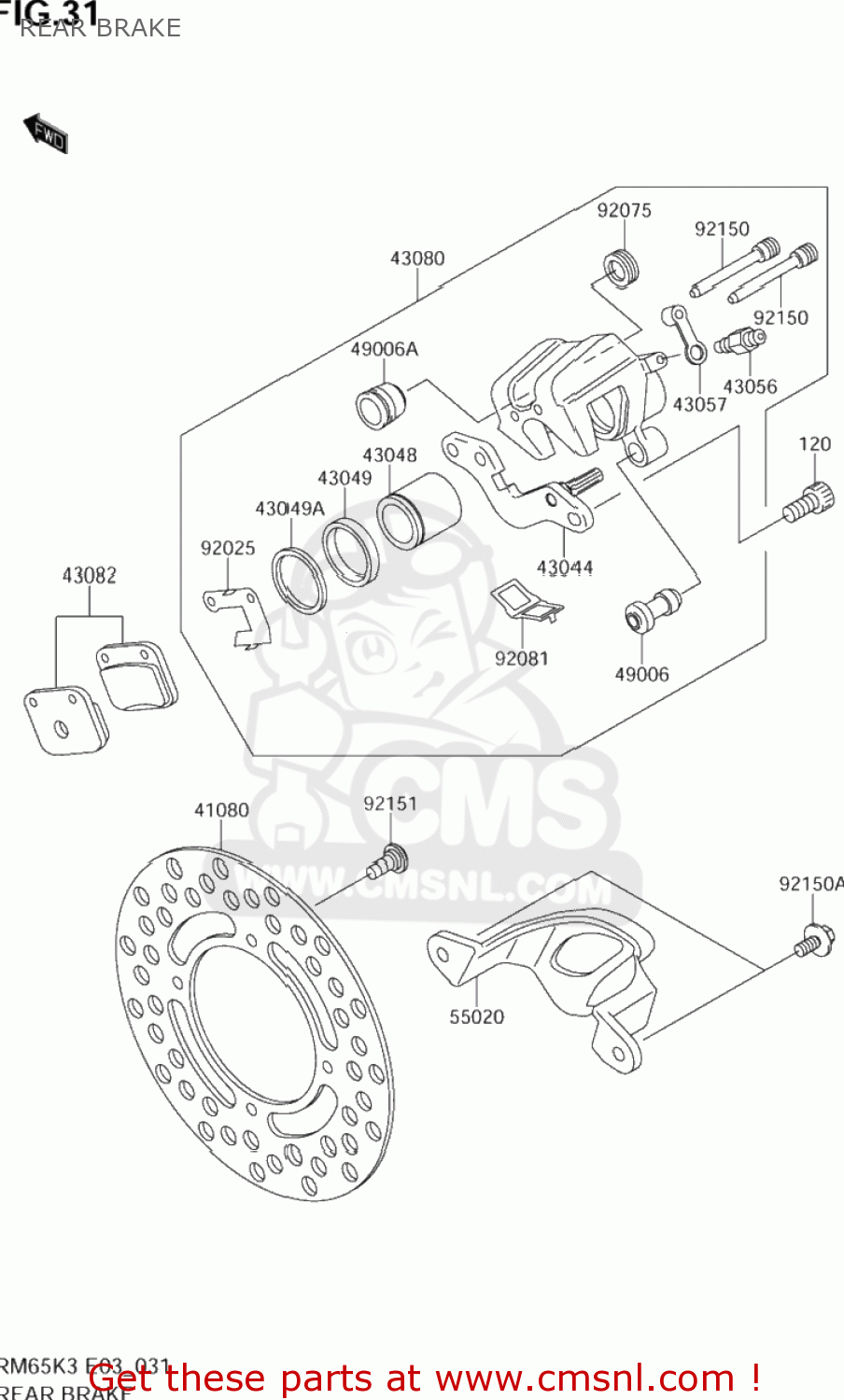

Rear brake diagram RM65 2003 (K3) USA (E03)
REAR BRAKE RM65 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
120
KK120P0816
ref: 120
BOLT-SOCKET
€ 1.50
41080
K410801470
ref: 41080
DISC
€ 128.50
43044
K430441076
ref: 43044
HOLDER-COMP-CALIPER,RR
€ 81.50
43048
K430481090
ref: 43048
PISTON-CALIPER
€ 28.50
43049
K430491060
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 14.50
43049A
K430491061
ref: 43049A
PACKING,PISTON SEAL (NAS)
€ 8.00
43056
K430561056
ref: 43056
BREATHER-BRAKE
€ 17.50
43057
K430571001
ref: 43057
CAP-BREATHER
€ 4.50
43080
K430805132
ref: 43080
CALIPER SUB ASSY,RR
€ 110.00
43082
K430821241
ref: 43082
K4308-20043
PAD ASSY BRAKE
€ 42.50
49006
K490061088
ref: 49006
BOOT,CALIPER
€ 8.50
49006A
K490061089
ref: 49006A
BOOT,CALIPER
€ 5.00
55020
KK550201707RZ
ref: 55020
GUARD,REAR CALIPER
€ 13.00
92025
K920251817
ref: 92025
SHIM,PAD
€ 5.00
92075
K920751414
ref: 92075
DAMPER
€ 3.50
92081
K920811502
ref: 92081
SPRING,PAD
€ 4.50
92150
K921501144
ref: 92150
BOLT
€ 8.50
92150A
K921501505
ref: 92150A
BOLT,6X14
€ 4.00
92151
K921511799
ref: 92151
BOLT,DISC PLATE,6MM
€ 3.50
