FRONT FORK (RM80B)

RM80 1977 (B) USA (E03)

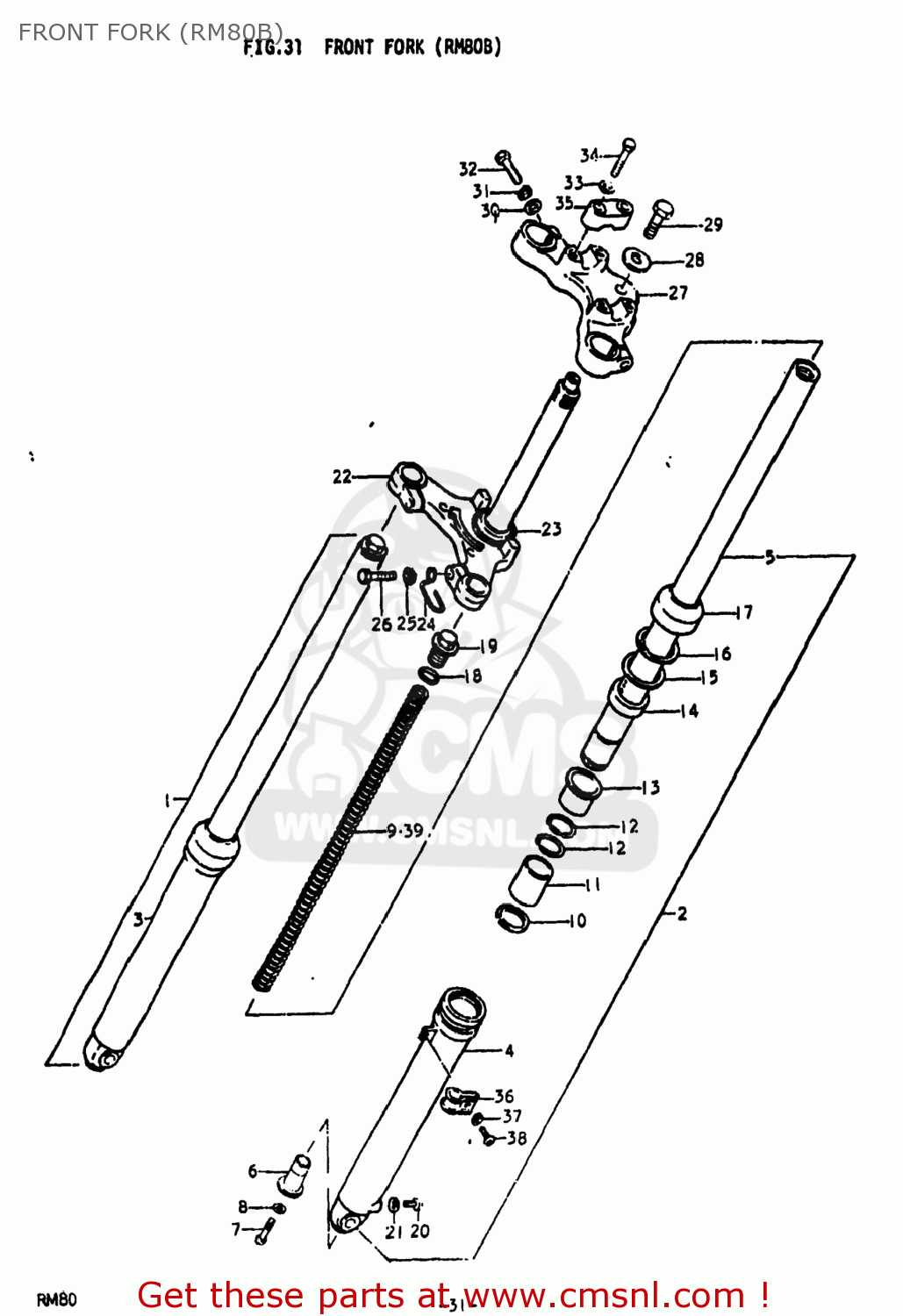

Front fork (rm80b) diagram RM80 1977 (B) USA (E03)

FRONT FORK (RM80B) RM80 1977 (B) USA (E03)
FRONT FORK (RM80B) RM80 1977 (B) USA (E03)
FRONT FORK (RM80B) RM80 1977 (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
0
5110046030
ref: 0
DAMPER SET
€ 0.00
1
5110346030
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 85.00
2
5110446030
ref: 2
DAMPER ASSEMBLY,LEFT
€ 0.00
3
5113046030
ref: 3
TUBE,OUTER,RIGHT
€ 37.00
4
5114046030
ref: 4
TUBE,FORK,LEFT,OUTER
€ 38.00
5
5111146030
ref: 5
TUBE,FORK,INNER
€ 46.00
6
5119026130
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
0211206258
ref: 7
02112-06257
SCREW
€ 2.00
8
5114826130
ref: 8
GASKET (NAS)
5114826130
€ 1.50
9
5117146030
ref: 9
SPRING
€ 17.50
10
5111926130
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
11
5111226130
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 13.50
12
5111626130
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
13
5115226130
ref: 13
BUSHING,GUIDE
€ 7.50
14
5115326130
ref: 14
51153-13200
OIL SEAL,FRONT FORK
5115326130
€ 14.50
15
5115826130
ref: 15
WASHER
€ 2.00
16
0833121409
ref: 16
08331-41406
CIRCLIP
€ 4.00
17
5157126130
ref: 17
BOOT
5157126130
€ 8.00
18
5118146030
ref: 18
09280-18004
O-RING,FORK INNER TUBE
€ 5.50
19
5135146030
ref: 19
CAP,FORK
€ 6.00
20
0211104067
ref: 20
02112-0406B
SCREW
0211104067
€ 2.00
21
5118333030
ref: 21
GASKET (NAS)
5118333030
€ 6.50
22
5141046030
ref: 22
STEM,STEERING
€ 55.00
23
5162133001
ref: 23
RACE,STEERING OUTER LWR
5162133001
€ 10.00
24
5145546030
ref: 24
CLAMP,METER CABLE
5145546030
€ 2.50
25
0832121108
ref: 25
08321-01107
LOCK WASHER
0832121108
€ 2.00
26
0110710308
ref: 26
01500-1030A
BOLT 10X30
€ 3.00
27
5131146030
ref: 27
HEAD,STEERING STEM
€ 44.50
28
5135646030
ref: 28
WASHER(10.5X30X2.3)
5135646030
€ 5.00
29
5135246030
ref: 29
BOLT
5135246030
€ 6.00
30
0832221088
ref: 30
08322-01087
WASHER
0832221088
€ 2.00
31
0832121088
ref: 31
08321-01087
LOCK WASHER
0832121088
€ 2.00
32
0110708358
ref: 32
01500-0835B
BOLT
0110708358
€ 3.50
33
0832121088
ref: 33
08321-01087
LOCK WASHER
0832121088
€ 2.00
34
0110708358
ref: 34
01500-0835B
BOLT
0110708358
€ 3.50
35
5621127430
ref: 35
HOLDER,HANDLEBAR
€ 12.50
36
5145246030
ref: 36
51452-46040
CLIP,CABLE
€ 5.50
37
0832121058
ref: 37
08321-0105A
LOCK WASHER
0832121058
€ 2.00
38
0211204128
ref: 38
02112-0412A
SCREW
0211204128
€ 1.50
39
5117146730
ref: 39
SPRING
€ 8.50
