FRONT FORK (RM80C)
RM80 1977 (B) USA (E03)

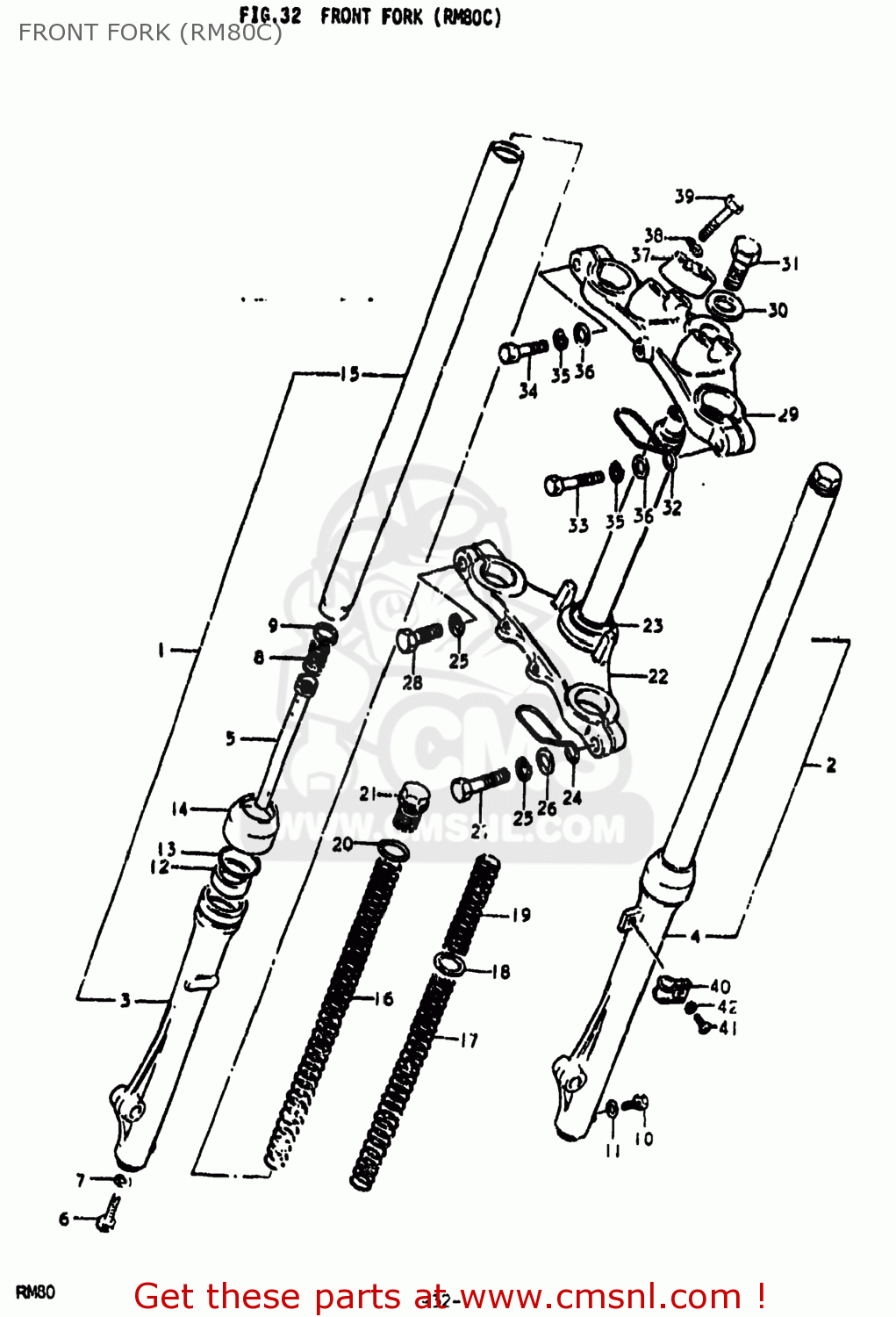

Front fork (rm80c) diagram RM80 1977 (B) USA (E03)
FRONT FORK (RM80C) RM80 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110046040291
ref: 0-1
51100-46041-291
DAMPER SET
€ 240.00
0-2
5110046041291
ref: 0-2
DAMPER SET
€ 240.00
1
5110346040
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 110.00
2
5110446040
ref: 2
DAMPER ASSEMBLY,LEFT
€ 87.50
3
5113146040
ref: 3
TUBE,OUTER,RIGHT
€ 34.50
4
5114146040
ref: 4
TUBE,OUTER,LEFT
€ 37.00
5
5114646040
ref: 5
CYLINDER,FRONT FORK
€ 12.00
6
5114731030
ref: 6
51147-48130
BOLT
€ 3.50
7
5114831030
ref: 7
51148-36011
GASKET (NAS)
€ 4.00
8
5117746100
ref: 8
SPRING,REBOUND
€ 3.50
9
5119646100
ref: 9
RING,PISTON
€ 6.00
10
0111106087
ref: 10
09100-06011
BOLT(6X8)
€ 2.00
11
5118331030
ref: 11
GASKET,DRAIN,PLUG (NAS)
€ 4.00
12
5115346040
ref: 12
51153-13200
OIL SEAL,FRONT FORK
€ 14.50
13
5115648130
ref: 13
RING,OIL SEAL STOPPER
€ 3.50
14
5157146040
ref: 14
51571-13200
BOOT
€ 9.00
15
5111046040
ref: 15
TUBE,FORK,INNER
€ 51.50
16
5117146040
ref: 16
SPRING
€ 7.50
17
5117146050
ref: 17
SPRING
€ 8.50
18
5119246100
ref: 18
JOINT,SPRING
€ 2.50
19
5118446040
ref: 19
SPRING,FRONT FORK
€ 3.50
20
5118146030
ref: 20
09280-18004
O-RING,FORK INNER TUBE
€ 5.50
21
5135146030
ref: 21
CAP,FORK
€ 6.00
22
5141046040
ref: 22
STEM,STEERING
€ 43.50
23
5162133001
ref: 23
RACE,STEERING OUTER LWR
€ 10.00
24
5145546030
ref: 24
CLAMP,METER CABLE
€ 2.50
25
0832121108
ref: 25
08321-01107
LOCK WASHER
€ 2.00
26
0832221108
ref: 26
08322-01107
WASHER
€ 2.50
27
5145127431
ref: 27
BOLT
€ 4.50
28
0110710358
ref: 28
01500-1035B
BOLT,M10X1.25X
€ 2.50
29
5131146040
ref: 29
HEAD,STEERING STEM
€ 42.00
30
5135646030
ref: 30
WASHER(10.5X30X2.3)
€ 5.00
31
5135246030
ref: 31
BOLT
€ 6.00
32
5145546030
ref: 32
CLAMP,METER CABLE
€ 2.50
33
0110708408
ref: 33
01500-0840A
BOLT 8X40
€ 3.00
34
0110708358
ref: 34
01500-0835B
BOLT
€ 3.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0832221088
ref: 36
08322-01087
WASHER
€ 2.00
37
5621127430
ref: 37
HOLDER,HANDLEBAR
€ 12.50
38
0832121088
ref: 38
08321-01087
LOCK WASHER
€ 2.00
39
0110708358
ref: 39
01500-0835B
BOLT
€ 3.50
40
5145246040
ref: 40
CLIP,FR BRAKE CABLE
€ 5.50
41
0211204168
ref: 41
02112-0416A
SCREW
€ 1.00
42
0832121048
ref: 42
08321-0104A
LOCK WASHER
€ 2.00
