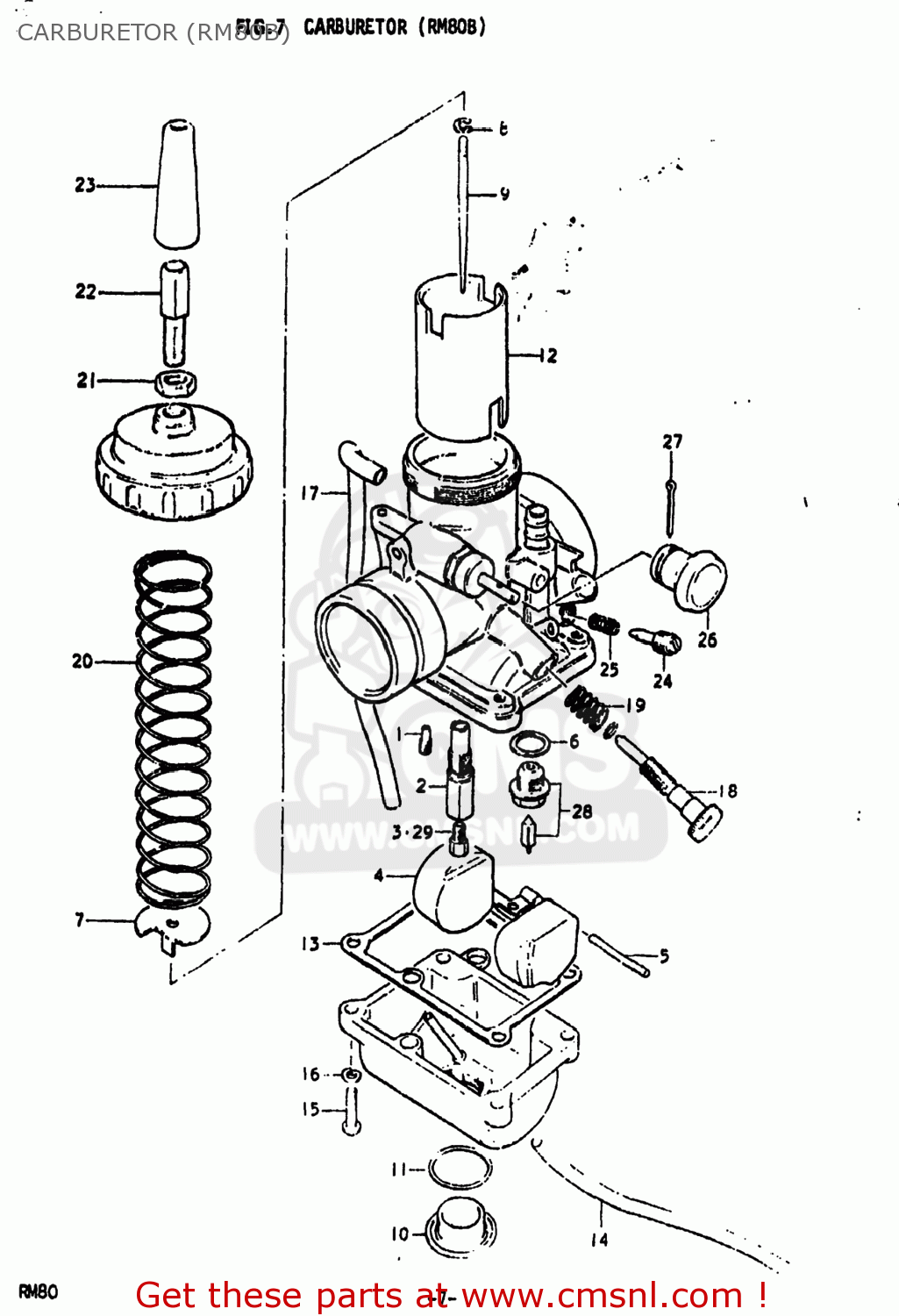

CARBURETOR (RM80B)

ref

part #

description

quantity

0

1320046010
ref: 0

CARBURETOR ASSEMBLY

€ 86.00

1

0949240006
ref: 1

JET

€ 5.50

2

0949400195
ref: 2

JET,NEEDLE

€ 5.50

3

0949121013
ref: 3

JET, MAIN

€ 10.00

4

1325246010
ref: 4

FLOAT

€ 20.00

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1339218110
ref: 6
13392-58600

GASKET (NAS)

€ 2.00

7

1358128010
ref: 7

SEAT,THROTTLE VALVE SPRING

€ 6.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338333010
ref: 9

NEEDLE,JET

€ 18.00

10

1324732210
ref: 10

SCREW,GUIDE

€ 13.00

11

1329440110
ref: 11
09280-20003

O-RING

€ 2.50

12

1355146010
ref: 12

VALVE,THROTTLE

€ 15.50

13

1325146010
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

14

1368430010
ref: 14
13684-40A00

HOSE

€ 7.50

15

0211204168
ref: 15
02112-0416A

SCREW

€ 1.00

16

0832121048
ref: 16
08321-0104A

LOCK WASHER

€ 2.00

17

1368446010
ref: 17
13684-40A00

HOSE

€ 7.50

18

1326746010
ref: 18
13267-36A00

ADJUSTER

€ 10.00

19

1326846010
ref: 19

SPRING

€ 3.50

20

1357397010
ref: 20
13573-30900

SPRING, THROTTLE VALVE

€ 6.00

21

1366116600
ref: 21

NUT

€ 5.00

22

1357741612
ref: 22

ADJUSTER,CABLE

€ 8.00

23

1368133010
ref: 23

CAP,CABLE ADJUSTER

€ 8.00

24

1326946010
ref: 24
13269-95110

SCREW,PILOT AIR

€ 8.50

25

1326835010
ref: 25

SPRING

€ 3.00

26

1341325710
ref: 26

LEVER

€ 8.50

27

0411116158
ref: 27
04111-1620A

COTTER PIN

€ 2.00

28

1337027310
ref: 28

VALVE ASSY,NEEDLE

€ 37.50

29-1

0949120002
ref: 29-1

JET,MAIN(100)

€ 7.00

29-2

0949122003
ref: 29-2

JET,MAIN 110

€ 7.50

29-3

0949123008
ref: 29-3
09491-23010

JET

€ 5.50

29-4

0949124002
ref: 29-4
09491-24014

JET

€ 8.00

29-5

0949125004
ref: 29-5
09491-25009

JET

€ 5.50

all assemblies
