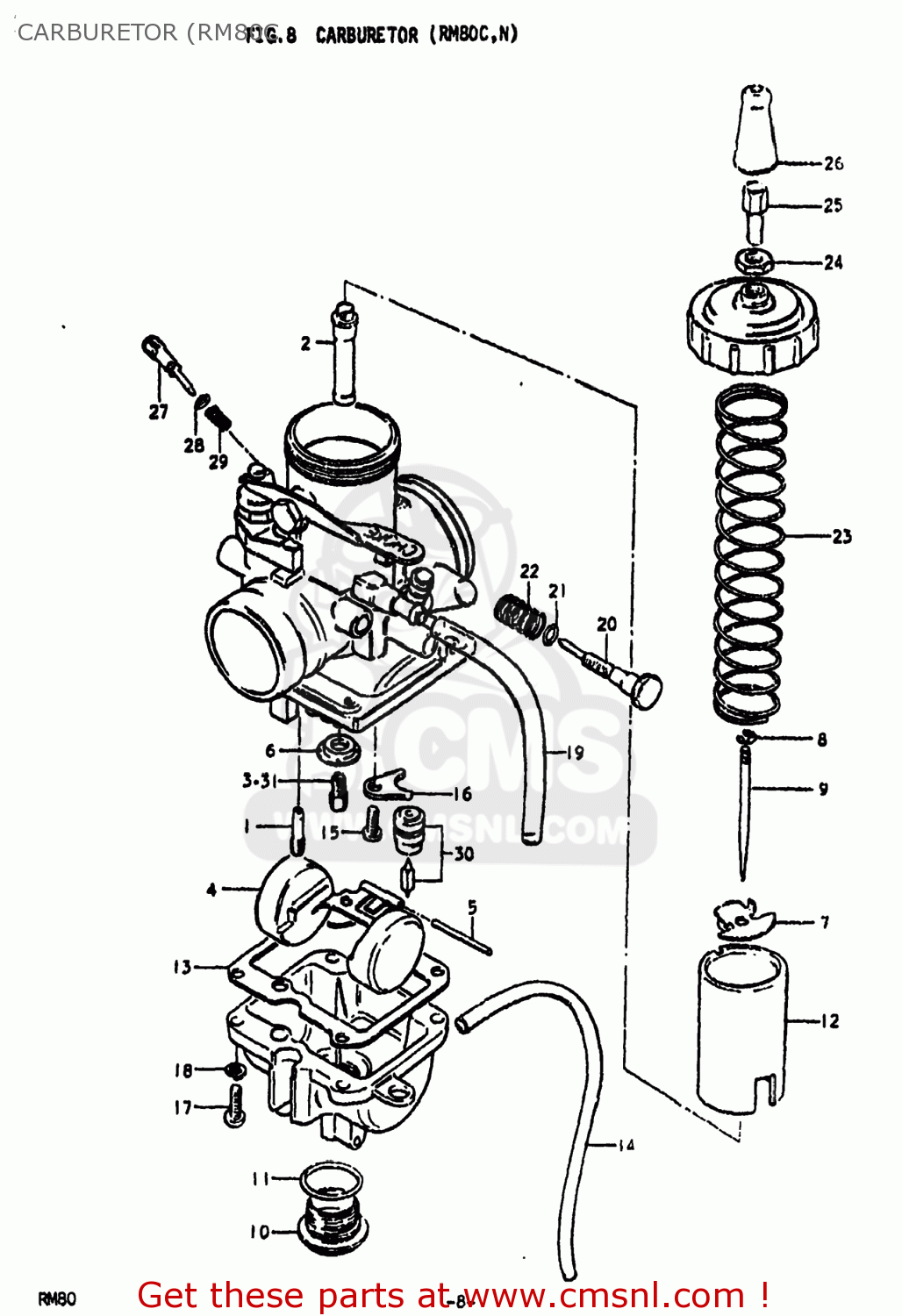

CARBURETOR (RM80C

ref

part #

description

quantity

0-1

1320046900
ref: 0-1
13200-46901

CARBURETOR ASSEMBLY

€ 171.00

0-2

1320046901
ref: 0-2

CARBURETOR ASSEMBLY

€ 171.00

1

0949245009
ref: 1

JET,PILOT(45)

€ 8.00

2-1

0949400218
ref: 2-1

JET,NEEDLE

€ 0.00

2-2

0949400229
ref: 2-2

JET,NEEDLE

€ 13.00

3-1

0949130003
ref: 3-1
09491-30017

JET

€ 12.00

3-2

0949132002
ref: 3-2

JET,MAIN(160)

€ 6.50

4

1325228310
ref: 4

FLOAT

€ 20.50

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1333128710
ref: 6

RING

€ 8.50

7

1358129500
ref: 7

PLATE,THROTTLE VALVE

€ 4.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346900
ref: 9

NEEDLE,JET(5DP39-4)

€ 11.50

10

1324746900
ref: 10

PLUG

€ 12.50

11

1324629630
ref: 11

O RING

€ 5.00

12

1355146900
ref: 12

VALVE,THROTTLE

€ 42.00

13

1325130520
ref: 13

GASKET,FLOAT CAHMBER (NAS)

€ 9.50

14-1

1368616600
ref: 14-1
09351-35653-600

HOSE

€ 5.50

14-2

1368446900
ref: 14-2
09352-30503-600

HOSE

€ 8.00

15

0211204088
ref: 15
02112-04087

SCREW

€ 1.50

16

1337339110
ref: 16

PLATE

€ 6.50

17

0211204168
ref: 17
02112-0416A

SCREW

€ 1.00

18

0832121048
ref: 18
08321-0104A

LOCK WASHER

€ 2.00

19-1

1368430650
ref: 19-1
13684-40A00

HOSE

€ 7.50

19-2

1368446910
ref: 19-2
09351-35653-600

HOSE

€ 5.50

20

1326746010
ref: 20
13267-36A00

ADJUSTER

€ 10.00

21

1329430010
ref: 21
13278-02340

O-RING

€ 1.50

22

1326846010
ref: 22

SPRING

€ 3.50

23-1

1357346900
ref: 23-1

SPRING,THROTTLE VALVE

€ 3.50

23-2

1357397010
ref: 23-2
13573-30900

SPRING, THROTTLE VALVE

€ 6.00

24

1366116600
ref: 24

NUT

€ 5.00

25-1

1357703010
ref: 25-1
13577-48110

ADJUSTER,CABLE

€ 8.00

25-2

1357741612
ref: 25-2

ADJUSTER,CABLE

€ 8.00

26-1

1368116601
ref: 26-1

CAP

€ 7.00

26-2

1368133010
ref: 26-2

CAP,CABLE ADJUSTER

€ 8.00

27

1326915011
ref: 27

SCREW,PILOT AIR ADJUSTING

€ 12.50

28

1329533010
ref: 28

O RING

€ 4.50

29

1326835010
ref: 29

SPRING

€ 3.00

30-1

1337046900
ref: 30-1

VALVE ASSY,NEEDLE

€ 54.50

30-2

1337029500
ref: 30-2
13370-02B50

VALVE ASSEMBLY,NEEDLE

€ 54.50

31-1

0949129002
ref: 31-1

JET,MAIN(145)

€ 8.00

31-2

0949132002
ref: 31-2

JET,MAIN(160)

€ 6.50

31-3

0949134002
ref: 31-3

JET,MAIN(170)

€ 7.00

31-4

0949136003
ref: 31-4
09491-36006

JET

€ 15.00

31-5

0949138003
ref: 31-5
09491-38009

JET

€ 10.00

all assemblies
