GEAR SHIFTING
RM80 1984 (E) USA (E03)

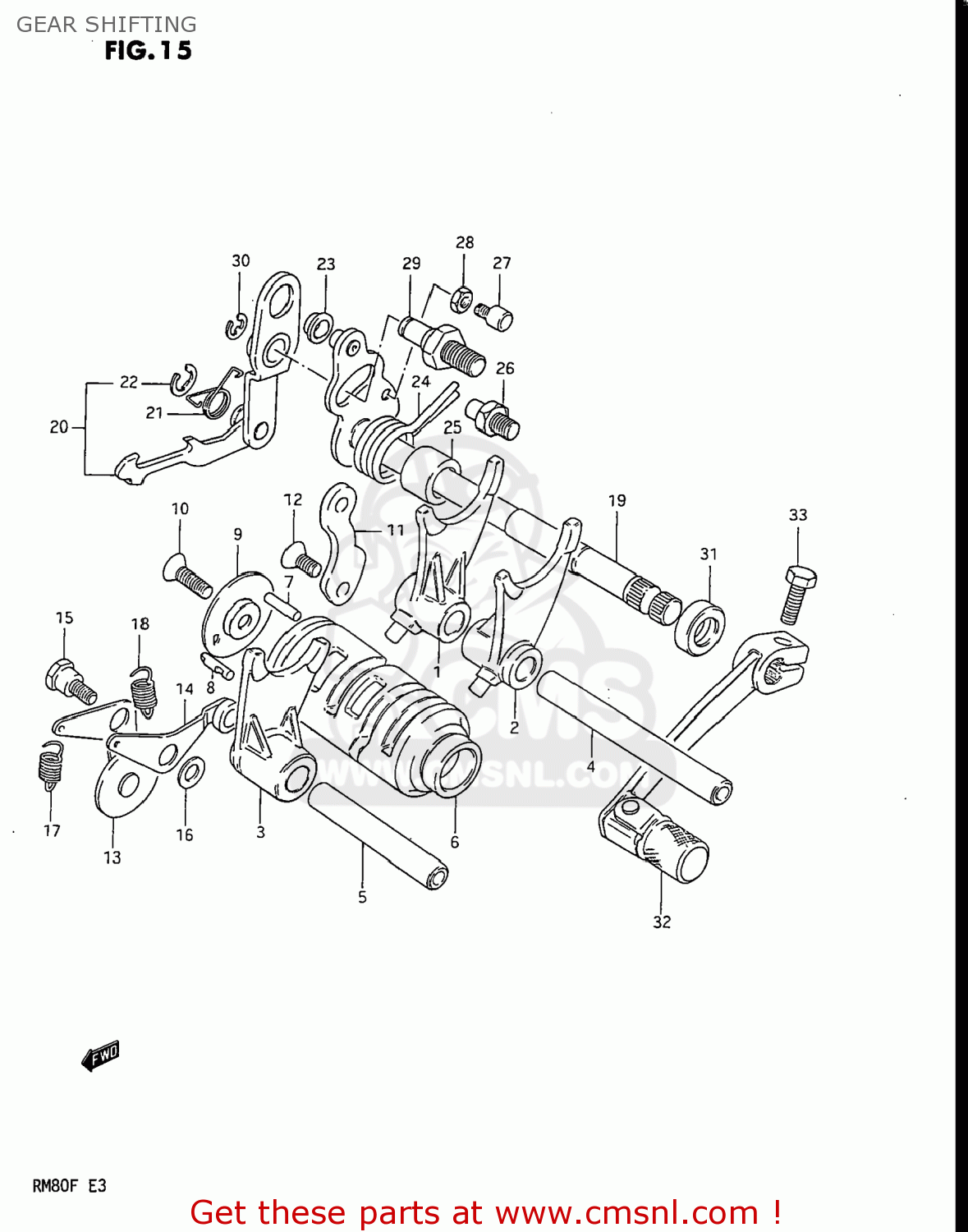

Gear shifting diagram RM80 1984 (E) USA (E03)
GEAR SHIFTING RM80 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521120400
ref: 1
FORK,GEAR SHIFT NO.1
€ 16.00
2
2522146901
ref: 2
FORK,GEAR SHIFT NO.2
€ 19.50
3
2523146001
ref: 3
FORK,GEAR SHIFT NO.2
€ 29.50
4
2541114330
ref: 4
25411-14331
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542114300
ref: 5
25421-14301
SHAFT,GEAR SHIFT FORK
€ 19.00
6
2531120900
ref: 6
CAM,GEAR SHIFT
€ 70.50
7
0926104009
ref: 7
PIN(4X15.8)
€ 1.50
8
0920904015
ref: 8
PIN
€ 2.50
9
2532246900
ref: 9
RETAINER,GEAR SHIFT CAM
€ 0.00
10
0212206208
ref: 10
02122-0620A
SCREW
€ 2.00
11
2534146900
ref: 11
GUIDE,GEAR SHIFTING CABLE
€ 7.00
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
2535026400
ref: 13
STOPPER,SHIFT CAM
€ 16.00
14
2539026400
ref: 14
STOPPER,GEAR SHIFT CAM
€ 6.50
15
0911106020
ref: 15
BOLT(6X18.3)
€ 2.00
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
0944307014
ref: 17
SPRING
€ 2.00
18
0944310017
ref: 18
SPRING
€ 2.00
19
2551020400
ref: 19
SHAFT,GEAR SHIFT
€ 35.50
20
2554046900
ref: 20
PAWL,GEAR SHIFT
€ 15.50
21
0944813006
ref: 21
SPRING
€ 2.00
22
0833211078
ref: 22
08332-1107A
E RING
€ 2.00
23
0918007014
ref: 23
SPACER(7X10X5)
€ 4.00
24
0944426014
ref: 24
SPRING
€ 3.50
25
0918012083
ref: 25
SPACER(12X20X15.3)
€ 2.50
26
2567101000
ref: 26
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
27
2567346000
ref: 27
BOLT,GEAR SHAFT RETURN SPR SET
€ 4.00
28
0831022068
ref: 28
08310-00067
NUT 6MM
€ 2.50
29
2567246001
ref: 29
25672-46002
STOPPER,GEAR SHIFT CAM
€ 4.50
30
0833211068
ref: 30
08332-1106A
E RING 6MM
€ 2.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
€ 7.00
32-1
2560020400
ref: 32-1
25600-05221
LEVER ASSEMBLY,GEAR SHIFTING
€ 143.50
32-2
2560020410
ref: 32-2
25600-05221
LEVER ASSEMBLY,GEAR SHIFTING
€ 143.50
33
0910006091
ref: 33
01500-06207
BOLT
€ 2.00
