REAR WHEEL (MODEL E/F)
RM80 1984 (E) USA (E03)

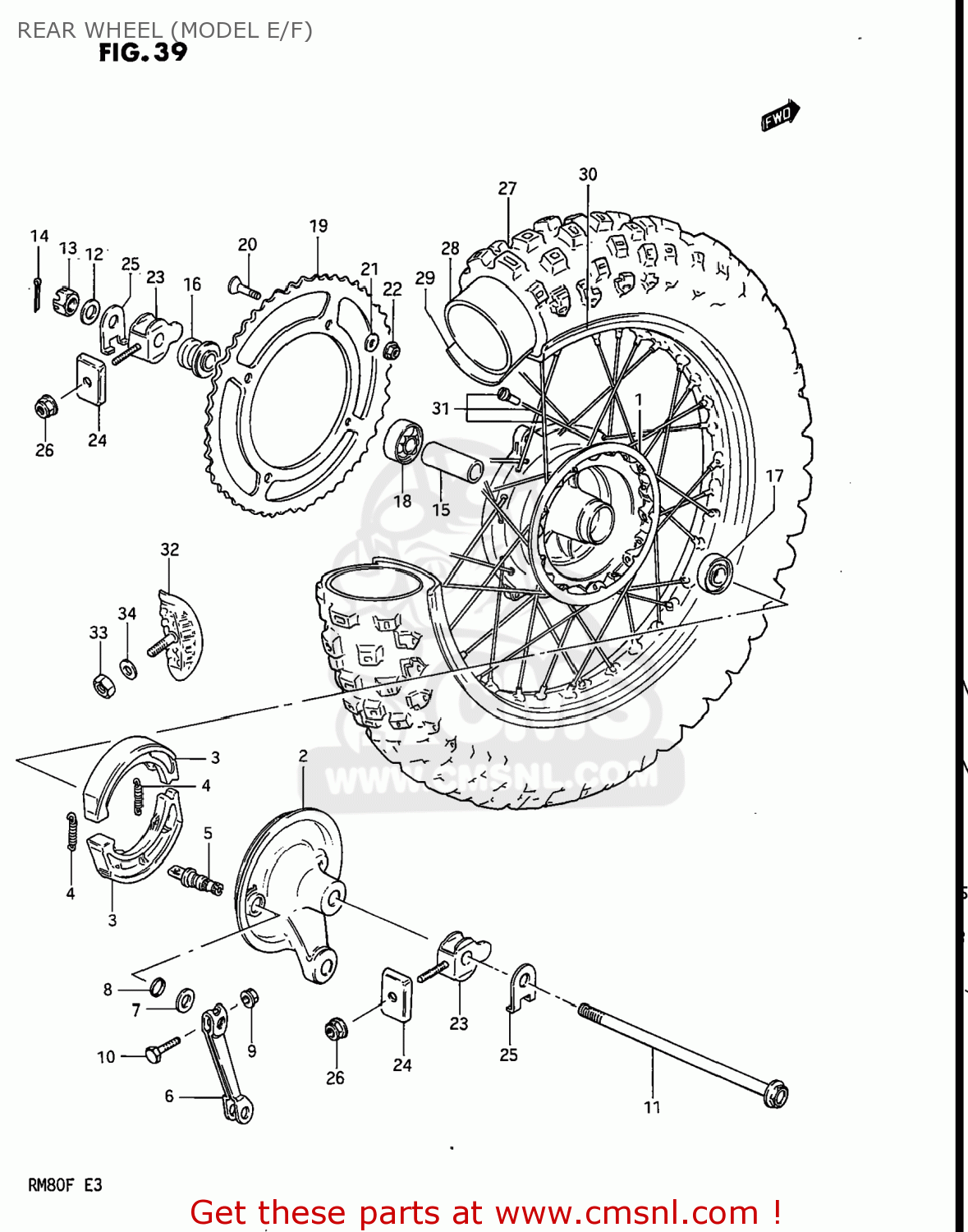

Rear wheel (model e/f) diagram RM80 1984 (E) USA (E03)
REAR WHEEL (MODEL E/F) RM80 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411020412
ref: 1
64110-02B10
HUB,REAR
€ 190.50
2
6421020411
ref: 2
64210-02B10
PANEL,REAR HUB
€ 69.50
3
6441020402
ref: 3
64400-02810
SHOE,BRAKE
€ 8.50
4
0944307025
ref: 4
SPRING(L:35.8)
€ 2.50
5
5444120900
ref: 5
CAM,BRAKE
€ 9.50
6
6445120400
ref: 6
LEVER,RR BRAKE CAM
€ 234.50
7
0916012011
ref: 7
WASHER(12.5X20X1)
€ 1.50
8
0928012001
ref: 8
O RING(D:2.5,ID:11.4)
€ 2.50
9
0915906017
ref: 9
08319-31067
NUT
€ 2.50
10
0151706308
ref: 10
01550-06307
BOLT
€ 2.00
11
6471120521
ref: 11
AXLE,REAR
€ 23.00
12
0916014033
ref: 12
09160-14062
WASHER
€ 3.00
13
0831431148
ref: 13
08314-3114A
NUT
€ 2.50
14
0411130308
ref: 14
04111-3030A
COTTER PIN
€ 1.50
15
0918015069
ref: 15
SPACER(15.3X21.7X77)
€ 13.00
16
6474020521
ref: 16
SPACER,L
€ 16.00
17
0812360027
ref: 17
BEARING
€ 16.00
18
0812362027
ref: 18
BEARING
€ 14.50
19-1
6451120520
ref: 19-1
SPROCKET,REAR
€ 174.50
19-2
6451120530
ref: 19-2
SPROCKET,REAR
€ 0.00
19-3
6451120540
ref: 19-3
SPROCKET,REAR (NT:45-428)
€ 0.00
19-4
6451120550
ref: 19-4
SPROCKET,RR(NT:47)
€ 82.00
19-5
6451120920
ref: 19-5
SPROCKET,RR(NT:48)
€ 68.50
19-6
6451120980
ref: 19-6
SPROCKET,RR(NT:46)
€ 174.50
20
0912008004
ref: 20
SCREW(8X33.5)
€ 3.00
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0831931088
ref: 22
08319-3108A
NUT
€ 2.50
23
6141005250
ref: 23
ADJUSTER,CHAIN
€ 9.50
24
6142126502
ref: 24
ADJUSTER,CHAIN
€ 4.00
25
6471205251
ref: 25
64712-36A10
WASHER
€ 3.50
26
0831931088
ref: 26
08319-3108A
NUT
€ 2.50
27
6510020400
ref: 27
65110-02B40
TIRE
€ 52.50
28
6520020300
ref: 28
65200-02B40
TUBE ASSEMBLY,WHEEL,INNER
€ 26.00
29
5526124010
ref: 29
PROTECTOR,INNER TUBE
€ 9.50
30-1
6531120410
ref: 30-1
RIM,REAR WHEEL (1.60X14)
€ 198.50
30-2
6531120930
ref: 30-2
RIM,REAR WHEEL
€ 108.50
31
6532020410
ref: 31
SPOKE SET
€ 29.50
32
6527046910
ref: 32
65270-43D00
STOPPER,BEAD
€ 30.50
33
0831012088
ref: 33
08310-00087
NUT
€ 2.00
34
0832211088
ref: 34
08322-01087
WASHER
€ 2.00
