CUSHION LEVER (MODEL L/M/N/P/R/S)

RM80 1988 (J) USA (E03)

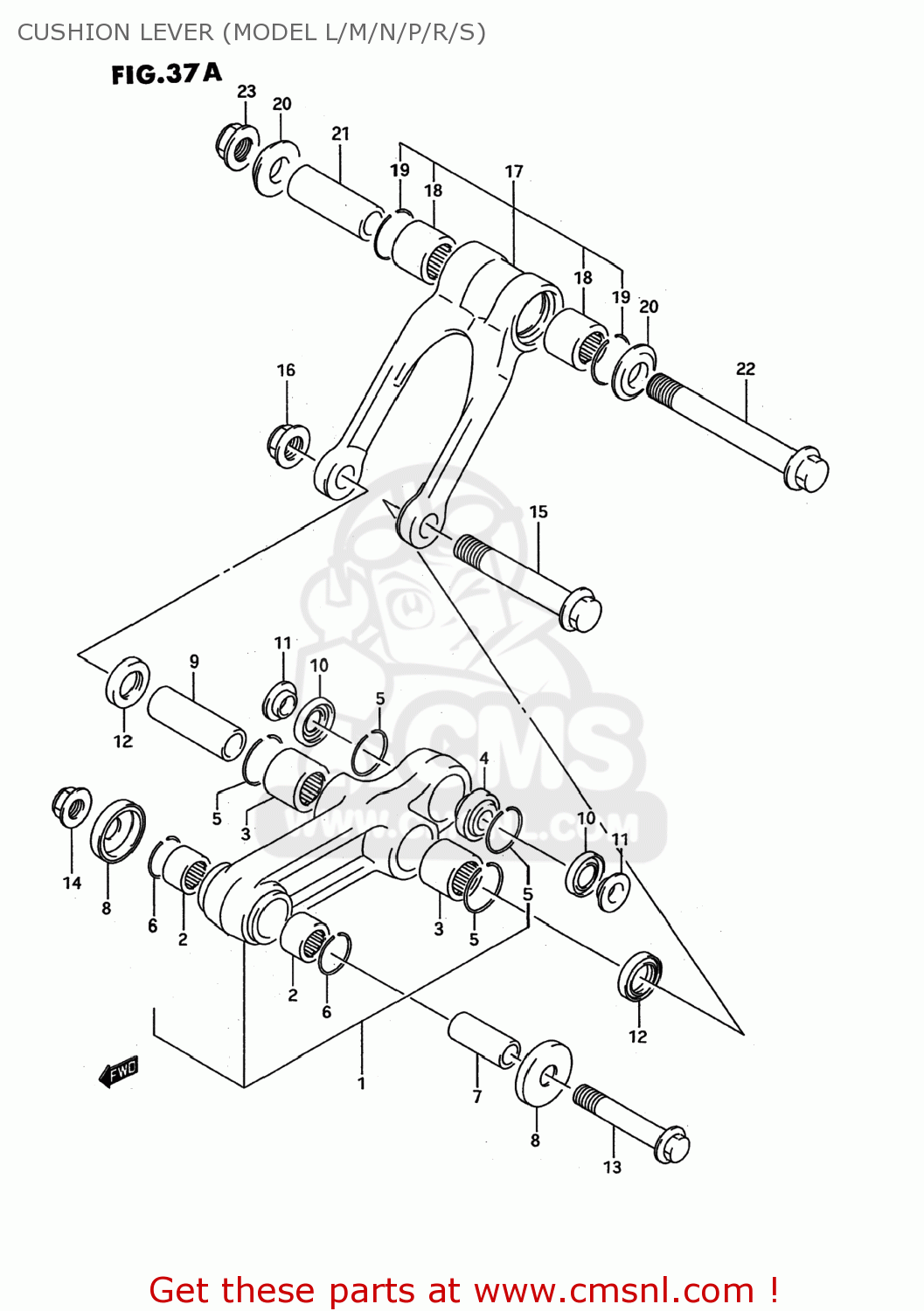

Cushion lever (model l/m/n/p/r/s) diagram RM80 1988 (J) USA (E03)

CUSHION LEVER (MODEL L/M/N/P/R/S) RM80 1988 (J) USA (E03)

CUSHION LEVER (MODEL L/M/N/P/R/S) RM80 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260002840
ref: 1

LEVER SET,RR CUSHION

€ 261.50

2

0926314027
ref: 2

BEARING(14X20X12)

€ 11.00

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4-1

6217527C00
ref: 4-1
62175-00B00

BEARING,REAR SHOCK ABSORBER

€ 66.00

4-2

6217500B00
ref: 4-2

BEARING,RR CUSHION LEVER

€ 66.00

5

6265734A01
ref: 5

RING,STOPPER

€ 1.50

6

0938120004
ref: 6

CIRCLIP,PISTON PIN

€ 2.00

7

6231702B40
ref: 7

SPACER,RR CUSHION LEVER FR

€ 8.50

8-1

6216202B40
ref: 8-1
62162-03B00

SEAL,REAR CUSHION LEVER

€ 6.50

8-2

6216203B00
ref: 8-2

SEAL,RR CUSHION LEVER FR DUST

€ 6.50

9

6262602B40
ref: 9

SPACER,RR CUSHION LEVER CTR

€ 10.00

10

6222628C00
ref: 10

SEAL,RR CUSHION LEVER RR DUST

€ 7.50

11

6268428C10
ref: 11

SPACER,RR CUSHION LEVER RR

€ 11.00

12

0928517001
ref: 12

SEAL,OIL(17X24X3)

€ 3.50

13

6265802B40
ref: 13

BOLT,RR CUSHION LEVER FR

€ 4.50

14

0915910058
ref: 14
09159-10115

NUT

€ 4.00

15

6262102B40
ref: 15

BOLT,RR CUSHION LEVER CTR

€ 5.00

16

0831931128
ref: 16
08319-3112A

NUT 12MM

€ 4.00

17-1

6260002850
ref: 17-1
62600-03850

ROD SET,REAR CUSHION,LEFT

€ 211.50

17-2

6260002851
ref: 17-2
62600-03850

ROD SET,REAR CUSHION,LEFT

€ 211.50

18

0926317039
ref: 18

BEARING(17X24X20)

€ 18.00

19

6265734A01
ref: 19

RING,STOPPER

€ 1.50

20

6264702B40
ref: 20

SPACER,RR CUSHION ROD SIDE

€ 6.00

21

6264602B40
ref: 21

SPACER,RR CUSHION ROD

€ 10.00

22

6262202B40
ref: 22

BOLT,RR CUSHION ROD

€ 7.50

23

0831931128
ref: 23
08319-3112A

NUT 12MM

€ 4.00
