RADIATOR (MODEL G/H/J/K/L/M/N/P)
RM80 1988 (J) USA (E03)

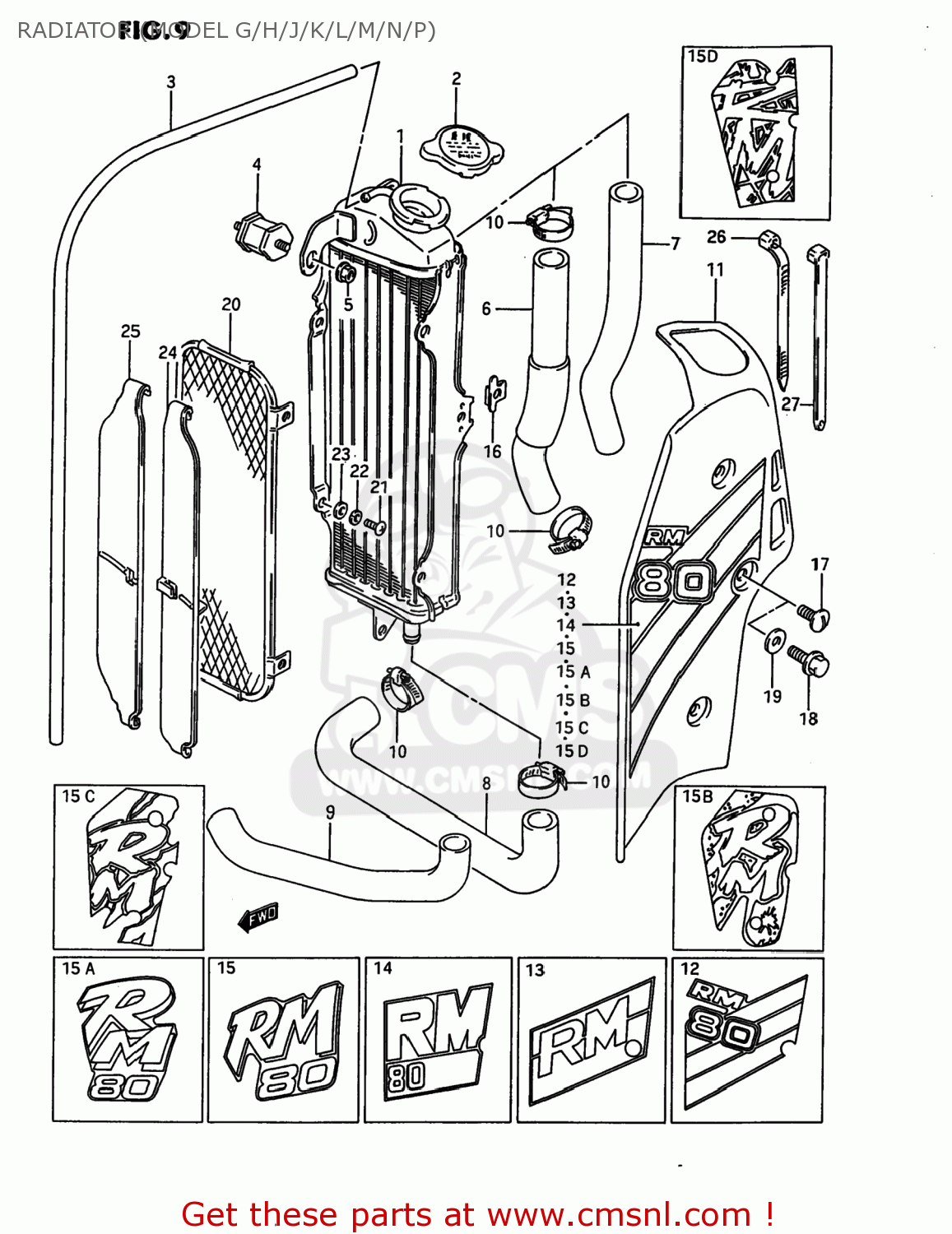

Radiator (model g/h/j/k/l/m/n/p) diagram RM80 1988 (J) USA (E03)
RADIATOR (MODEL G/H/J/K/L/M/N/P) RM80 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1771002B02
ref: 1-1
17710-02B04
RADIATOR ASSEMBLY,WATER
€ 359.50
1-2
1771002B03
ref: 1-2
17710-02B04
RADIATOR COMP,WATER
€ 359.50
2
1773020930
ref: 2
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
3-1
093515080100A
ref: 3-1
09351-50803-00B
HOSE
€ 10.00
3-2
0935150801600
ref: 3-2
09351-50803-00B
HOSE
€ 10.00
4
1778802B01
ref: 4
BOLT,RADIATOR CUSHION
€ 7.50
5
0831616064
ref: 5
08316-1006B
NUT 6MM
€ 2.50
6
1785102B00
ref: 6
HOSE,RADIATOR INLET
€ 16.50
7
1785102B40
ref: 7
HOSE,RADIATOR INLET
€ 14.50
8
1785202B01
ref: 8
HOSE,RADIATOR OUTLET
€ 20.50
9
1785202B40
ref: 9
HOSE,RADIATOR OUTLET
€ 15.50
10
0940225502
ref: 10
09402-28511
CLAMP
€ 8.50
11-1
1776120931163
ref: 11-1
17761-20931-25Y
COVER,RADIATOR
€ 25.00
11-2
177612093125Y
ref: 11-2
COVER,RADIATOR
€ 25.00
11-3
177612093130H
ref: 11-3
17761-20931-25Y
COVER,RADIATOR
€ 25.00
12
6867002B0074H
ref: 12
TAPE SET,RADIATOR COVER
€ 38.00
13
6867002B109BV
ref: 13
TAPE SET,RADIATOR COVER
€ 22.50
14
6867102B209UR
ref: 14
TAPE,RADIATOR COVER
€ 27.50
15
6867102B302DP
ref: 15
EMBLEM,RADIATOR COVER
€ 10.50
15A
6867102B403MB
ref: 15A
EMBLEM,RADIATOR COVER
€ 15.00
15B
6867103B000WN
ref: 15B
EMBLEM,RADIATOR COVER
€ 50.50
15C
6867103B101JH
ref: 15C
EMBLEM,RADIATOR COVER
€ 39.00
15D
6867103B20A4H
ref: 15D
EMBLEM,RADIATOR COVER
€ 46.00
16
1778520930
ref: 16
PLATE,RADIATOR COVER FITING
€ 4.50
17
0912506045
ref: 17
SCREW(6X14)
€ 13.50
18
0154706167
ref: 18
BOLT
€ 2.00
19
0916006028
ref: 19
WASHER(6.5X18X1)
€ 1.50
20-1
1781020930
ref: 20-1
BUMPER,RADIATOR
€ 20.00
20-2
1781002B40
ref: 20-2
BUMPER,RADIATOR
€ 26.00
21
0211206104
ref: 21
02112-0610B
SCREW
€ 1.50
22
0832121064
ref: 22
08321-0106A
WASHER,LOCK
€ 2.00
23
0832221064
ref: 23
08322-0106B
WASHER
€ 2.00
24-1
1783120900163
ref: 24-1
17830-20900-25Y
LOUVER,RADIATOR
€ 26.50
24-2
178312090025Y
ref: 24-2
17830-20900-25Y
LOUVER,RADIATOR,OUTER (
€ 26.50
24-3
178312090030H
ref: 24-3
17830-20900-25Y
LOUVER,RADIATOR
€ 26.50
25-1
1783220900163
ref: 25-1
17832-20900-25Y
LOUVER,RADIATOR
€ 9.50
25-2
178322090025Y
ref: 25-2
LOUVER,RADIATOR,INNER (
€ 9.50
25-3
178322090030H
ref: 25-3
17832-20900-25Y
LOUVER,RADIATOR
€ 9.50
26-1
0940718402
ref: 26-1
CLAMP(L:165)
€ 2.50
26-2
0940725401
ref: 26-2
CLAMP(L:235)
€ 4.00
26-3
0940714403
ref: 26-3
CLAMP(L:125)
€ 2.50
27
0940722404
ref: 27
CLAMP
€ 2.50
