FRONT FORK (MODEL S)

RM80 1994 (R) USA (E03)

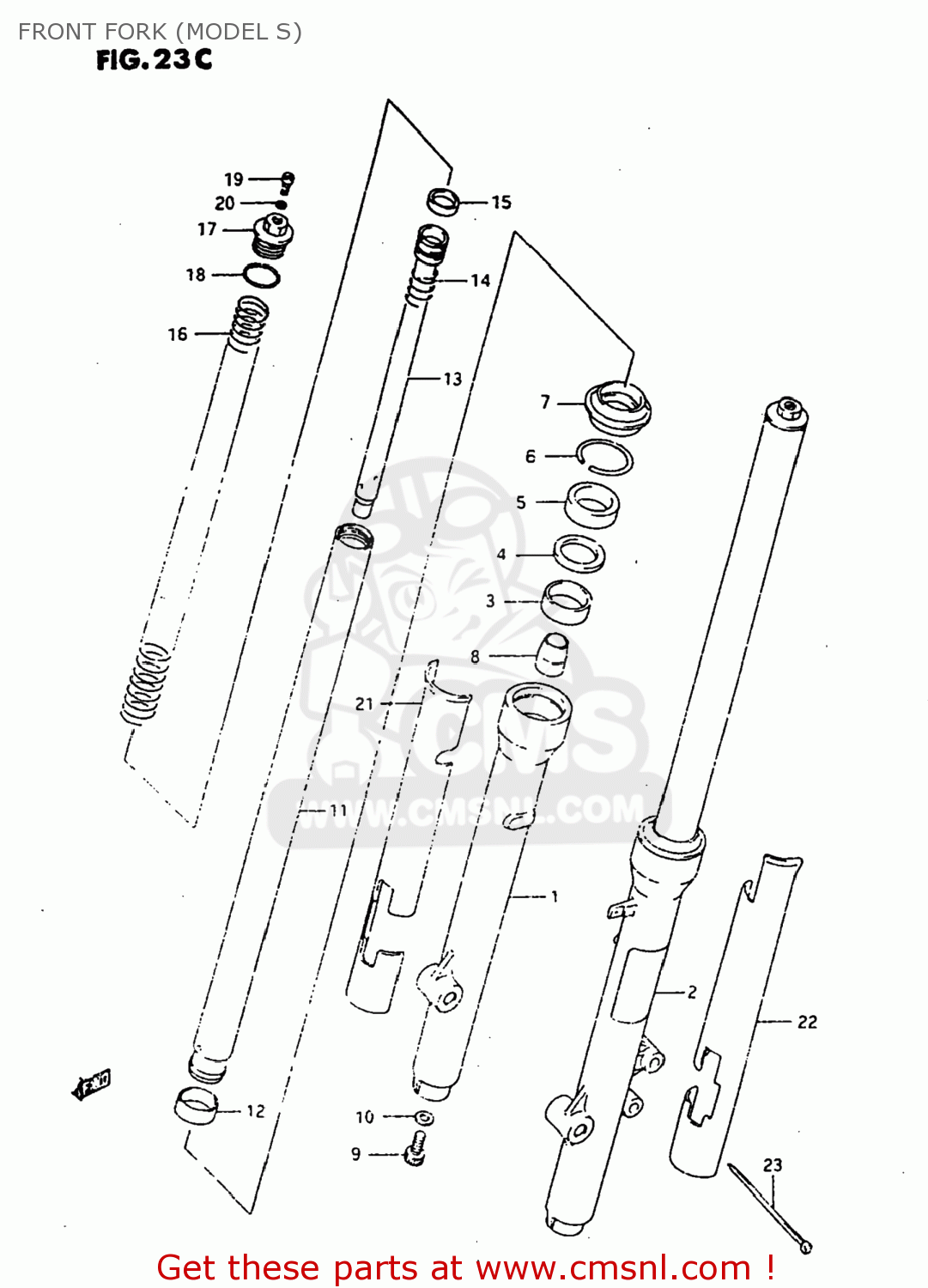

Front fork (model s) diagram RM80 1994 (R) USA (E03)

FRONT FORK (MODEL S) RM80 1994 (R) USA (E03)

FRONT FORK (MODEL S) RM80 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110302B60
ref:

DAMPER ASSY,FR FORK,R

€ 542.50



5110402B60
ref:

DAMPER ASSEMBLY,LEFT

€ 623.00

1

5113002B60
ref: 1

TUBE,OUTER,R

€ 229.00

2

5114002B60
ref: 2

TUBE,OUTER,L

€ 229.00

3

5115245400
ref: 3

BUSH,GUIDE

€ 14.00

4

5116830B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115319D10
ref: 5

SEAL,OIL 35X48X11

€ 14.00

6

5115601A00
ref: 6

RING,OIL SEAL STOPPER

€ 3.50

7

5157134A00
ref: 7
51571-03B20

SEAL,DUST

€ 22.00

8

5119502B40
ref: 8

PIECE,OIL LOCK

€ 9.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5111002B40
ref: 11

TUBE,INNER

€ 211.50

12

5112134A00
ref: 12

PISTON

€ 11.00

13

5119402B40
ref: 13

SEAT,UNDER

€ 64.00

14

5117702B20
ref: 14

SPRING,REBOUND

€ 5.00

15

5119602B40
ref: 15

RING,PISTON

€ 6.50

16

5117102B40
ref: 16

SPRING,UNDER

€ 39.50

17

5135102B60
ref: 17

BOLT,FORK

€ 37.50

18

5111702B20
ref: 18

O RING

€ 3.50

19

5135727C40
ref: 19

BOLT,PLUG

€ 5.50

20

5111719C10
ref: 20

O RING

€ 2.00

21

5120102B00
ref: 21

PROTECTOR,FR FORK,R

€ 42.50

22

5120202B00
ref: 22

PROTECTOR,FR FORK,L

€ 42.50

23

0940720404
ref: 23
09407-25402

CLAMP

€ 4.50
