REAR SWINGING ARM (MODEL K)

RM80 1994 (R) USA (E03)

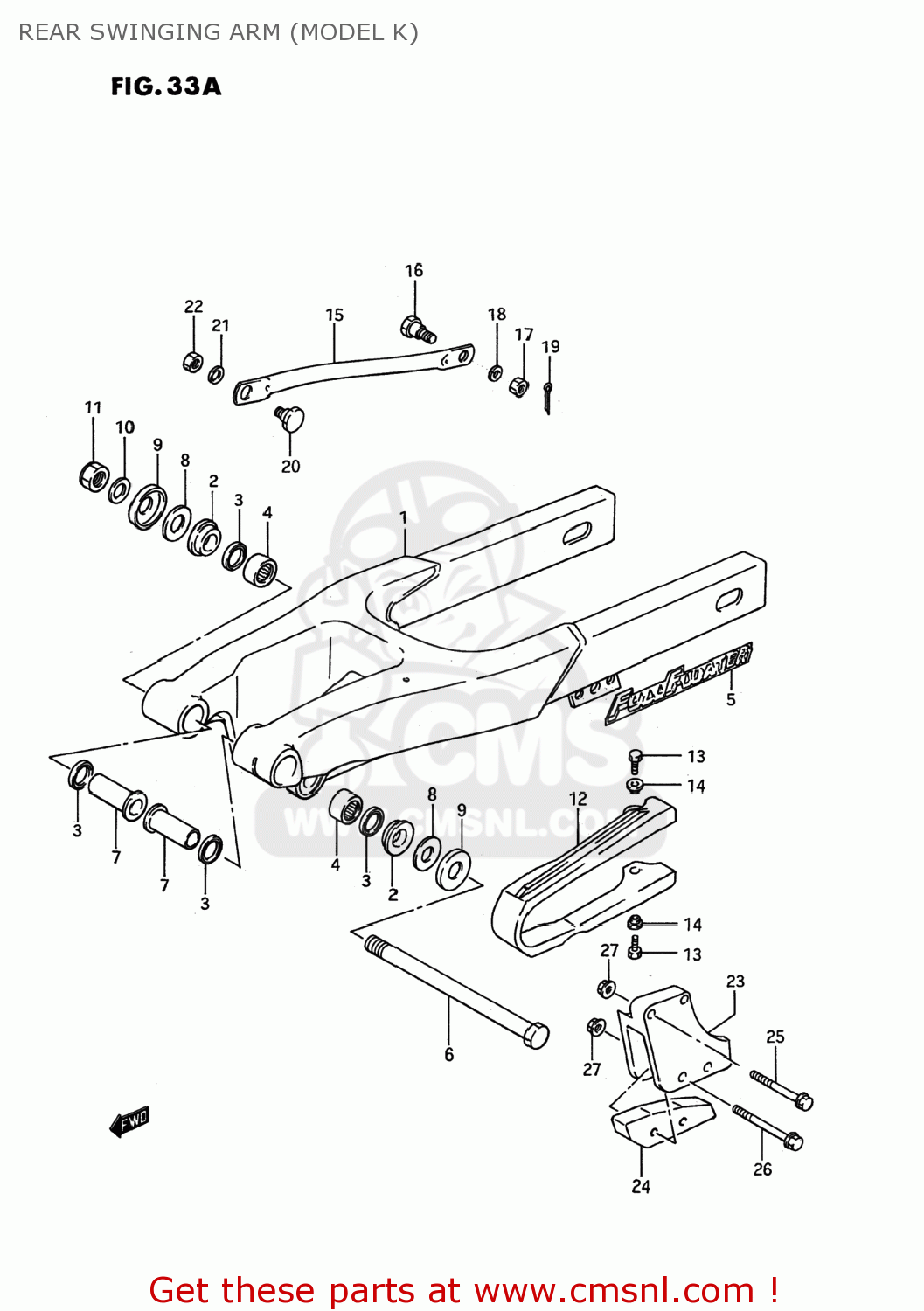

Rear swinging arm (model k) diagram RM80 1994 (R) USA (E03)

REAR SWINGING ARM (MODEL K) RM80 1994 (R) USA (E03)

REAR SWINGING ARM (MODEL K) RM80 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100002B13
ref: 1

SWING ARM ASSEMBLY,REAR

€ 571.50

2

6126102B00
ref: 2

BUSHING,SWGARM PIVOT

€ 9.50

3

0928517001
ref: 3

SEAL,OIL(17X24X3)

€ 3.50

4

0926317020
ref: 4
09263-17037

ROLLER BEARING (17X24X25)

€ 19.00

5

683810341097J
ref: 5

EMBLEM,SWING ARM

€ 7.00

6

6121102B00
ref: 6

SHAFT,REAR SWING ARM PIVOT

€ 13.50

7

6125102B00
ref: 7

SPACER,RR SWGARM PIVOT

€ 13.50

8

0821112282
ref: 8

WASHER

€ 2.00

9

6126240200
ref: 9
61262-03B00

COVER,REAR SWING ARM DUST

€ 5.00

10

0832211128
ref: 10
08322-01127

WASHER

€ 2.00

11

0831921128
ref: 11
08319-2112A

NUT 12MM

€ 4.00

12

6127302B20
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 24.50

13

0110706167
ref: 13
01500-06167

BOLT

€ 3.00

14

0916906057
ref: 14

WASHER

€ 4.00

15

6431102B0013L
ref: 15

TORQUE LINK

€ 6.50

16

0911108048
ref: 16

BOLT(8X21)

€ 3.50

17

0914008008
ref: 17

NUT

€ 1.50

18

0832121088
ref: 18
08321-01087

LOCK WASHER

€ 2.00

19

0411120208
ref: 19
04111-2020A

PIN 20X20

€ 1.50

20

0911108064
ref: 20

BOLT(8X21)

€ 2.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0831921088
ref: 22
08319-2108A

NUT

€ 1.50

23

6134202B02
ref: 23

GUIDE,CHAIN

€ 15.00

24

6134802B20
ref: 24

DEFENSE,CHAIN GUIDE

€ 11.00

25

0151706358
ref: 25
01550-06357

BOLT 6X35

€ 2.50

26

0151706458
ref: 26
01550-06457

BOLT,UNDER

€ 2.50

27

0831931067
ref: 27

NUT

€ 2.50
