FRONT FORK (MODEL L/M/N/P/R)

RM80 1995 (S) USA (E03)

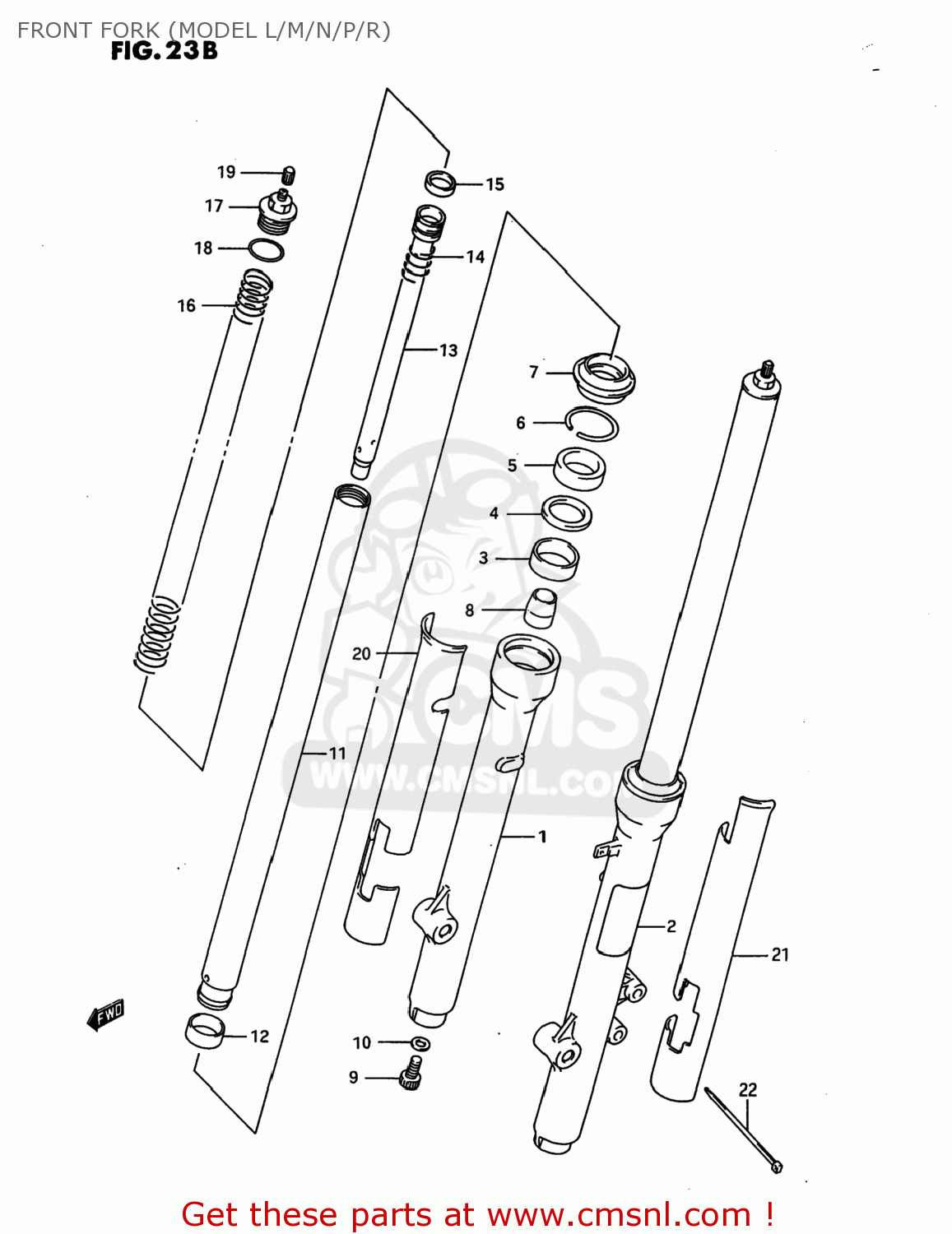

Front fork (model l/m/n/p/r) diagram RM80 1995 (S) USA (E03)

FRONT FORK (MODEL L/M/N/P/R) RM80 1995 (S) USA (E03)

FRONT FORK (MODEL L/M/N/P/R) RM80 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110302B40
ref:
51103-02B60

DAMPER ASSEMBLY,RIGHT

€ 542.50



5110402B40
ref:
51104-02B42

DAMPER ASSEMBLY,LEFT

€ 623.00

1

5113002B40
ref: 1
51130-02B60

TUBE,OUTER,RIGHT

€ 229.00

2

5114002B40
ref: 2
51140-02B60

TUBE,OUTER,LEFT

€ 229.00

3

5115245400
ref: 3

BUSH,GUIDE

€ 14.00

4

5116830B00
ref: 4

SPACER,SEAL

€ 5.00

5-1

5115334A00
ref: 5-1
51153-19D10

OIL SEAL,FRONT FORK 35X48X11

€ 14.00

5-2

5115319D10
ref: 5-2

SEAL,OIL 35X48X11

€ 14.00

6

5115601A00
ref: 6

RING,OIL SEAL STOPPER

€ 3.50

7

5157134A00
ref: 7
51571-03B20

SEAL,DUST

€ 22.00

8

5119502B40
ref: 8

PIECE,OIL LOCK

€ 9.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5111002B40
ref: 11

TUBE,INNER

€ 211.50

12

5112134A00
ref: 12

PISTON

€ 11.00

13

5119402B40
ref: 13

SEAT,UNDER

€ 64.00

14

5117702B20
ref: 14

SPRING,REBOUND

€ 5.00

15

5119602B40
ref: 15

RING,PISTON

€ 6.50

16

5117102B40
ref: 16

SPRING,UNDER

€ 39.50

17

5135102B20
ref: 17

BOLT,FORK INNER TUBE

€ 31.50

18

5111702B20
ref: 18

O RING

€ 3.50

19

5129420400
ref: 19

CAP

€ 3.50

20

5120102B00
ref: 20

PROTECTOR,FR FORK,R

€ 42.50

21

5120202B00
ref: 21

PROTECTOR,FR FORK,L

€ 42.50

22

0940720401
ref: 22
09407-25402

CLAMP

€ 4.50
