REAR SWINGING ARM (MODEL G/H/J)
RM80 1995 (S) USA (E03)

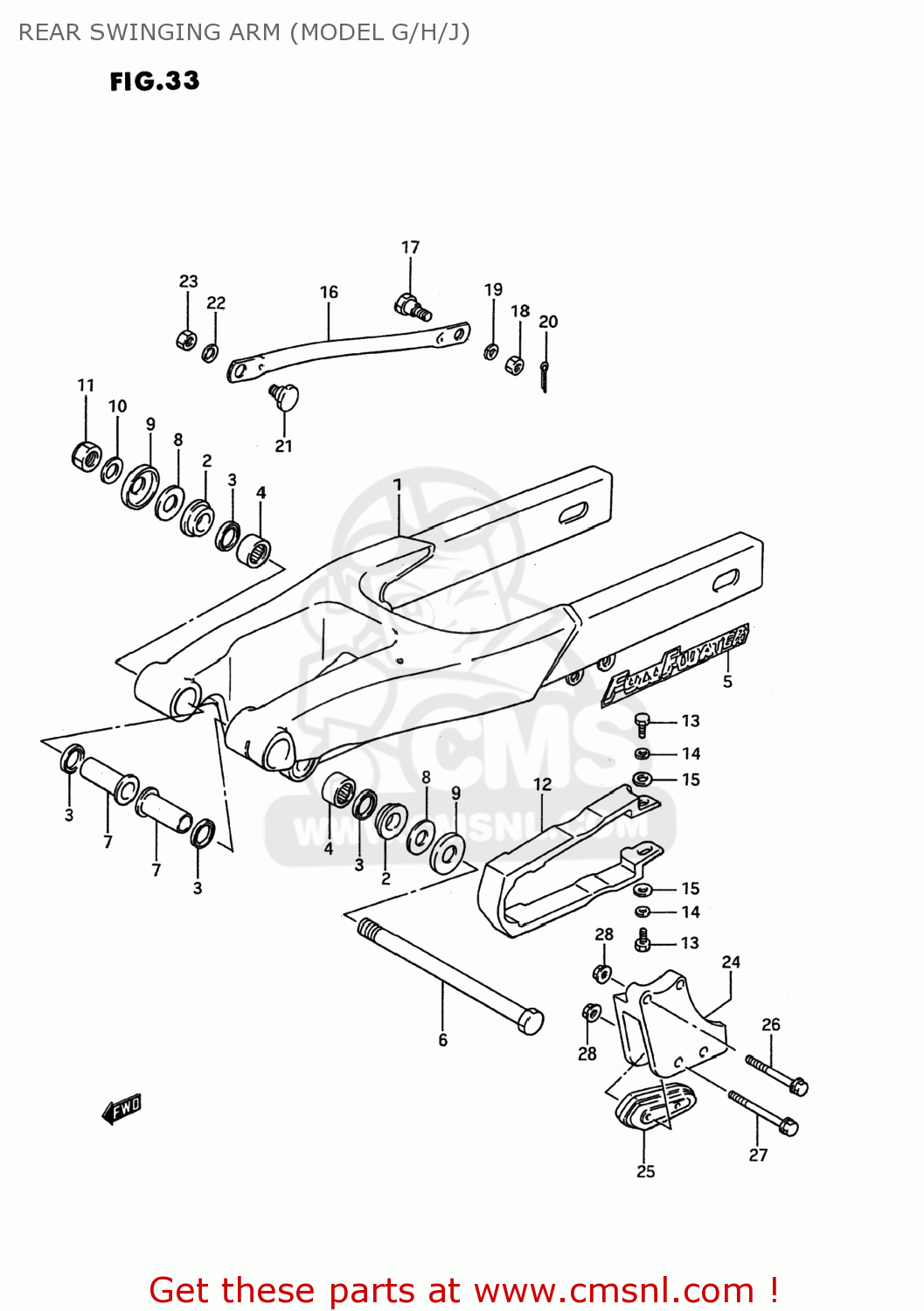

Rear swinging arm (model g/h/j) diagram RM80 1995 (S) USA (E03)
REAR SWINGING ARM (MODEL G/H/J) RM80 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100002B10
ref: 1-1
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
1-2
6100002B11
ref: 1-2
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
1-2
6100002B11
ref: 1-2
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
1-2
6100002B11
ref: 1-2
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
1-2
6100002B11
ref: 1-2
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
1-2
6100002B11
ref: 1-2
61000-02B13
SWING ARM ASSEMBLY,REAR
€ 571.50
2
6126102B00
ref: 2
BUSHING,SWGARM PIVOT
€ 9.50
3
0928517001
ref: 3
SEAL,OIL(17X24X3)
€ 3.50
4
0926317020
ref: 4
09263-17037
ROLLER BEARING (17X24X25)
€ 19.00
5
683810341097J
ref: 5
EMBLEM,SWING ARM
€ 7.00
6
6121102B00
ref: 6
SHAFT,REAR SWING ARM PIVOT
€ 13.50
7
6125102B00
ref: 7
SPACER,RR SWGARM PIVOT
€ 13.50
8
0821112282
ref: 8
WASHER
€ 2.00
9
6126240200
ref: 9
61262-03B00
COVER,REAR SWING ARM DUST
€ 5.00
10
0832211128
ref: 10
08322-01127
WASHER
€ 2.00
11
0831921128
ref: 11
08319-2112A
NUT 12MM
€ 4.00
12
6127302B00
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 20.00
13
0110706127
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
€ 1.50
16
6431102B0013L
ref: 16
TORQUE LINK
€ 6.50
17
0911108048
ref: 17
BOLT(8X21)
€ 3.50
18
0914008008
ref: 18
NUT
€ 1.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
21
0911108064
ref: 21
BOLT(8X21)
€ 2.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
23
0831921088
ref: 23
08319-2108A
NUT
€ 1.50
24
6134202B02
ref: 24
GUIDE,CHAIN
€ 15.00
25
6134814110
ref: 25
DEFENSE,CHAIN GUIDE
€ 12.00
26
0151706358
ref: 26
01550-06357
BOLT 6X35
€ 2.50
27
0151706458
ref: 27
01550-06457
BOLT,UNDER
€ 2.50
28
0831931067
ref: 28
NUT
€ 2.50
