MAGNETO

RM80 1997 (V) USA (E03)

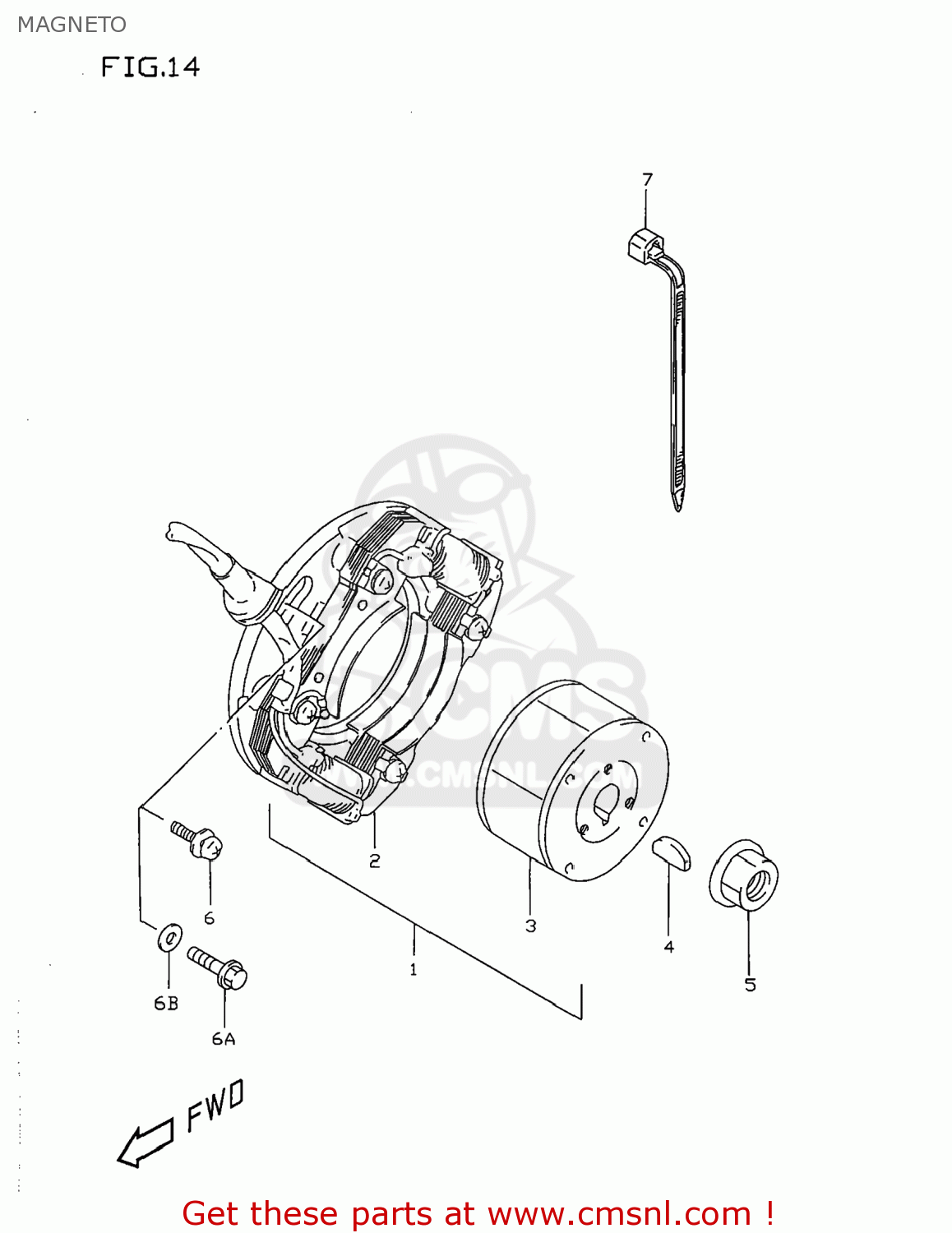

Magneto diagram RM80 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210002B31
ref: 1
32100-02B32

MAGNETO ASSEMBLY

€ 461.50

3210102B31
ref: 2
32101-02B32

STATOR

€ 268.00

3210202B30
ref: 3
32102-02B31

ROTOR

€ 253.50

0942004008
ref: 4

KEY

€ 3.50

0831610103
ref: 5
08316-1010B

NUT

€ 2.00

0211216203
ref: 6
02112-1620B

SCREW

€ 2.50

0154706203
ref: 6A
01547-0620B

SCREW

€ 2.50

0832201063
ref: 6B
08322-0106B

WASHER

€ 2.00

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940718403
ref: 7-2
09407-18402

CLAMP L:165

€ 2.50
