CRANKCASE COVER- WATER PUMP
RM80 2001 (K1) USA (E03)

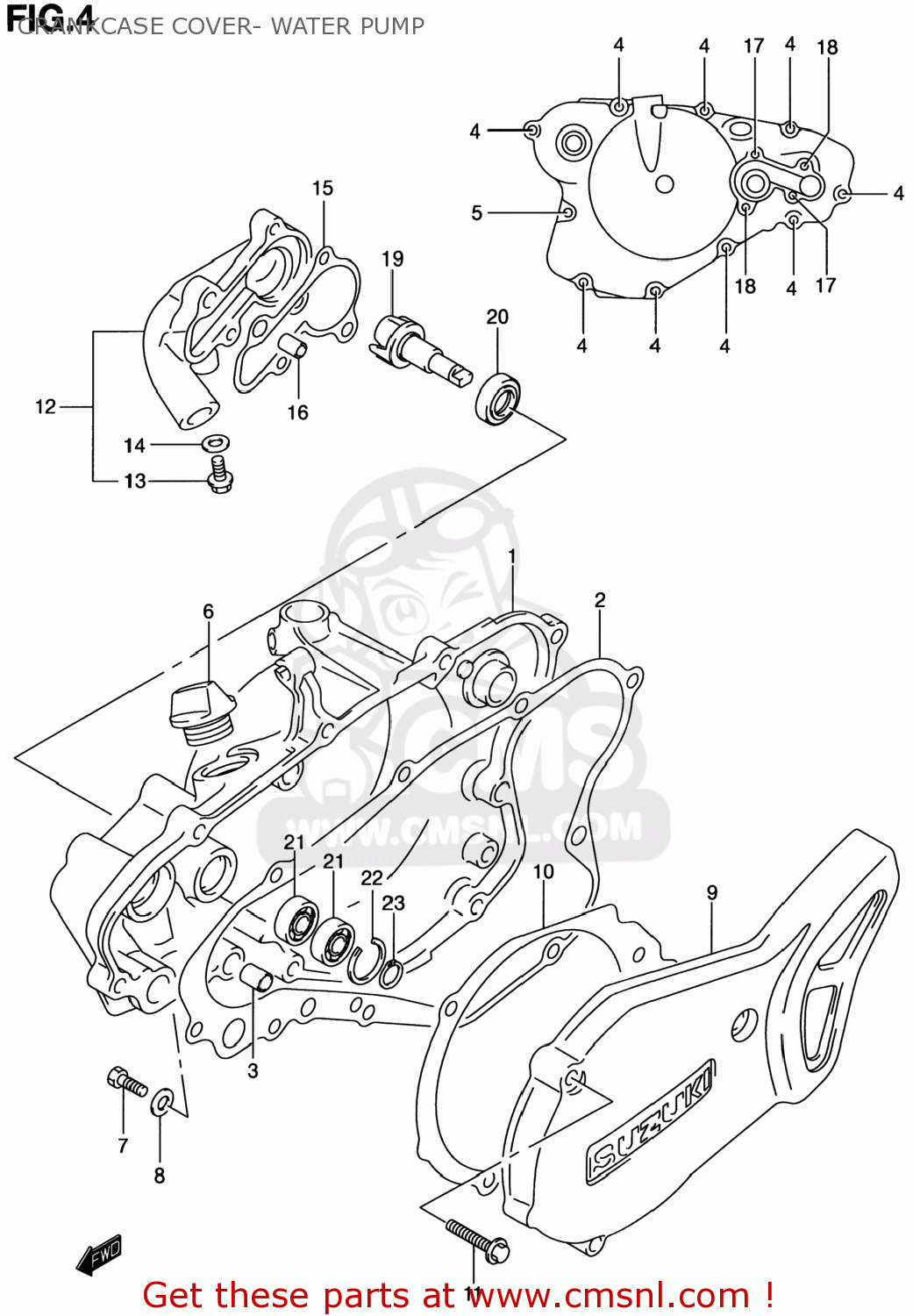

Crankcase cover- water pump diagram RM80 2001 (K1) USA (E03)
CRANKCASE COVER- WATER PUMP RM80 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134102B42
ref: 1
11341-02B43
COVER,CLUTCH
€ 142.00
2
1148227C00
ref: 2
11482-27C02
GASKET,CLUTCH COVER (NAS)
€ 12.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706253
ref: 4
01547-0625B
SCREW
€ 2.50
5
0154706353
ref: 5
01547-0635B
BOLT
€ 3.00
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
0912806044
ref: 7
SCREW(6X10)
€ 1.50
8
0916806004
ref: 8
GASKET(6.2X11X1).2 (NAS)
€ 1.50
9
1135102B41
ref: 9
COVER,MAGNETO
€ 60.00
10
1148302B50
ref: 10
GASKET,MAGNETO COVER (NAS)
€ 5.00
11
0154706253
ref: 11
01547-0625B
SCREW
€ 2.50
12
1741002B44
ref: 12
CASE,WATER PUMP
€ 59.00
13
1741543D00
ref: 13
BOLT
€ 3.00
14
1741328C10
ref: 14
WASHER
€ 1.50
15
1743102B41
ref: 15
17431-02B42
GASKET,WATER PUMP CASE (NAS)
€ 5.00
16
0421109129
ref: 16
PIN
€ 2.00
17
0154706203
ref: 17
01547-0620B
SCREW
€ 2.50
18
0154706303
ref: 18
01547-0630B
BOLT,G/S SWITC
€ 3.00
19
1749102B40
ref: 19
17491-02B41
IMPELLER,WATER PUMP
€ 17.50
20
1746128C10
ref: 20
17461-03B00
SEAL,WATER PUMP OIL
€ 7.00
21
0811306980
ref: 21
BEARING
€ 14.00
22
0938119003
ref: 22
CIRCLIP
€ 2.00
23
0833131086
ref: 23
08331-3108A
CIRCLIP
€ 2.00
