REAR BRAKE

RM80 2001 (K1) USA (E03)

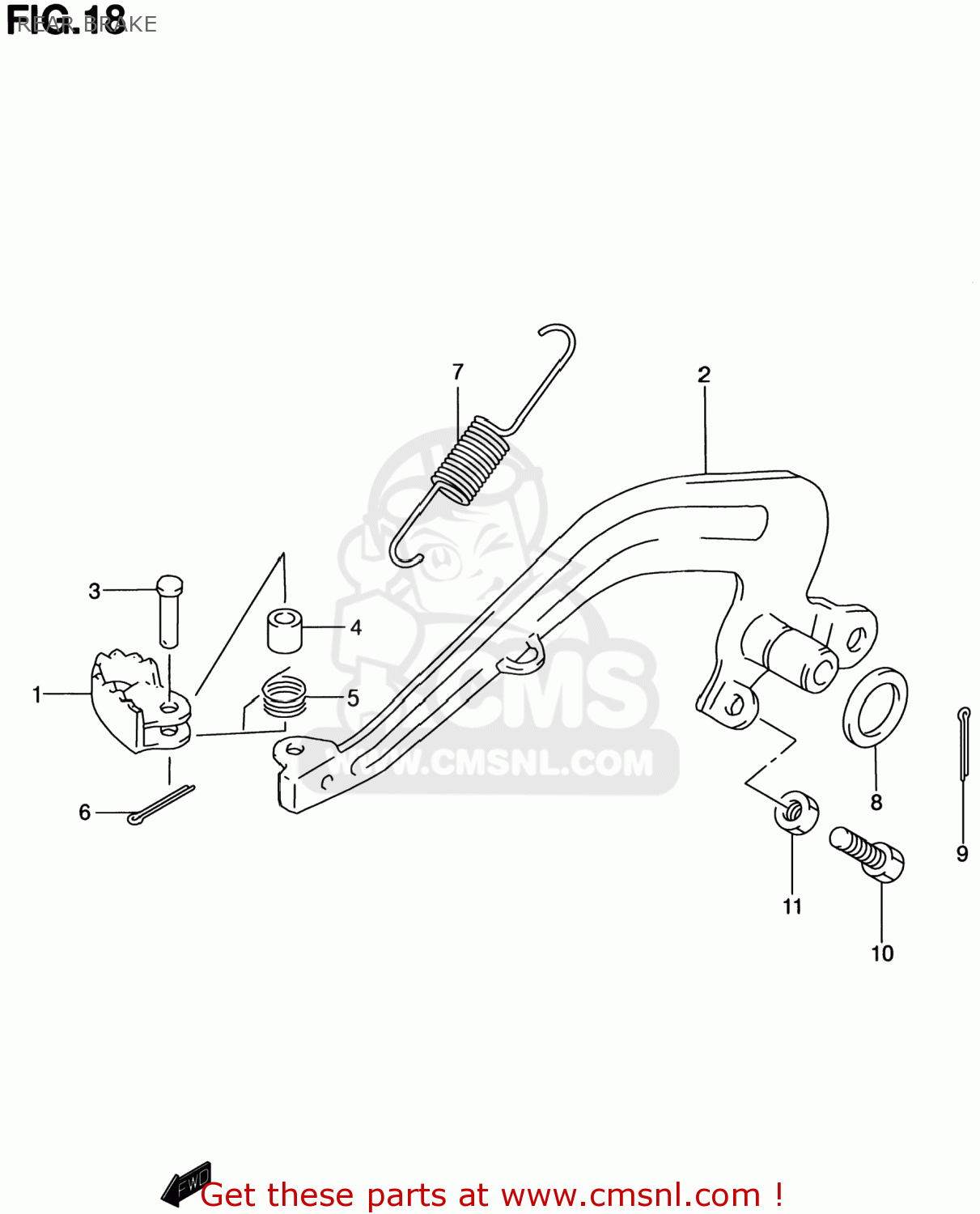

Rear brake diagram RM80 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

4311001B10
ref: 1

PEDAL,BRAKE

€ 10.00

4312002B30
ref: 2

ARM,BRAKE PEDAL

€ 36.50

0920006060
ref: 3

PIN

€ 5.50

0918006257
ref: 4

SPACER(6.5X9X6.5)

€ 2.50

0944411005
ref: 5

SPRING

€ 3.00

0411120158
ref: 6
04111-2015A

PIN

€ 1.50

0944313024
ref: 7

SPRING

€ 6.00

0916015049
ref: 8

WASHER(15.5X24X2.3)

€ 2.50

0411125308
ref: 9
04111-2530A

PIN, COTTER

€ 1.50

0912806028
ref: 10

SCREW(6X23)

€ 2.00

0831000063
ref: 11
08310-0006A

NUT 6MM

€ 2.00
