REAR SWINGING ARM (MODEL D)
RM80H 1984 (E)

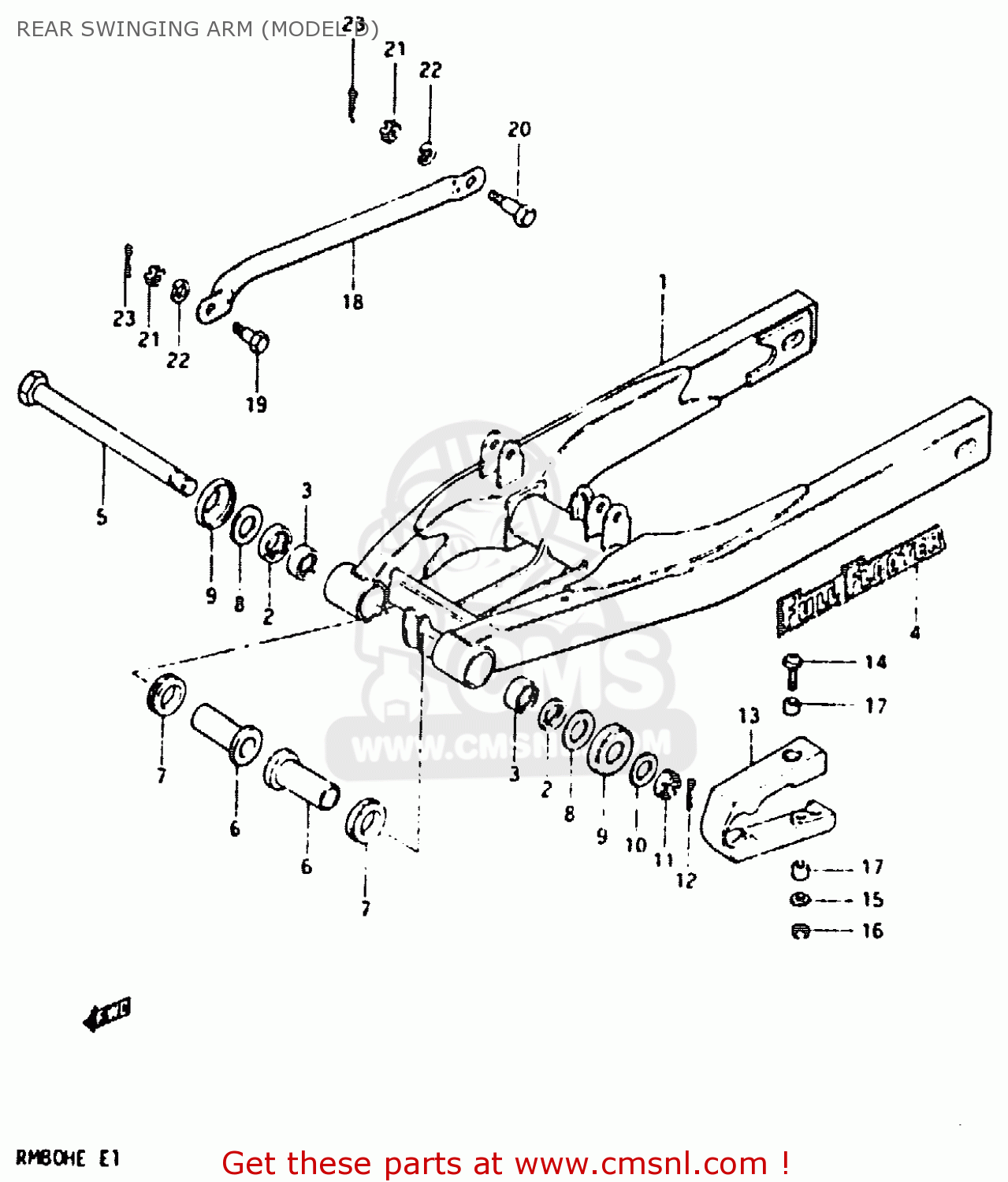

Rear swinging arm (model d) diagram RM80H 1984 (E)
REAR SWINGING ARM (MODEL D) RM80H 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
610002051108C
ref: 1
REAR SWINGING ARM SET
€ 0.00
2
0928517001
ref: 2
SEAL,OIL(17X24X3)
€ 3.50
3
0926317020
ref: 3
ROLLER BEARING (17X24X25)
€ 19.00
4
683810340064D
ref: 4
EMBLEM,SWING ARM
€ 5.00
5
6121120400
ref: 5
SHAFT,REAR SWING ARM
€ 13.00
6
6125120400
ref: 6
SPACER,RR SWGARM PIVOT
€ 15.50
7
0928617001
ref: 7
SEAL,OIL(17X24X5)
€ 3.50
8
0821112281
ref: 8
WASHER
€ 2.00
9
6126241500
ref: 9
COVER,RR SWGARM DUST SEAL
€ 7.50
10
0832211128
ref: 10
WASHER
€ 2.00
11
0831441128
ref: 11
NUT, REAR AXLE
€ 2.50
12
0411120308
ref: 12
COTTER PIN
€ 1.00
13
6127320900
ref: 13
BUFFER,CHAIN TOUCH DEFLECTOR
€ 25.50
14
6127520900
ref: 14
SCREW,CHAIN TOUCH DEFEND
€ 1.50
15
0832221058
ref: 15
WASHER
€ 2.50
16
0831022058
ref: 16
NUT
€ 2.50
17
0918005015
ref: 17
SPACER (5.5X8X4)
€ 3.00
18
643102050008C
ref: 18
TORQUC LINK, REAR (GOLD)
€ 10.00
19
0911108015
ref: 19
BOLT(8X22)
€ 3.00
20
0911108048
ref: 20
BOLT(8X21)
€ 3.50
21
0914008008
ref: 21
NUT
€ 1.50
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
0411120208
ref: 23
PIN 20X20
€ 1.50
