SHOCK ABSORBER (MODEL M/N/P/R/S)

RM80X 1987 (H)

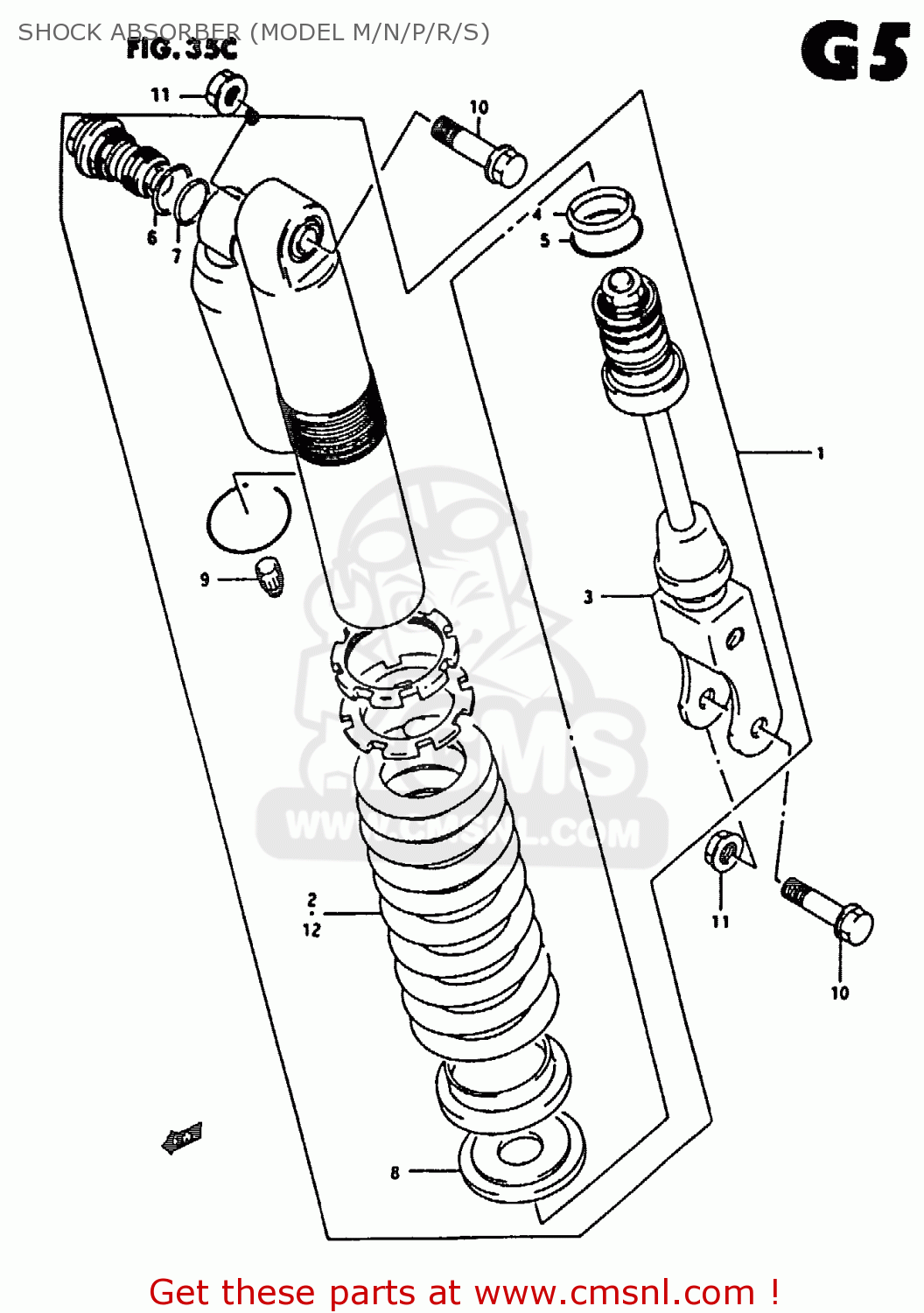

Shock absorber (model m/n/p/r/s) diagram RM80X 1987 (H)

SHOCK ABSORBER (MODEL M/N/P/R/S) RM80X 1987 (H)

SHOCK ABSORBER (MODEL M/N/P/R/S) RM80X 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

6210003B00163
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 510.50

2

6221102B70
ref: 2

SPRING

€ 155.00

3

6212003B00
ref: 3

ROD,PISTON

€ 416.00

4

6215303B00
ref: 4

O RING

€ 3.50

5

6227903B00
ref: 5

RING,PISTON ROD STOPPER

€ 2.50

6

6213127C40
ref: 6

O RING

€ 3.50

7

6213227C40
ref: 7

O RING

€ 3.00

8

6222517C00
ref: 8

SEAT,SPRING STOPPER

€ 21.50

9

5129420400
ref: 9

CAP

€ 3.50

10

6264814500
ref: 10

BOLT,RR CUSHION ROD UPR

€ 3.00

11

0915910058
ref: 11

NUT

€ 4.00

12-1

6221103B00
ref: 12-1
OPT

SPRING(SOFT)

€ 192.50

12-2

6221103B10
ref: 12-2
OPT

SPRING(HARD)

€ 192.50

14

6242302B00
ref: 14

CUSHION,REAR SHOCK ABSORBER

€ 3.00

15

0940270503
ref: 15

CLAMP

€ 10.50

16

6221102B60
ref: 16
OPT

SPRING (HARD)

€ 109.50

17

6221102B35
ref: 17
OPT

SPRING (HARD)

€ 0.00
