KICK STARTER
RM80X 1994 (R)

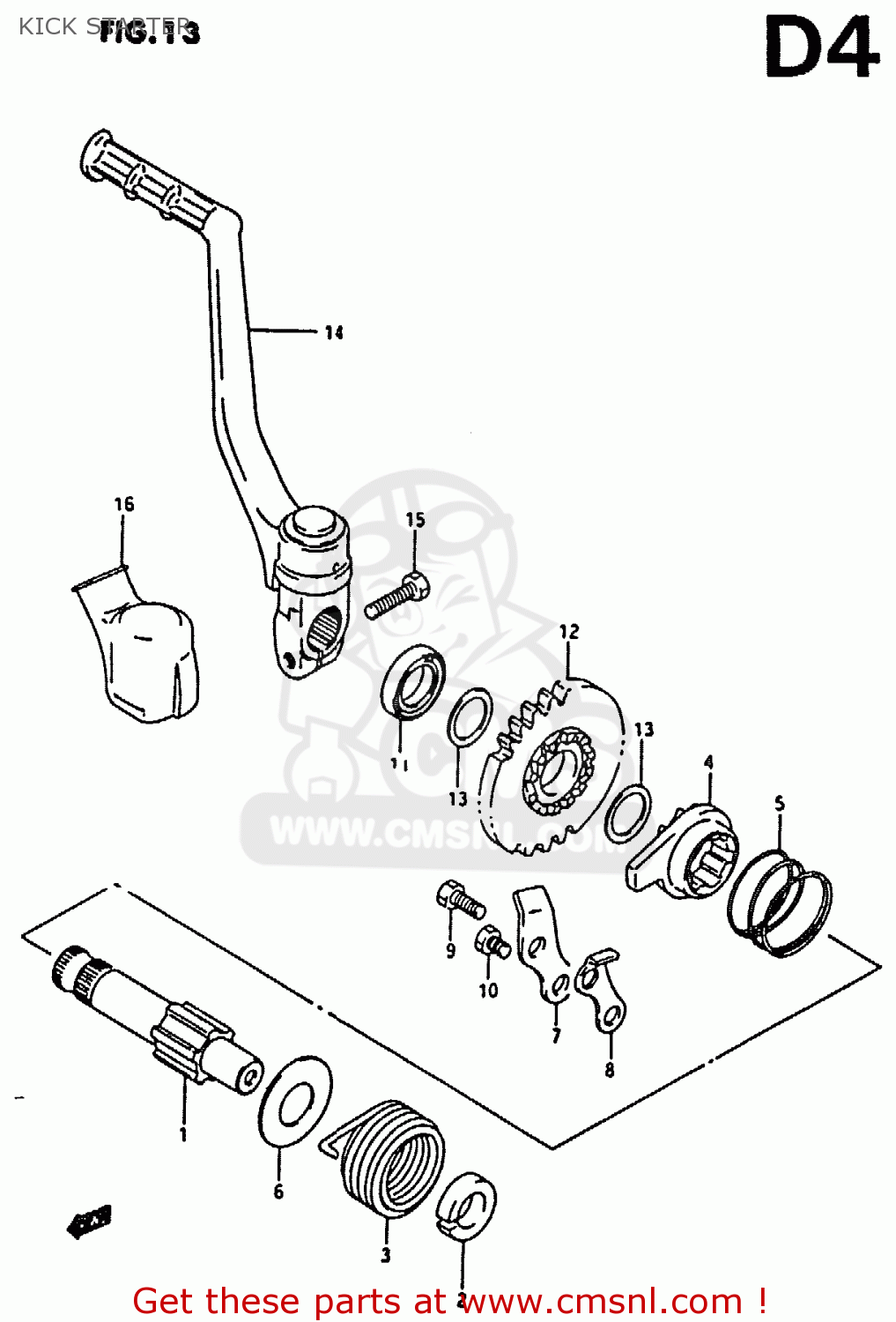

Kick starter diagram RM80X 1994 (R)
KICK STARTER RM80X 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1
2621102B02
ref: 1
SHAFT,KICK STARTER
€ 40.50
2
2622102B00
ref: 2
GUIDE,SPRING
€ 1.50
3-1
0944834003
ref: 3-1
MODEL G/H/J
SPRING
€ 7.00
3-2
0944835007
ref: 3-2
MODEL K/L/M/N/P/R/S
SPRING
€ 7.00
4
2623102B00
ref: 4
STARTER,KICK
€ 15.50
5
0944031002
ref: 5
SPRING
€ 2.00
6
0821112301
ref: 6
WASHER
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
€ 3.00
8
2623340200
ref: 8
STOPPER,KICK STARTER
€ 2.50
9-1
0110706167
ref: 9-1
MODEL G/H/J/K/L/M/N
BOLT
€ 3.00
9-2
0150006163
ref: 9-2
MODEL P/R
BOLT
€ 2.00
9-3
0150006123
ref: 9-3
MODEL S
BOLT
€ 2.00
10
0910006092
ref: 10
MODEL G/H/J
BOLT 6X8
€ 2.50
11
0928514001
ref: 11
SEAL,OIL(14X24X6)
€ 9.00
12-1
2624102B01
ref: 12-1
MODEL G/H/J
GEAR,KICK STARTER DRIVE
€ 47.00
12-2
2624102B40
ref: 12-2
MODEL K/L/M/N/P/R/S
GEAR,KICK STARTER DRIVE
€ 43.50
13
0821114201
ref: 13
WASHER
€ 2.50
14-1
2630002B11
ref: 14-1
MODEL G/H/J/K/L/M/N
LEVER ASSEMBLY,KICK STARTER
€ 115.00
14-2
2630002B12
ref: 14-2
MODEL P/R/S
LEVER ASSY,KICK STARTER
€ 115.00
15-1
0110706205
ref: 15-1
MODEL G
BOLT
€ 2.00
15-2
0110706207
ref: 15-2
MODEL H/J/K/L/M/N/P/
BOLT
€ 2.00
15-3
0150006207
ref: 15-3
MODEL S
BOLT
€ 2.00
16
2634120401
ref: 16
COVER,KICK LEVER JOINT
€ 6.50
