STAND
RM80X 1994 (R)

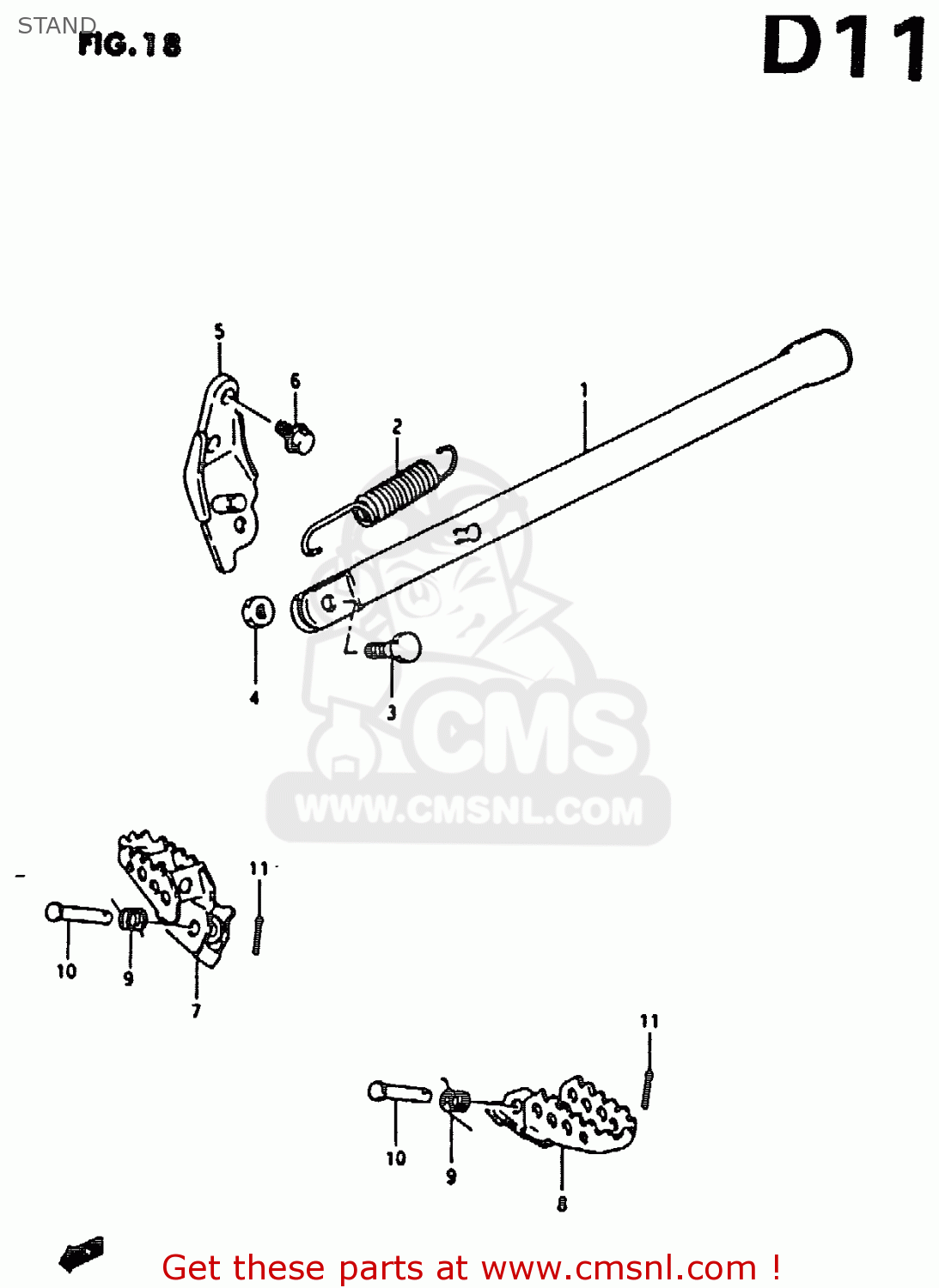

Stand diagram RM80X 1994 (R)
STAND RM80X 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231002B0019F
ref: 1-1
MODEL G/H/J/K/L
STAND,SIDE
€ 142.50
1-2
4231002B00019
ref: 1-2
MODEL M/N/P/R/S
STAND,PROP(BLACK)
€ 142.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910008140
ref: 3
BOLT(8X25)
€ 2.00
4-1
0831022088
ref: 4-1
MODEL G/H/J/K/L/M/N/
NUT 8MM
€ 2.00
4-2
0831000083
ref: 4-2
MODEL R/S
NUT
€ 1.50
5-1
4233002B0019F
ref: 5-1
MODEL G
BRACKET,SIDE STAND
€ 22.50
5-2
4233002B0119F
ref: 5-2
MODEL H/J/K/L
BRACKET,SIDE STAND
€ 22.50
5-3
4233002B01019
ref: 5-3
MODEL M/N/P/R/S
BRACKET,PROP STAND(BLACK)
€ 22.50
6-1
0151708166
ref: 6-1
MODEL G
BOLT
€ 3.00
6-2
0110708166
ref: 6-2
MODEL H/J/K/L/M/N/P
BOLT, 8X1.25X1
€ 2.00
6-3
0155008163
ref: 6-3
MODEL R/S
BOLT
€ 3.00
7-1
4355002B0019F
ref: 7-1
MODEL G/H/J
FOOTREST COMP,FRONT,RIGHT
€ 29.50
7-2
4355002B0119F
ref: 7-2
MODEL K/L
FOOTREST COMP,FRONT,RIGHT
€ 29.50
7-3
4355002B011AZ
ref: 7-3
MODEL M/N
FOOTREST COMP,FRONT,RIGHT
€ 29.50
7-4
4355002B01019
ref: 7-4
MODEL P/R/S
FOOTREST,FR,R
€ 29.50
8-1
4356002B0019F
ref: 8-1
MODEL G/H/J/K/L
FOOTREST COMP,FRONT,LEFT
€ 23.50
8-2
4356002B001AZ
ref: 8-2
MODEL M/N
FOOTREST COMP,FRONT,LEFT
€ 23.50
8-3
4356002B00019
ref: 8-3
MODEL P/R/S
FOOTREST,FR,L
€ 23.50
9
0944814012
ref: 9
SPRING
€ 3.00
10
0920008057
ref: 10
PIN
€ 3.00
11
0920401002
ref: 11
PIN
€ 1.50
