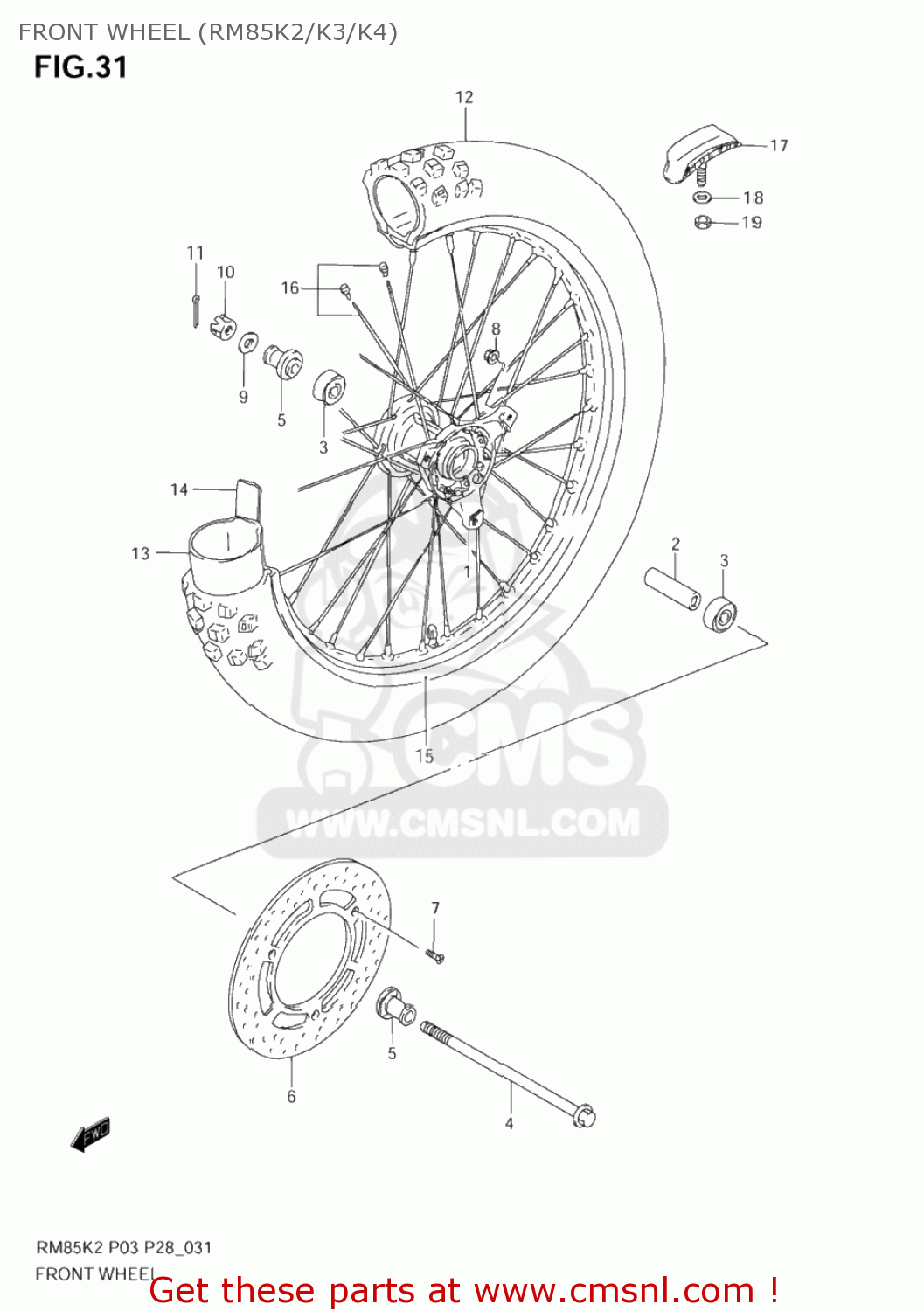

FRONT WHEEL (RM85K2/K3/K4)

RM85 2002 (K2) USA (E03)

Front wheel (rm85k2/k3/k4) diagram RM85 2002 (K2) USA (E03)

FRONT WHEEL (RM85K2/K3/K4) RM85 2002 (K2) USA (E03)
FRONT WHEEL (RM85K2/K3/K4) RM85 2002 (K2) USA (E03)
FRONT WHEEL (RM85K2/K3/K4) RM85 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5411102B42
ref: 1
HUB,FR WHEEL
5411102B42
€ 151.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
5473102B40
€ 7.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
5473102B40
€ 7.00
3
0813362017
ref: 3
BEARING (12X32X10)
0813362017
€ 15.00
4
5471103B00
ref: 4
AXLE,FR
5471103B00
€ 53.50
5
5474002B40
ref: 5
SPACER,FR AXLE
5474002B40
€ 9.50
6
5922102B20
ref: 6
59221-02B21
DISC,FRONT BRAKE
5922102B20
€ 107.50
7
0912606009
ref: 7
SCREW(6X22)
0912606009
€ 2.00
8
0831931067
ref: 8
NUT
0831931067
€ 2.50
9
0821112204
ref: 9
WASHER
0821112204
€ 3.50
10
0831440123
ref: 10
08314-4012A
NUT,M12X1.25X1
0831440123
€ 2.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
0411120208
€ 1.50
12
5511002B70
ref: 12
TIRE,FR(70/100 17)
€ 132.50
12
5511002B70
ref: 12
TIRE,FR(70/100 17)
€ 132.50
13
5520002B70
ref: 13
TUBE ASSY,WHEEL INNER
€ 20.00
14
5526102B40
ref: 14
PROTECTOR,WHL INR TUBE
5526102B40
€ 3.50
15-1
5531102B00
ref: 15-1
RIM,FR WHEEL(1.40X17)
5531102B00
€ 183.50
15-2
5531102B10
ref: 15-2
RIM,FR WHEEL(17X1.40)
€ 164.00
16-1
5532002B00
ref: 16-1
SPOKE SET,FR WHEEL
5532002B00
€ 26.50
16-2
5532002B10
ref: 16-2
SPOKE SET,FR WHEEL
5532002B10
€ 45.50
17
6527028600
ref: 17
STOPPER,BEAD
6527028600
€ 26.50
18
0832201083
ref: 18
08322-0108A
WASHER
0832201083
€ 1.50
19
0831000083
ref: 19
08310-0008A
NUT
0831000083
€ 1.50
