REAR BRAKE (MODEL K2/K3/K4)

RM85 2002 (K2) USA (E03)

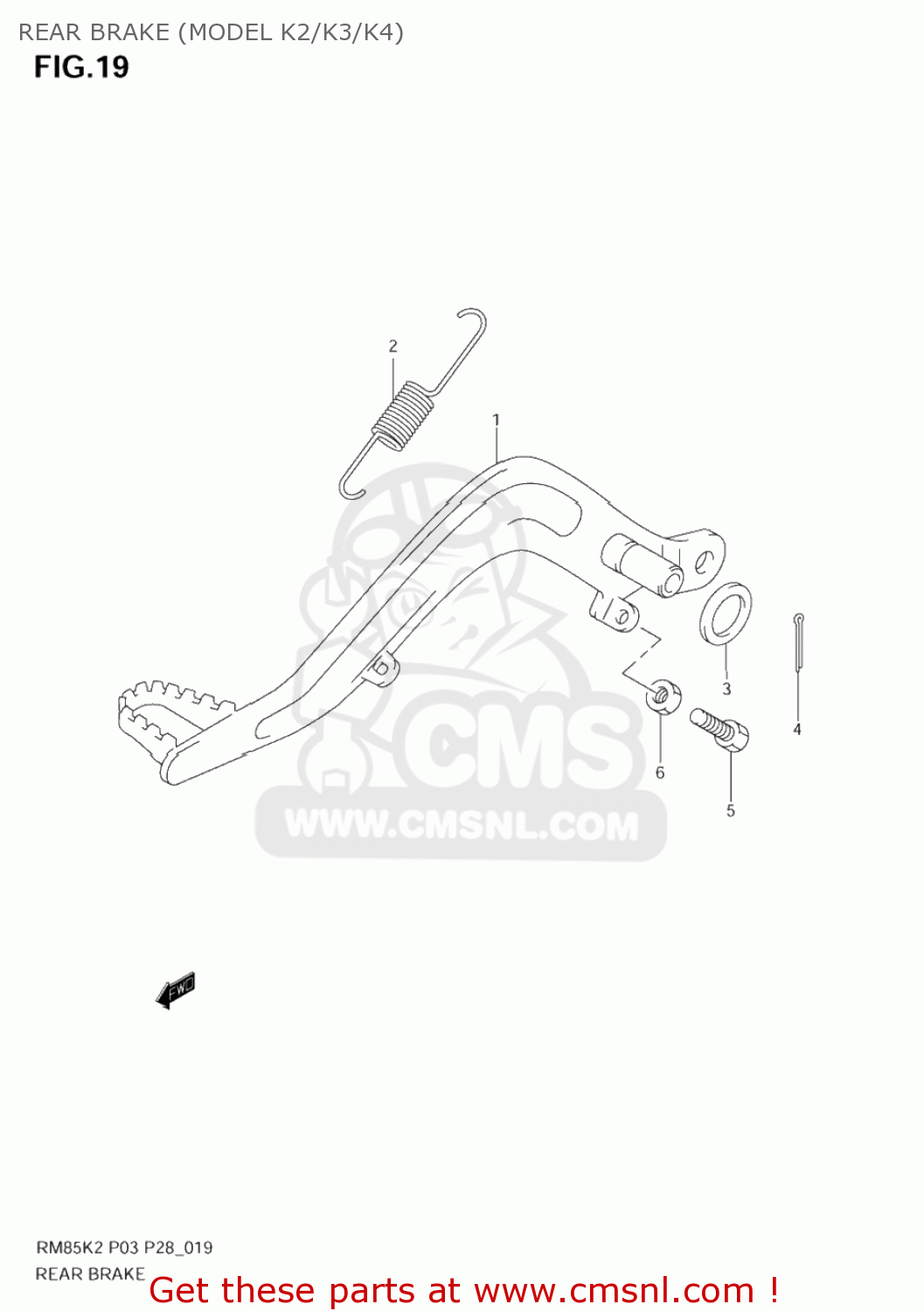

Rear brake (model k2/k3/k4) diagram RM85 2002 (K2) USA (E03)

REAR BRAKE (MODEL K2/K3/K4) RM85 2002 (K2) USA (E03)

REAR BRAKE (MODEL K2/K3/K4) RM85 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311003B00
ref: 1

PEDAL,BRAKE

€ 35.00

2

0944313024
ref: 2

SPRING

€ 6.00

3

0916015049
ref: 3

WASHER(15.5X24X2.3)

€ 2.50

4

0411125308
ref: 4
04111-2530A

PIN, COTTER

€ 1.50

5

0912806028
ref: 5

SCREW(6X23)

€ 2.00

6

0831000063
ref: 6
08310-0006A

NUT 6MM

€ 2.00
