AIR CLEANER

RM85L 2012 (L2) USA (E03)

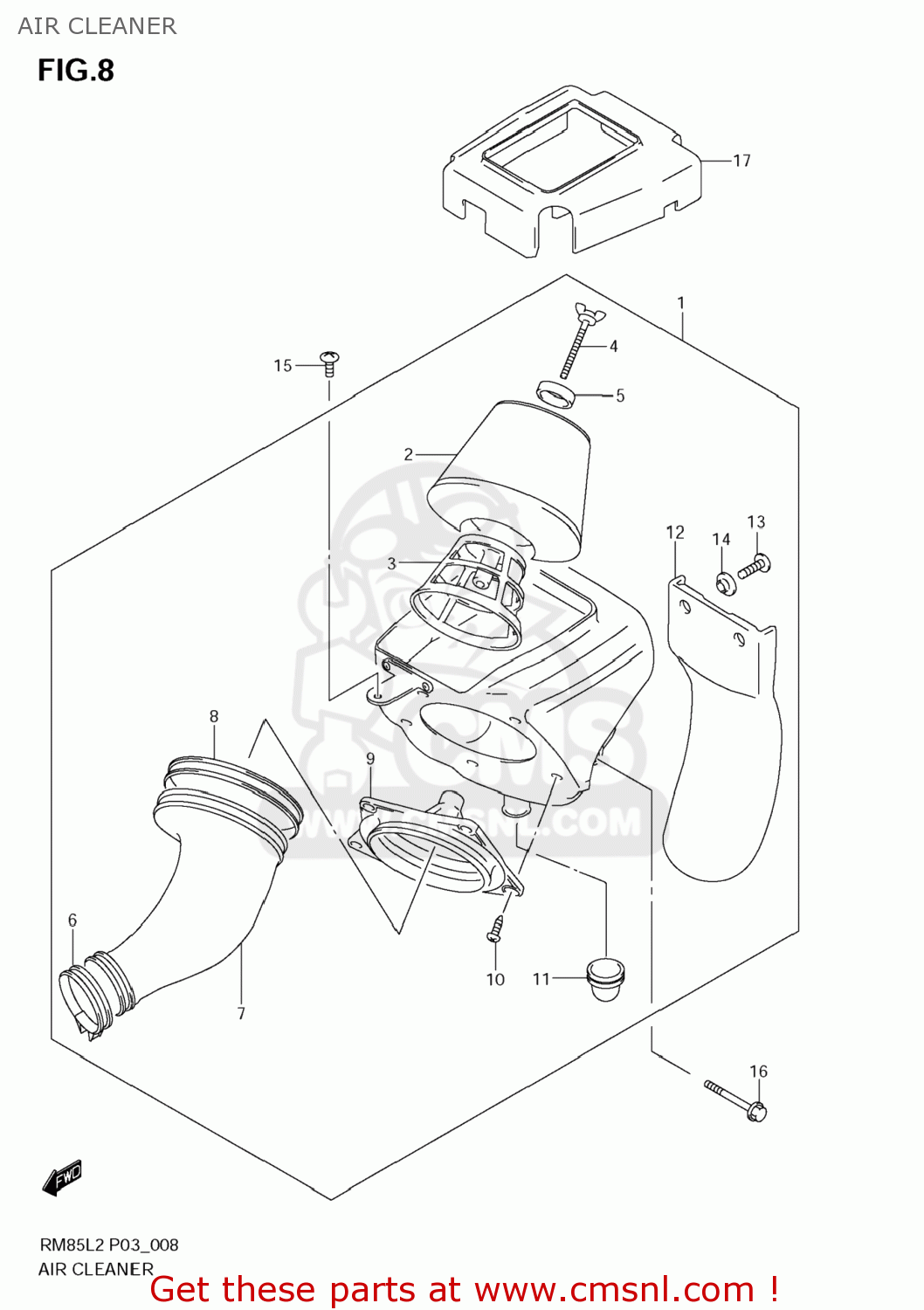

Air cleaner diagram RM85L 2012 (L2) USA (E03)

AIR CLEANER RM85L 2012 (L2) USA (E03)

AIR CLEANER RM85L 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370003B00
ref: 1

CLEANER ASSY,AIR

€ 162.50

2

1378002B00
ref: 2

FILTER ASSY

€ 24.50

3

1379102B00
ref: 3

HOLDER

€ 13.00

4

1383102B00
ref: 4

BOLT,WING

€ 4.00

5

1379213A01
ref: 5

WASHER,AIR CLEANER

€ 3.00

6

0940256901
ref: 6

CLAMP

€ 3.50

7

1388103B00
ref: 7

TUBE,OUTLET

€ 24.00

8

0940200303
ref: 8

CLAMP

€ 5.00

9

1379002B10
ref: 9

BASE,FILTER

€ 12.00

10

032410512A
ref: 10

SCREW

€ 1.50

11

1387318900
ref: 11

HOSE,AIR CLEANER DRAIN

€ 4.00

12

1373802B00
ref: 12

GUARD,MUD

€ 12.00

13

0214206167
ref: 13

SCREW

€ 2.00

14

1383802B00
ref: 14

COLLAR

€ 2.50

15

021420612B
ref: 15

SCREW

€ 2.00

16

0910306242
ref: 16

BOLT(6X45)

€ 4.00

17

1373902B20
ref: 17

MUDGUARD,B

€ 16.50
