STAND (RM85L)

RM85L 2012 (L2) USA (E03)

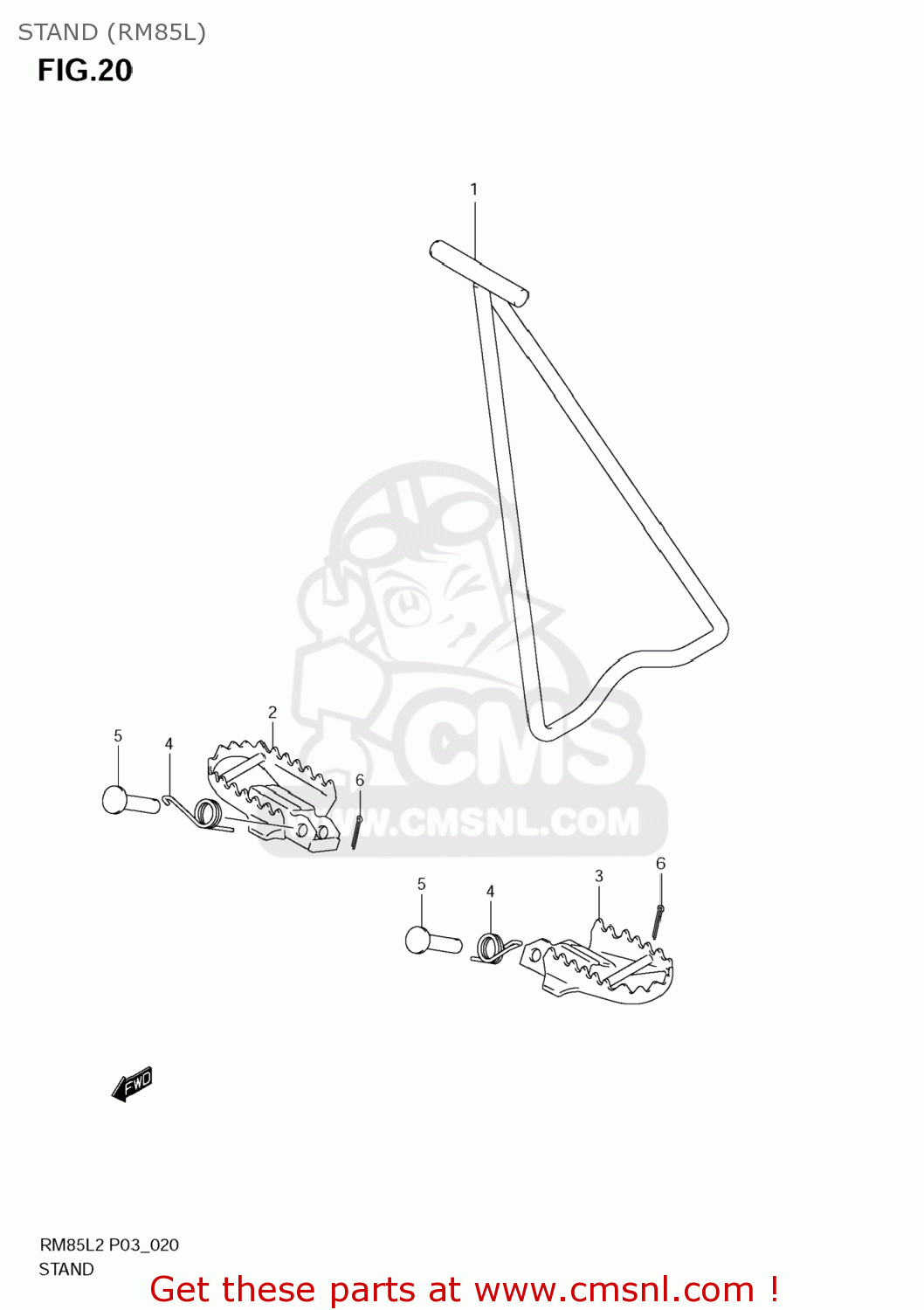

Stand (rm85l) diagram RM85L 2012 (L2) USA (E03)

STAND (RM85L) RM85L 2012 (L2) USA (E03)

STAND (RM85L) RM85L 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231003B20
ref: 1

STAND

€ 96.50

2

4355114D21
ref: 2

FOOTREST,R

€ 186.50

3

4356114D21
ref: 3

FOOTREST,L

€ 186.50

4

0944816032
ref: 4

SPRING

€ 2.00

5

0920010013
ref: 5

PIN

€ 2.50

6

0920401002
ref: 6

PIN

€ 1.50
