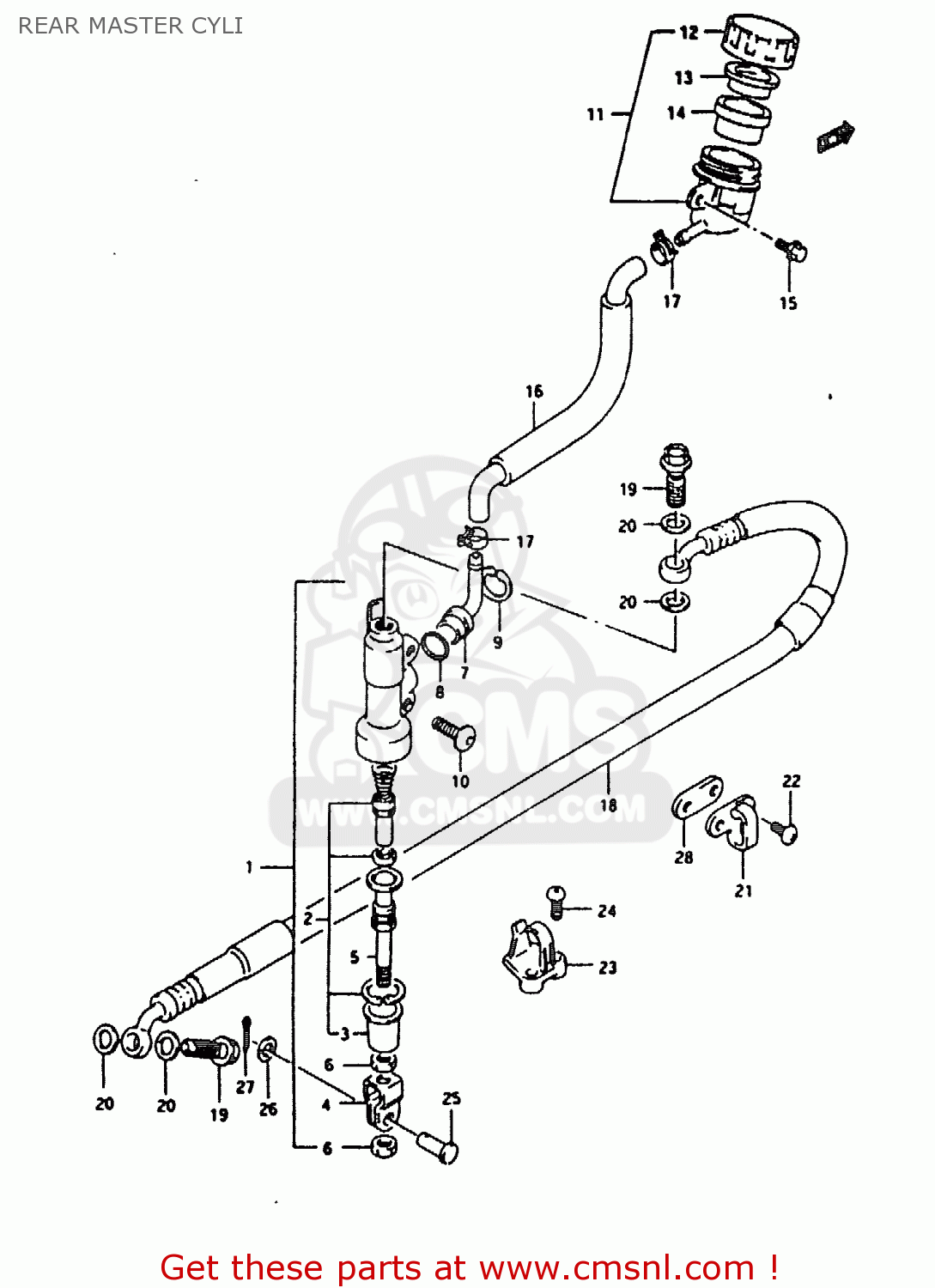

REAR MASTER CYLI

ref

part #

description

quantity

1

6960020C00
ref: 1

CYLINDER ASSY, REAR MASTER

€ 0.00

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967000B21
ref: 5

ROD,PUSH

€ 24.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10-1

0913906030
ref: 10-1
MODEL M

SCREW(6X16)

€ 3.50

10-2

0913906067
ref: 10-2
MODEL N/S/T

SCREW(6X16)

€ 3.00

11

6974003D10
ref: 11

TANK ASSY,RR BRAKE RESERVOIR

€ 72.50

12

6966903D10
ref: 12

CAP

€ 11.00

13

6966800B20
ref: 13

PLATE

€ 4.00

14

6966700B20
ref: 14

DIAPHRAGM

€ 9.50

15-1

0151706128
ref: 15-1
MODEL M

BOLT

€ 2.50

15-2

0154706127
ref: 15-2
MODEL N/S

BOLT

€ 2.00

15-3

0154706123
ref: 15-3
MODEL T

BOLT

€ 2.00

16

6973127C00
ref: 16

HOSE,TANK

€ 12.00

17

6973500B20
ref: 17

CLAMP,RESERVOIR HOSE

€ 3.00

18

6948005D10
ref: 18

HOSE,RR BRAKE

€ 58.00

19-1

0936010034
ref: 19-1
MODEL M/N

BOLT UNION

€ 5.00

19-2

0936010040
ref: 19-2
MODEL S

BOLT UNION

€ 5.00

19-3

0936010042
ref: 19-3
MODEL T

BOLT UNION

€ 5.00

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

6119627C20
ref: 21

GUIDE,RR BRAKE HOSE

€ 9.00

22

0214203163
ref: 22

SCREW

€ 0.00

23

6119605D00
ref: 23

GUIDE, BRAKE HOSE, REAR

€ 0.00

24

0211238163
ref: 24

SCREW

€ 0.00

25

0920008048
ref: 25

PIN(8X20)

€ 3.00

26

0916000074
ref: 26

WASHER

€ 0.00

27

0411120158
ref: 27

PIN

€ 1.50

28

6119727C00
ref: 28

SEAT,RR BRAKE HOSE GUIDE

€ 5.00
