prices are in EUR

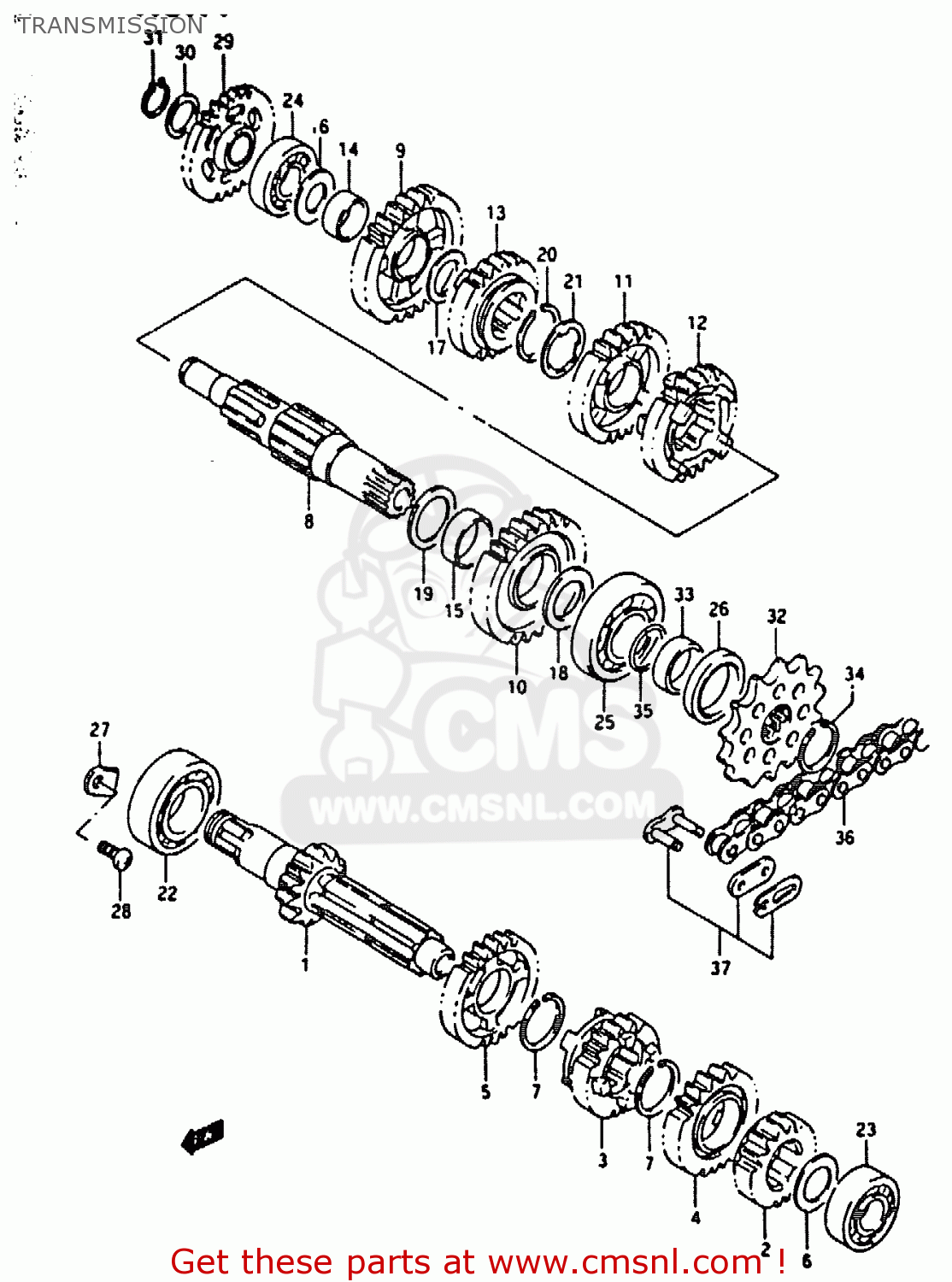

ref
part #
description
quantity
1-1
SHAFT,COUNTER
1-2
SHAFT,COUNTER(NT:14)
2
GEAR,2ND DRIVE(NT:15)
3
GEAR,THIRD DRIVE (NT:16)
4
GEAR,FOURTH DRIVE (NT:22)
5
GEAR,5TH DRIVE(NT:22)
6
WASHER,THRUST
7
CIRCLIP
8
SHAFT,DRIVE
9
GEAR,1ST DRIVEN(NT:32)
10
GEAR,2ND DRIVEN(NT:26)
11
GEAR,3RD DRIVEN(NT:22)
12
GEAR,FOURTH DRIVEN (NT:24)
13
GEAR,FIFTH DRIVEN (NT:19)
14
BUSH(20X24X10)
15
BUSH(25X28X10)
17
WASHER, 1ST DRIVEN GEAR NO.2
19
WASHER
20
CIRCLIP
21
WASHER,LOCK
23
BEARING(17X40X12)
24
BEARING(17X40X12)
25
BEARING(22X56X15)
26
SEAL,OIL(28X38X6)
27
RETAINER
28
SCREW
29
GEAR,KICK STARTER IDLE(NT:27)
30
SHIM
31-1
CIRCLIP
31-2
CIRCLIP,17MM
32-1
SPROCKET,ENGINE
32-2
SPROCKET,ENGINE (NT:13)
32-3
SPROCKET(NT:15)
33
SPACER,ENGINE SPROCKET
34
CIRCLIP
35
O RING(D:1.9,ID:21.8)
