MAGNETO
RS250 1981 (X) USA (E03)

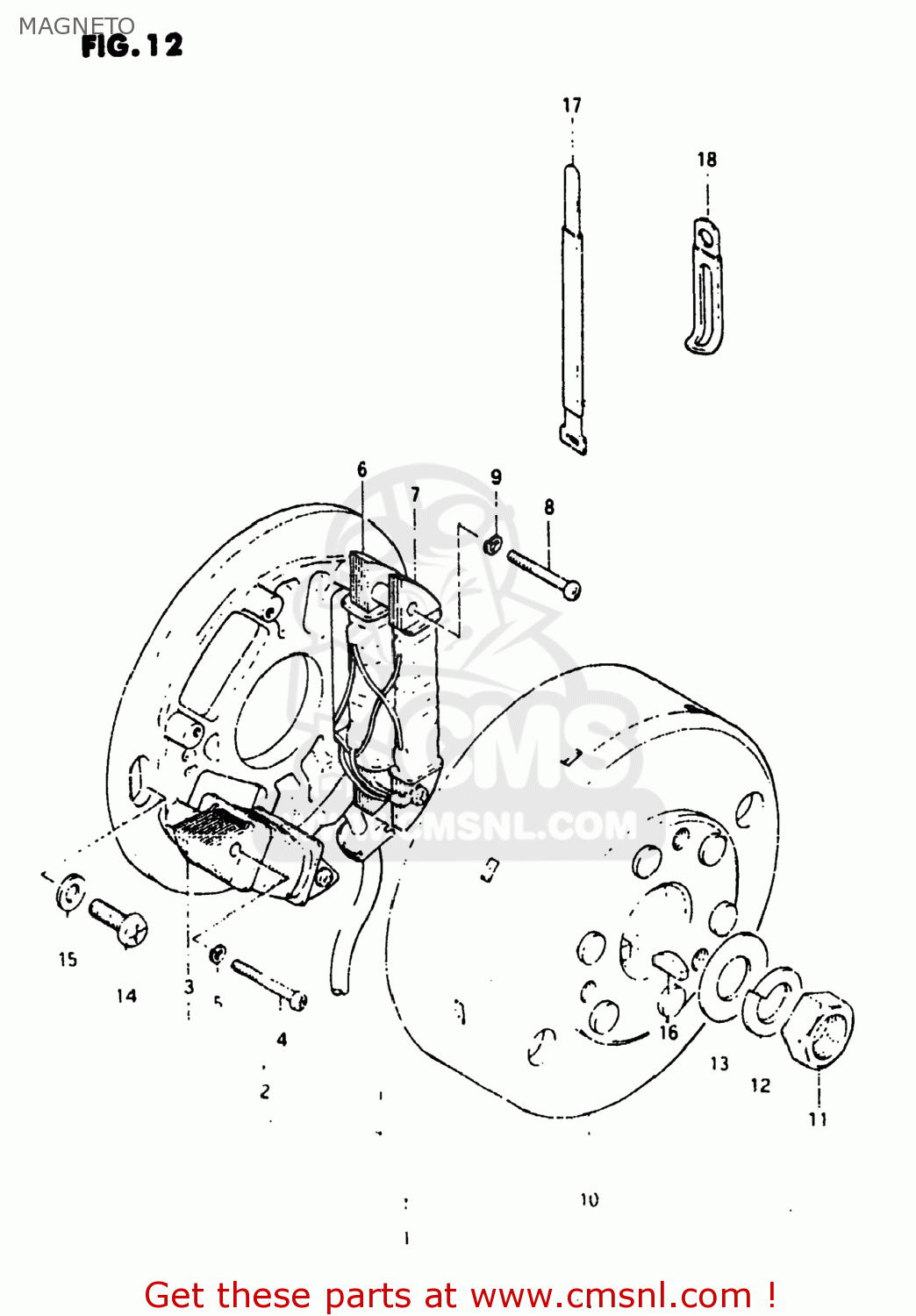

Magneto diagram RS250 1981 (X) USA (E03)
MAGNETO RS250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210040620
ref: 1
MAGNETO ASSEMBLY
€ 349.00
2
3210140620
ref: 2
STATOR ASSEMBLY
€ 349.00
3
3212040620
ref: 3
32101-40620
COIL,LIGHTING
€ 349.00
4
0211204308
ref: 4
09125-04023
SCREW (4X30)
€ 1.50
5
0832121048
ref: 5
08321-0104A
LOCK WASHER
€ 2.00
6
3214040620
ref: 6
COIL,PRIMARY
€ 72.00
7
3215040620
ref: 7
COIL,PULSER
€ 60.00
8
0211204358
ref: 8
02112-0435B
SCREW
€ 2.00
9
0832121048
ref: 9
08321-0104A
LOCK WASHER
€ 2.00
10
3210240620
ref: 10
32102-40630
ROTOR ASSEMBLY
€ 349.00
11
0914010003
ref: 11
09140-10041
NUT (10MM)
€ 3.50
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0832221108
ref: 13
08322-01107
WASHER
€ 2.50
14
0211206168
ref: 14
02112-06167
SCREW
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0834131049
ref: 16
09420-04008
KEY 4MM
€ 3.50
17
0940711301
ref: 17
09407-18301
CLAMP L:110
€ 6.00
18
0940406412
ref: 18
09404-06432
CLAMP
€ 2.50
