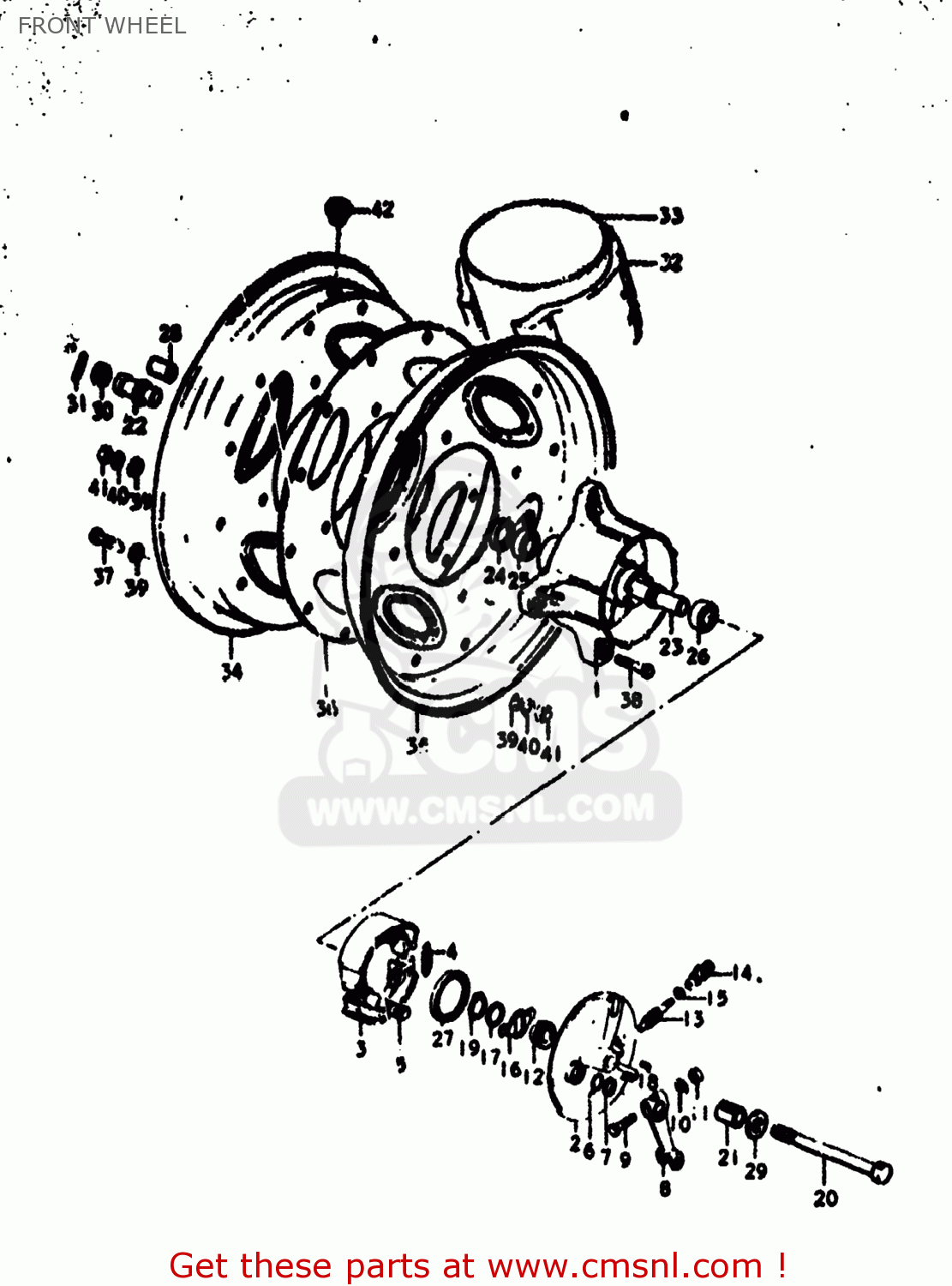

FRONT WHEEL

ref

part #

description

quantity

1-1

5411027100
ref: 1-1

DRUM,FRONT HUB

€ 157.00

1-2

5411027300
ref: 1-2

HUB,FRONT

€ 77.50

2-1

5421028000
ref: 2-1

PANEL,FRONT HUB

€ 38.00

2-2

5421028400
ref: 2-2

PANEL,FRONT HUB

€ 69.00

3-1

5441001004
ref: 3-1
54400-35860

SHOE,BRAKE

€ 39.00

3-2

5441001005
ref: 3-2
54400-35860

SHOE,BRAKE

€ 39.00

3-3

5441007001
ref: 3-3
54401-07810

SHOE,BRAKE

€ 35.00

3-4

5441007002
ref: 3-4
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444128001
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444107001
ref: 5-2

CAM,FRONT BRAKE

€ 19.50

5-3

5444101002
ref: 5-3

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8-1

5445103602
ref: 8-1

LEVER,FRONT BRAKE CAM

€ 10.50

8-2

5445103002
ref: 8-2

LEVER,FR BRAKE CAM

€ 10.50

8-3

5445127300
ref: 8-3

LEVER,FRONT BRAKE CAM

€ 22.00

8-4

5445128400
ref: 8-4

LEVER,FRONT BRAKE CAM

€ 22.00

9

0910006050
ref: 9
09100-06150

BOLT

€ 1.50

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831111068
ref: 11
08310-00067

NUT

€ 2.50

12

5461125000
ref: 12
54611-25002

GEAR,SPEEDOMETER

€ 15.00

13

5462103000
ref: 13
54621-03001

PINION,SPEEDOMETER

€ 15.50

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17

WASHER(18.5X24X1)

€ 2.00

18

0913403101
ref: 18
09134-03101-A05

SCREW

€ 1.50

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20-1

5471127300
ref: 20-1

AXLE,FRONT

€ 6.50

20-2

5471127303
ref: 20-2

AXLE,FRONT

€ 18.00

21-1

5475127300
ref: 21-1

SPACER,FRONT AXLE,LEFT

€ 0.00

21-2

0918012062
ref: 21-2

SPACER (12X20X41)

€ 13.00

22-1

5474027300
ref: 22-1

SPACER,FRONT AXLE,RIGHT

€ 4.50

22-2

5474027301
ref: 22-2

SPACER,FRONT AXLE,RIGHT

€ 11.50

23

5473027100
ref: 23

SPACER,FRONT HUB BEARING

€ 12.50

24

0928518002
ref: 24

SEAL,OIL(18X32X7)

€ 4.50

25

0811362010
ref: 25
08113-62017

BEARING

€ 11.00

26-1

0814362010
ref: 26-1
08143-62017

BEARING, LH

€ 11.50

26-2

0814363010
ref: 26-2
08143-63017

BEARING, RH

€ 14.50

27-1

0928543001
ref: 27-1
09283-43004

OIL SEAL (43X58X7)

€ 10.00

27-2

0928348001
ref: 27-2

OIL SEAL

€ 5.50

28

0918012061
ref: 28

SPACER (12X20X44)

€ 4.50

29

0832221128
ref: 29
08322-01127

WASHER

€ 2.00

30

0831431128
ref: 30
08314-3112A

NUT 12MM

€ 2.00

31

0411130308
ref: 31
04111-3030A

COTTER PIN

€ 1.50

32

5510027620
ref: 32

TIRE,FR

€ 200.50

33

5520027330
ref: 33

TUBE,INNER

€ 64.00

34-1

5531227300046
ref: 34-1

RIM,WHEEL

€ 61.00

34-2

5531227300126
ref: 34-2

RIM,WHEEL

€ 61.00

35-1

5531327300046
ref: 35-1

RIM,WHEEL,OUTER

€ 48.00

35-2

5531327300126
ref: 35-2
55313-27301-126

RIM,WHEEL,OUTER

€ 48.00

36

5531527300
ref: 36

NO PRODUCT DESCRIPTION AVAILABLE

€ 3.00

37

0112208168
ref: 37
01500-0816B

BOLT

€ 2.00

38

0112208258
ref: 38
01500-08257

BOLT

€ 2.50

39

0832211088
ref: 39
08322-01087

WASHER

€ 2.00

40

0832121088
ref: 40
08321-01087

LOCK WASHER

€ 2.00

41

0831211088
ref: 41
08310-00087

NUT

€ 2.00

42

0930508006
ref: 42
09320-08065

BUSHING

€ 2.00

all assemblies
