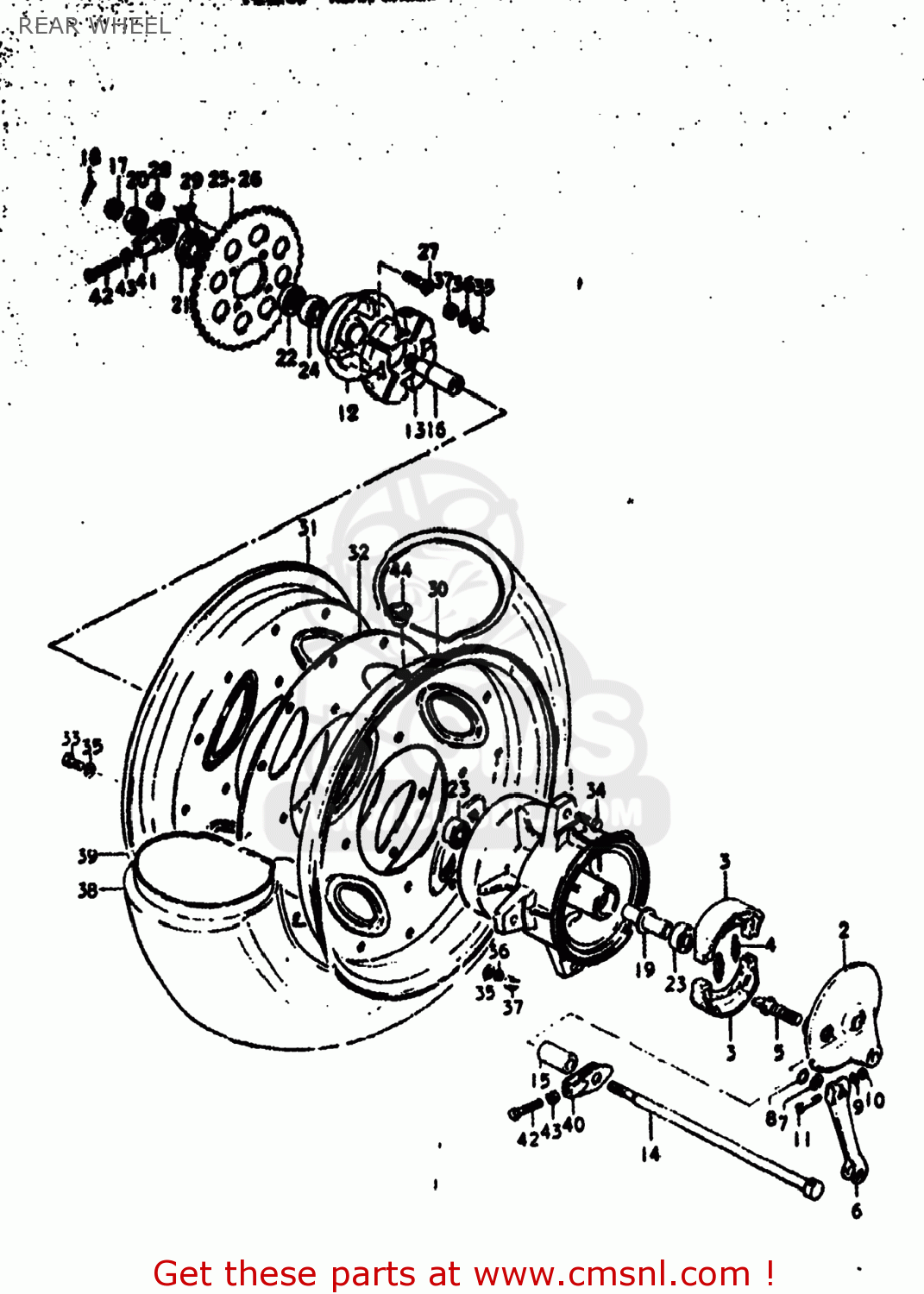

REAR WHEEL

ref

part #

description

quantity

1

6411027301
ref: 1

HUB,REAR

€ 87.50

2

6421007601
ref: 2
64210-07605

PANEL,REAR HUB

€ 88.00

3-1

5441007001
ref: 3-1
54401-07810

SHOE,BRAKE

€ 35.00

3-2

5441007002
ref: 3-2
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444101001
ref: 5-1
54441-01002

CAM,FRONT BRAKE

€ 19.50

5-2

5444107001
ref: 5-2

CAM,FRONT BRAKE

€ 19.50

5-3

5444101002
ref: 5-3

CAM,FR BRAKE

€ 19.50

6-1

6445127621
ref: 6-1

LEVER,REAR BRAKE CAM

€ 22.50

6-2

6445127301
ref: 6-2

LEVER,REAR BRAKE CAM

€ 22.50

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0928012001
ref: 8

O RING(D:2.5,ID:11.4)

€ 2.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006050
ref: 11
09100-06150

BOLT

€ 1.50

12

6461107000
ref: 12

DRUM,RR SPROCKET

€ 47.00

13

6465107000
ref: 13
64651-07001

CUSHION,REAR DRUM

€ 16.00

14

6471127300
ref: 14

AXLE,REAR

€ 19.50

15

0918015002
ref: 15

SPACER(15.2X26X33)

€ 5.00

16

6476127300
ref: 16

SHAFT,SPROCKET MOUNTING

€ 13.00

17

0831431128
ref: 17
08314-3112A

NUT 12MM

€ 2.00

18

0411130308
ref: 18
04111-3030A

COTTER PIN

€ 1.50

19

6473027301
ref: 19

SPACER,REAR HUB BEARING

€ 0.00

20-1

0914018001
ref: 20-1
09140-18501

NUT

€ 3.00

20-2

0914018005
ref: 20-2
09140-18501

NUT

€ 3.00

21

6462027300
ref: 21

SPACER

€ 0.00

22

0928328002
ref: 22
09285-28001

OIL SEAL

€ 11.50

23

0814362020
ref: 23
08143-62027

BEARING

€ 12.50

24

0811362040
ref: 24
09262-20069

Bearing

€ 28.00

25-1

6451127300
ref: 25-1
64511-25720

SPROCKET,REAR 51T

€ 35.00

25-2

6451125720
ref: 25-2

SPROCKET,REAR 51T

€ 35.00

25-3

6451125000
ref: 25-3
64511-25790

SPROCKET,REAR

€ 64.50

25-4

6451125730
ref: 25-4

SPROCKET,REAR 52T

€ 39.00

25-5

6451125740
ref: 25-5

SPROCKET,REAR 53T

€ 42.50

26-1

6451136100
ref: 26-1

SPROCKET,REAR 40T

€ 69.50

26-2

6451136600
ref: 26-2

SPROCKET,REAR (NT:38)

€ 64.00

26-3

6451136610
ref: 26-3

SPROCKET,REAR 42T

€ 63.00

27

0910508001
ref: 27

BOLT(8X33.5)

€ 2.50

28-1

0831231088
ref: 28-1
08310-00087

NUT

€ 2.00

28-2

0914008010
ref: 28-2

NUT

€ 2.00

29

0916908012
ref: 29

WASHER

€ 2.00

30-1

6531227300046
ref: 30-1

RIM,WHEEL

€ 54.00

30-2

6531227300126
ref: 30-2
65312-27301-126

RIM,WHEEL

€ 54.00

31-1

6531327300146
ref: 31-1

RIM, REAR WHEEL LH K,L,M; 5.000-1

€ 0.00

31-2

6531327300126
ref: 31-2

RIM.REAR WHEEL

€ 44.50

32

6531527300
ref: 32

NO PRODUCT DESCRIPTION AVAILABLE

€ 3.50

33

0112208168
ref: 33
01500-0816B

BOLT

€ 2.00

34

0910508004
ref: 34

BOLT 8X28

€ 4.00

35

0832211088
ref: 35
08322-01087

WASHER

€ 2.00

36

0832121088
ref: 36
08321-01087

LOCK WASHER

€ 2.00

37

0831211088
ref: 37
08310-00087

NUT

€ 2.00

38

6510027600
ref: 38

TIRE

€ 224.50

39

6520027330
ref: 39

TUBE,INNER

€ 72.50

40

6141028002A
ref: 40
61410-28004

ADJUSTER,CHAIN

€ 8.00

41

6142028002
ref: 41
61420-28003

ADJUSTER,CHAIN

€ 11.00

42

0910008099
ref: 42
09100-08146

BOLT

€ 2.50

43

0831231088
ref: 43
08310-00087

NUT

€ 2.00

44

0930508006
ref: 44
09320-08065

BUSHING

€ 2.00
