PISTON - CRANKSHAFT
RV90 1973 (K) USA (E03)

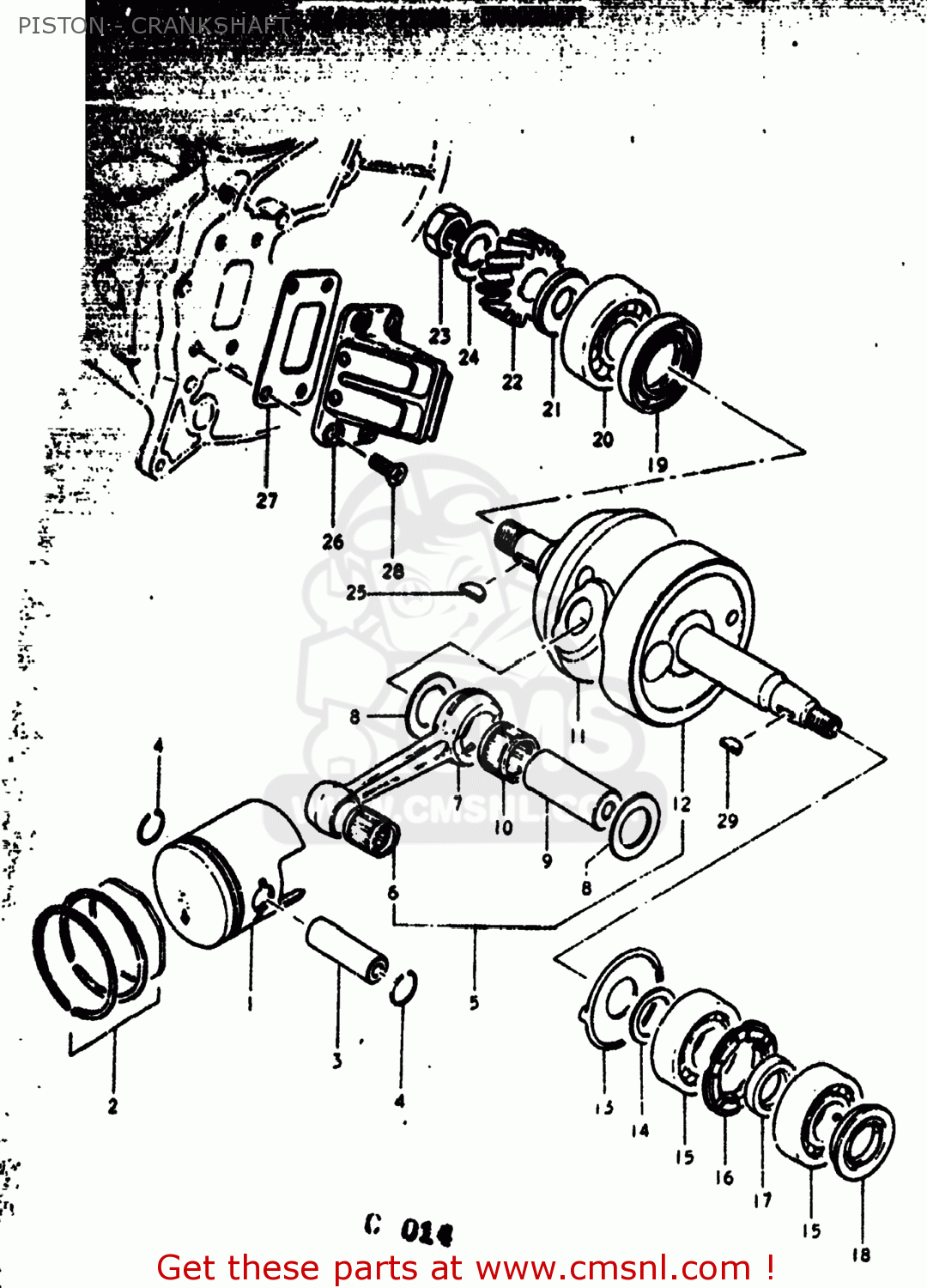

Piston - crankshaft diagram RV90 1973 (K) USA (E03)
PISTON - CRANKSHAFT RV90 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211023000
ref: 1-1
12110-23003
PISTON STD
€ 52.00
1-2
1211023001
ref: 1-2
12110-23003
PISTON
€ 52.00
1-3
1211023002
ref: 1-3
12110-23003
PISTON
€ 52.00
1-4
1211023700
ref: 1-4
12100-23000-050
PISTON (OS:0.5)
€ 77.50
1-5
1211023701
ref: 1-5
12100-23000-050
PISTON
€ 77.50
1-6
1211023710
ref: 1-6
12100-23000-100
PISTON (OS: 1.0)
€ 72.50
1-7
1211023711
ref: 1-7
12100-23000-100
PISTON
€ 72.50
2-1
1214023802
ref: 2-1
12140-23470
RING SET,PISTON
€ 50.00
2-2
1210023811
ref: 2-2
12140-23470
PISTON SET
€ 50.00
2-3
1210028830
ref: 2-3
12140-23470
TOP END KIT,ENGINE
€ 50.00
2-4
1214023808
ref: 2-4
12140-23802-050
RING SET,PISTON
€ 20.50
2-5
1210023820
ref: 2-5
12140-28630-050
PISTON SET
€ 50.50
2-6
1214028640
ref: 2-6
12140-28630-050
RING SET,PISTON
€ 50.50
2-7
1214023809
ref: 2-7
12140-23802-100
RING SET,PISTON
€ 52.00
2-8
1210023830
ref: 2-8
12140-23010-100
PISTON SET
€ 52.00
2-9
1214023711
ref: 2-9
12140-23010-100
RING SET,PISTON
€ 52.00
3
1215107000
ref: 3
12151-23400
PIN,PISTON 14MM
€ 10.00
4
0938114001
ref: 4
RING,SNAP 14MM
€ 1.50
5
1200023801
ref: 5
12200-23001
CRANKSHAFT SET
€ 385.00
6
0926314001
ref: 6
09263-14022
BEARING
€ 10.00
7
1216123000
ref: 7
ROD,CONNECTING
€ 66.50
8
0916019002
ref: 8
09160-19001
WASHER
€ 3.50
9
1221103300
ref: 9
PIN,CRANK
€ 26.50
10
0926319001
ref: 10
09263-19009
BEARING
€ 15.00
11
1222123060
ref: 11
CRANKSHAFT, RH K,L,M,A,B
€ 0.00
12
1226123000
ref: 12
12261-23001
CRANKSHAFT,LEFT
€ 72.00
13-1
1251123000
ref: 13-1
PLATE,CRANKSHAFT OIL GUIDE
€ 3.00
13-2
1251123001
ref: 13-2
PLATE,CSHAFT OIL GUIDE
€ 7.00
14
0822120285
ref: 14
09181-20158
THRUST WASHER
€ 2.50
15
0926220019
ref: 15
09262-20069
BEARING
€ 28.00
16
1235323000
ref: 16
SPACER,CRANKSHAFT NO.1
€ 0.00
17
0918020037
ref: 17
SPACER(20X28X7)
€ 7.50
18
0928320011
ref: 18
09283-20034
OIL SEAL
€ 6.00
19
0928326007
ref: 19
SEAL,OIL(26X52X8)
€ 7.50
20
0926220009
ref: 20
09262-20073
BEARING
€ 19.00
21
0918016011
ref: 21
SPACER(16X29.5X4.5)
€ 2.50
22-1
2111123000
ref: 22-1
GEAR,PRIMARY DRIVE
€ 15.00
22-1
2111123000
ref: 22-1
GEAR,PRIMARY DRIVE
€ 15.00
22-2
2111123001
ref: 22-2
21111-23002
GEAR,PRIMARY DRIVE
€ 15.00
23
0914014002
ref: 23
NUT
€ 4.00
24-1
0916614003
ref: 24-1
WASHER
€ 2.50
24-2
0916014009
ref: 24-2
WASHER(14.5X29X2.3)
€ 3.50
25
0834131049
ref: 25
09420-04008
KEY 4MM
€ 3.50
26-1
1315023010
ref: 26-1
VALVE ASSEMBLY,REED
€ 50.50
26-2
1315027110
ref: 26-2
13150-27112
VALVE ASSEMBLY,REED
€ 50.50
27
1315623000
ref: 27
13156-23010
GASKET,REED VALVE (MCA)
€ 4.00
28
0212105167
ref: 28
02122-05167
SCREW
€ 2.00
29
0834131039
ref: 29
KEY
€ 2.00
