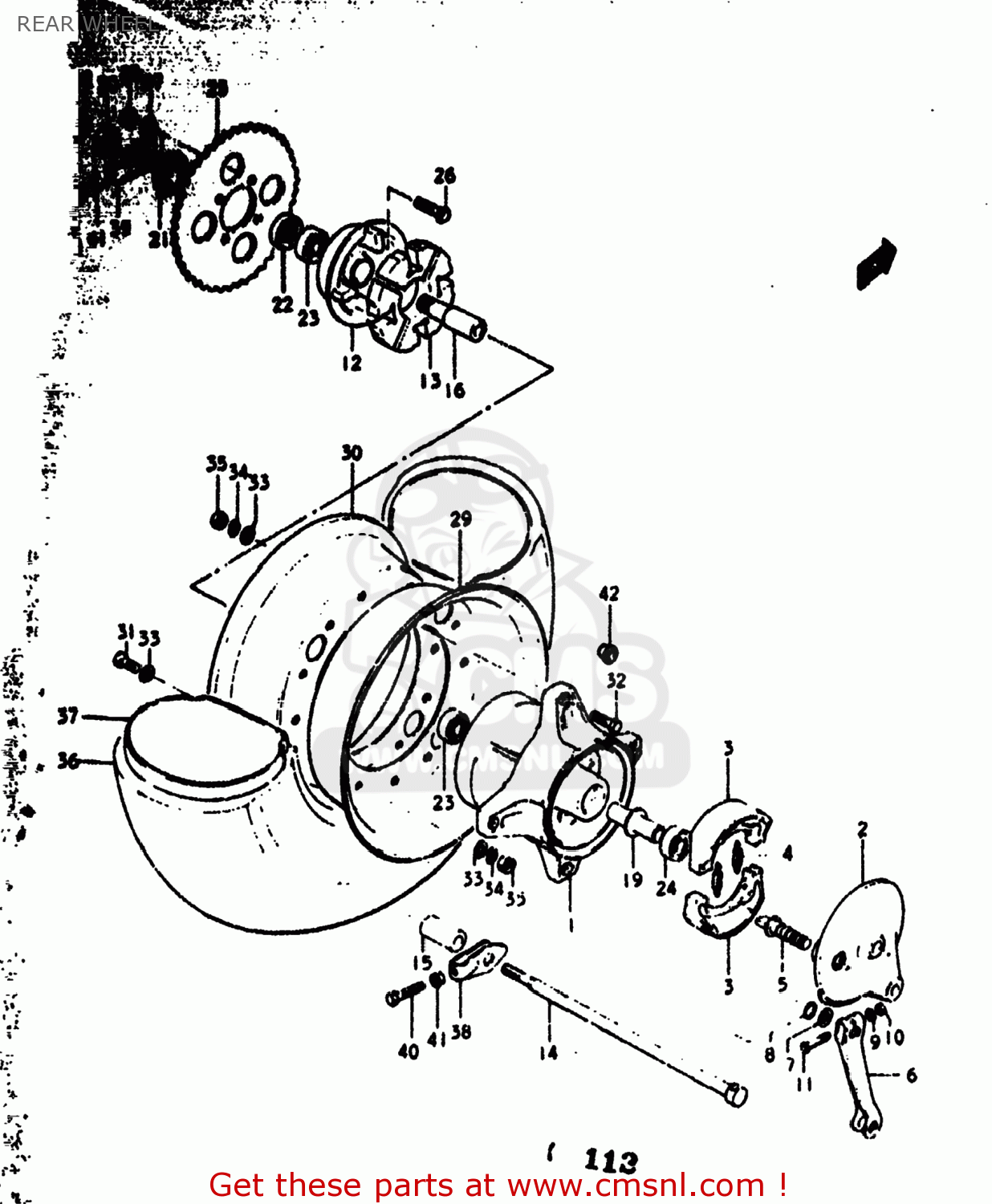

REAR WHEEL

ref

part #

description

quantity

1

6411027100
ref: 1
64110-27101

HUB,REAR

€ 212.00

2

6421001004
ref: 2

PANEL,REAR HUB

€ 114.00

3

5441001005
ref: 3
54400-35860

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444101002
ref: 5

CAM,FR BRAKE

€ 19.50

6-1

6445127600
ref: 6-1

LEVER,REAR BRAKE CAM

€ 19.00

6-2

6445127100
ref: 6-2

LEVER,RR BRAKE CAM

€ 19.00

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0928012001
ref: 8

O RING(D:2.5,ID:11.4)

€ 2.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006050
ref: 11
09100-06150

BOLT

€ 1.50

12-1

6461127100
ref: 12-1
64611-01001

DRUM,REAR SPROCKET MOUNT

€ 56.50

12-2

6461101001
ref: 12-2

DRUM,REAR SPROCKET MOUNT

€ 56.50

13

6465101000
ref: 13
64651-010B1

CUSHION,REAR DRUM

€ 9.00

14

6471127100
ref: 14

AXLE,RR

€ 39.50

15

0918012046
ref: 15

SPACER (12.2X22X37.7)

€ 6.00

16

6476127100
ref: 16

SHAFT,RR SPROCKET DRUM

€ 25.00

17

0831411108
ref: 17
08314-3110A

NUT

€ 1.50

18

0411120308
ref: 18
04111-2030A

COTTER PIN

€ 1.00

19

6473027100
ref: 19

SPACER,REAR HUB BEARING

€ 19.50

20

0914016005
ref: 20

NUT

€ 4.50

21

6462027100
ref: 21

SPACER,REAR SPROCKET DRUM

€ 9.50

22

0928525001
ref: 22
09285-25003

SEAL OIL(25X40X6)

€ 12.50

23

0814362010
ref: 23
08143-62017

BEARING, LH

€ 11.50

24

0811362030
ref: 24
09262-17023

BEARING

€ 14.00

25-1

6451127100
ref: 25-1

SPROCKET,RR

€ 42.50

25-2

6451127730
ref: 25-2

SPROCKET,REAR

€ 28.00

25-3

6451127740
ref: 25-3
64511-27720

SPROCKET,REAR (NT:50)

€ 31.00

26

0910508001
ref: 26

BOLT(8X33.5)

€ 2.50

27

0916908011
ref: 27

WASHER

€ 2.50

28-1

0914008010
ref: 28-1

NUT

€ 2.00

28-2

0831211088
ref: 28-2
08310-00087

NUT

€ 2.00

29-1

5531227100046
ref: 29-1

RIM,WHEEL,RIGHT

€ 120.50

29-2

5531227100126
ref: 29-2
55312-27101-126

RIM,WHEEL,RIGHT

€ 120.50

30-1

5531327100046
ref: 30-1

RIM,WHEEL,OUTER

€ 120.50

30-2

5531327100126
ref: 30-2
55312-27101-126

RIM,WHEEL,OUTER

€ 120.50

31

0112208168
ref: 31
01500-0816B

BOLT

€ 2.00

32

0112208258
ref: 32
01500-08257

BOLT

€ 2.50

33

0832211088
ref: 33
08322-01087

WASHER

€ 2.00

34

0832121088
ref: 34
08321-01087

LOCK WASHER

€ 2.00

35

0831211088
ref: 35
08310-00087

NUT

€ 2.00

36

5510027610
ref: 36

TIRE. (BRIDGESTONE)

€ 181.50

37

5520027130
ref: 37

TUBE,INNER

€ 57.00

38-1

6141027100
ref: 38-1
61410-26000

ADJUSTER,CHAIN

€ 41.50

38-2

6141026000
ref: 38-2

ADJUSTER,CHAIN,R

€ 41.50

39-1

6142027100
ref: 39-1
61420-26000

ADJUSTER,CHAIN

€ 37.50

39-2

6142026000
ref: 39-2

ADJUSTER,CHAIN,L

€ 37.50

40

0910006065
ref: 40

BOLT(6X38)

€ 2.50

41

0831131088
ref: 41
08310-00087

NUT

€ 2.00

42

0930508006
ref: 42
09320-08065

BUSHING

€ 2.00

all assemblies
