RV90 1977 (B) USA (E03)

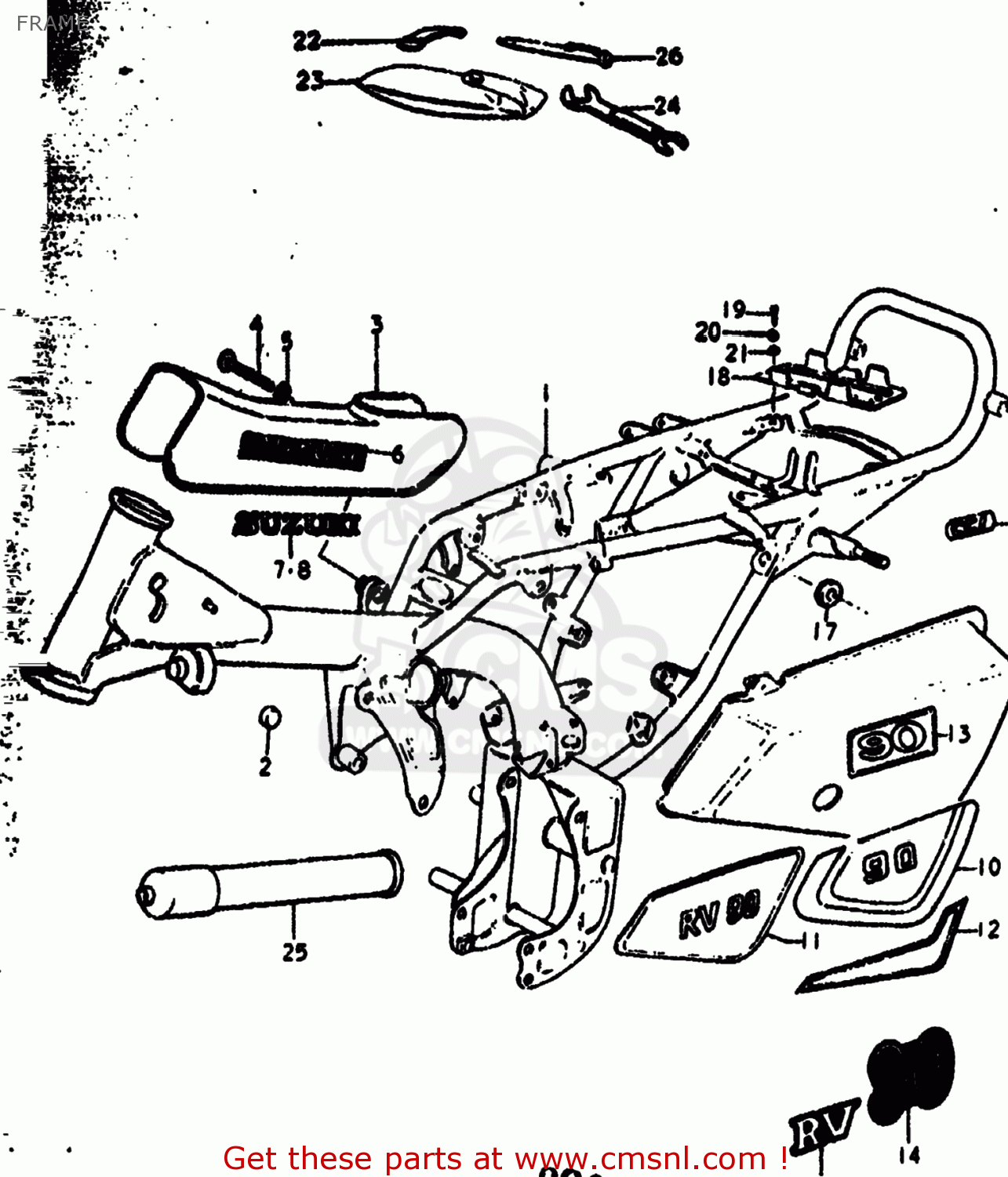

Frame diagram RV90 1977 (B) USA (E03)
FRAME RV90 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110027101019
ref: 1-1
41100-27104-019
FRAME
€ 230.50
1-2
4110027103019
ref: 1-2
41100-27104-019
FRAME
€ 230.50
2
0932005007
ref: 2
CUSHION
€ 2.00
3-1
4417127101293
ref: 3-1
44171-27101
COVER
€ 44.50
3-2
4417127101189
ref: 3-2
44171-27101
COVER
€ 44.50
3-3
4417127101797
ref: 3-3
44171-27101
COVER
€ 44.50
3-4
4417127101163
ref: 3-4
44171-27101
COVER
€ 44.50
4
0214106357
ref: 4
02142-06357
SCREW
€ 2.00
5
0916906010
ref: 5
WASHER
€ 3.00
6
6811127000
ref: 6
EMBLEM,SUB FUEL TANK
€ 8.50
7
5811126610742
ref: 7
EMBLEM, FRAME COVER M,A
€ 0.00
8
6811127610019
ref: 8
EMBLEM,FRAME COVER,FRONT
€ 7.50
9-1
4721127600293
ref: 9-1
47211-27600
COVER,FRAME,LEFT
€ 40.50
9-2
4721127600189
ref: 9-2
47211-27600
COVER,FRAME,LEFT
€ 40.50
9-3
4721127600797
ref: 9-3
47211-27600
COVER,FRAME,LEFT
€ 40.50
9-4
4721127600163
ref: 9-4
47211-27600
COVER,FRAME,LEFT
€ 40.50
10
6814627600975
ref: 10
TAPE,FRAME COVER
€ 0.00
11
6814627630991
ref: 11
TAPE,FRAME COVER
€ 0.00
12
6814627100538
ref: 12
TAPE,FRAME COVER
€ 0.00
13
6814127600
ref: 13
EMBLEM,FRAME COVER
€ 0.00
14
6814127640
ref: 14
EMBLEM,FRAME COVER,LEFT
€ 3.50
15
6814127660
ref: 15
EMBLEM,RV
€ 9.00
16
6817126000
ref: 16
EMBLEM,CCIS
€ 4.00
17
0932008013
ref: 17
CUSHION
€ 4.00
18-1
4155127100
ref: 18-1
41550-27101
HOLDER,TOOL
€ 6.50
18-2
4155027101
ref: 18-2
HOLDER,TOOL
€ 6.50
19
0211206128
ref: 19
02112-06127
SCREW 6X12
€ 2.00
20
0832121068
ref: 20
08321-01067
LOCK WASHER
€ 2.50
21
0832211068
ref: 21
08322-0106B
WASHER 6MM
€ 2.00
22
0946200033
ref: 22
BAND
€ 6.50
23
0980000108
ref: 23
09800-21028
TOOL SET
€ 43.50
24
0993020111
ref: 24
WRENCH, CONTACT POINT
€ 22.50
24
0993020111
ref: 24
WRENCH, CONTACT POINT
€ 22.50
25
0982100004
ref: 25
INFLATOR, AIR
€ 66.00
25
0982100004
ref: 25
INFLATOR, AIR
€ 66.00
26
0982000002
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 18.50
26
0982000002
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 18.50
