REAR COMBINATION LAMP
RV90 1977 (B) USA (E03)

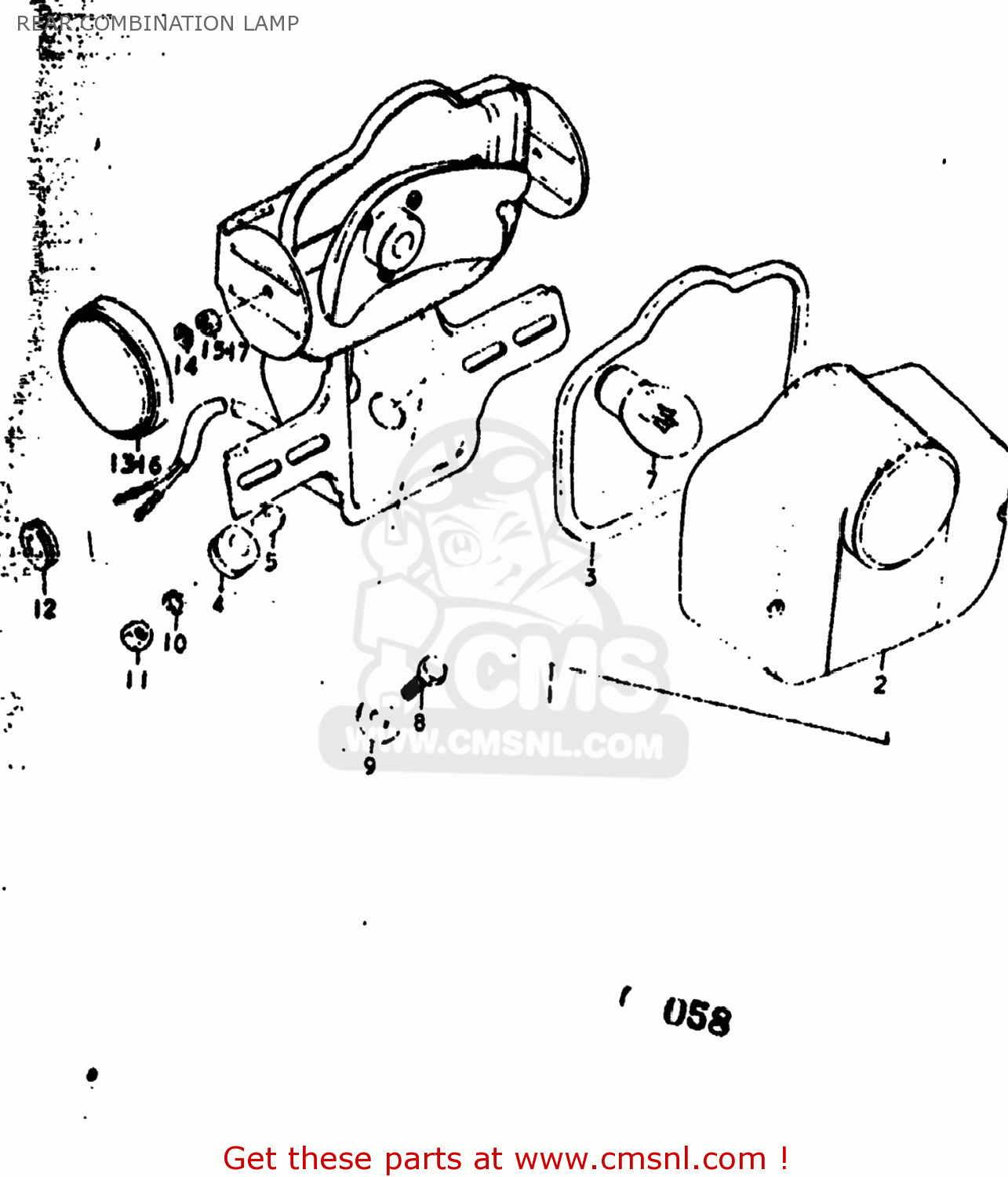

Rear combination lamp diagram RV90 1977 (B) USA (E03)
REAR COMBINATION LAMP RV90 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3500127814999
ref: 1-1
LAMP REAR
€ 171.50
1-2
3571027640
ref: 1-2
LAMP ASSEMBLY,REAR COMBINATION
€ 171.50
2
3571227630
ref: 2
35712-23011
LENS,REAR COMBINATION LAMP
€ 50.50
3
3571327630
ref: 3
GASKET (NAS)
€ 5.50
4
3576515010
ref: 4
CUSHION
€ 9.00
5
3576615010
ref: 5
35766-37110
SPACER,REAR COMBINATION LAMP
€ 11.50
6
0211104558
ref: 6
02112-04558
SCREW
€ 1.50
7
0947106030
ref: 7
BULB(6V32/3CP,STANLEY)
€ 12.50
8
0111206208
ref: 8
01500-06207
BOLT
€ 2.00
9
0916006020
ref: 9
09160-06066
WASHER
€ 2.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
0831111068
ref: 11
08310-00067
NUT
€ 2.50
12
0930805005
ref: 12
GROMMET
€ 3.00
13
3597015010
ref: 13
REFLECTOR,REFLEX
€ 19.50
14
0832121058
ref: 14
08321-0105A
LOCK WASHER
€ 2.00
15
0831111058
ref: 15
08310-00057
NUT
€ 2.50
16
3597045610
ref: 16
35970-30910
REFLECTOR,REFLEX
€ 47.50
17
0831111058
ref: 17
08310-00057
NUT
€ 2.50
