FRAME COVER (MODEL Z)

SP125 1982 (Z) USA (E03)

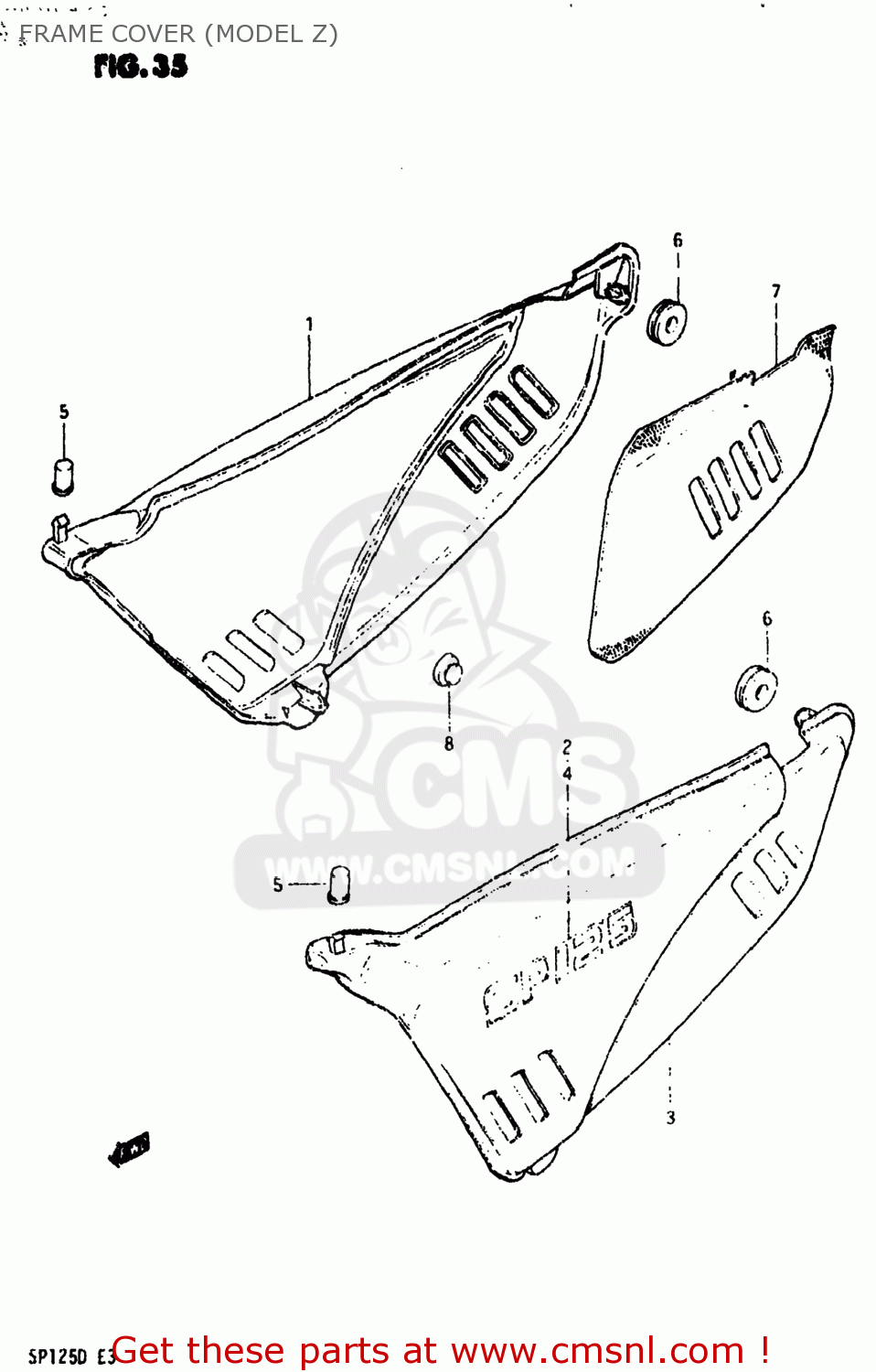

Frame cover (model z) diagram SP125 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) SP125 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) SP125 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

471110521007P
ref: 1
47111-05212-13L

COVER,FRAME,RIGHT

€ 85.50

2

681310520073H
ref: 2

EMBLEM

€ 6.50

3

472110523007P
ref: 3
47211-05231

COVER,FRAME,LEFT

€ 43.00

4

681310520073H
ref: 4

EMBLEM

€ 6.50

5

0932003005
ref: 5
09320-03004

CUSHION

€ 2.00

6

0932008018
ref: 6

CUSHION

€ 4.00

7

4712205201
ref: 7
47122-05202

HEAT SHIELD,FRAME COVER

€ 36.50

8

0932110001
ref: 8

CUSHION

€ 2.50
