REAR SWINGING ARM
SP125 1982 (Z) USA (E03)

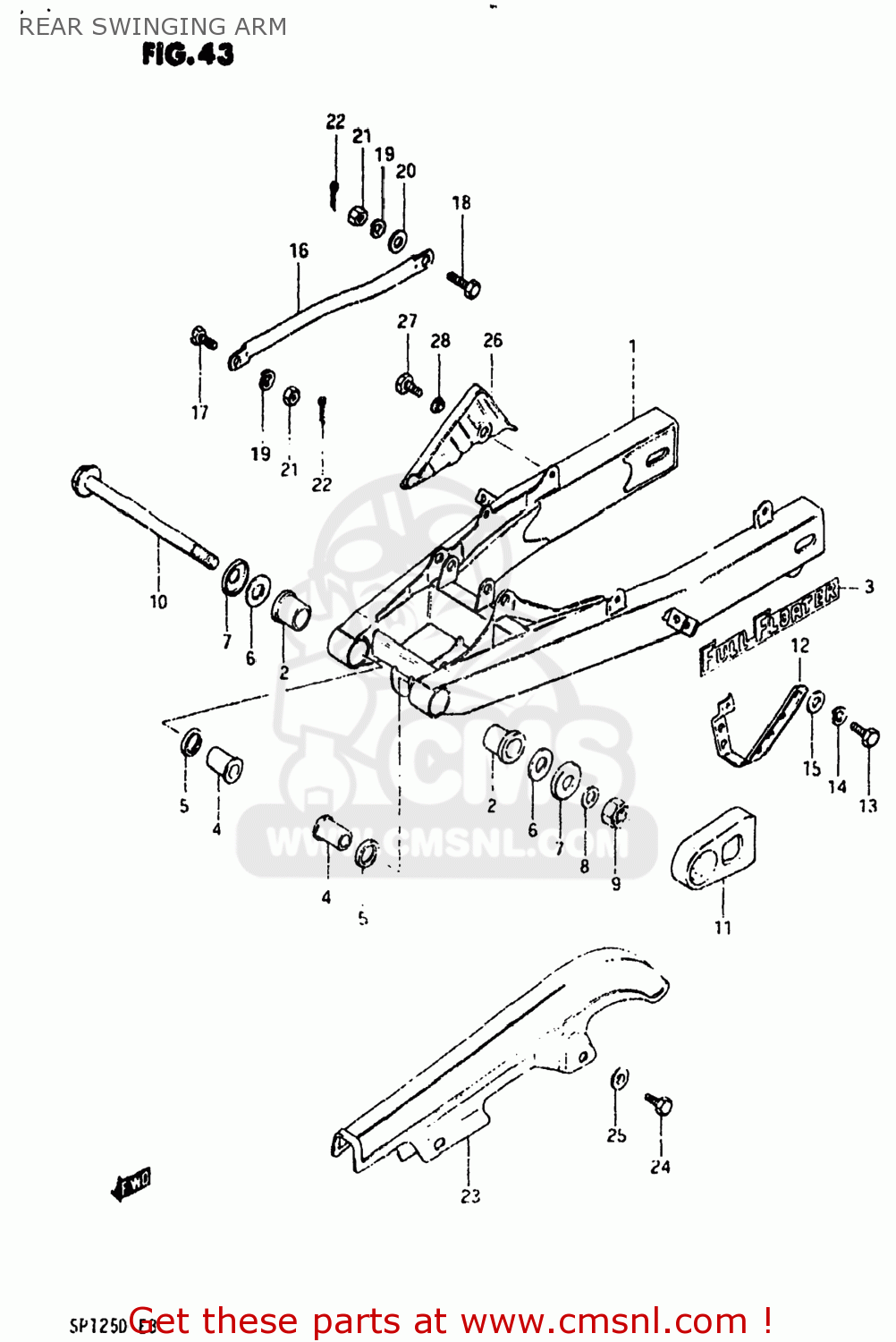

Rear swinging arm diagram SP125 1982 (Z) USA (E03)
REAR SWINGING ARM SP125 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
610000520008C
ref: 1-1
61000-05203-08C
SWING ARM ASSEMBLY,REAR
€ 191.00
1-2
610000520308C
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 191.00
2
6126105300
ref: 2
61261-05301
BUSHING,REAR SWING ARM PIVOT
€ 9.50
3-1
683812040064D
ref: 3-1
EMBLEM
€ 4.50
3-2
683811411069L
ref: 3-2
EMBLEM,REAR SWING ARM
€ 4.50
4
6125105300
ref: 4
SPACER,RR SWGARM PIVOT
€ 10.00
5
0928620001
ref: 5
SEAL,OIL(20X27X5)
€ 2.50
6
0821114341
ref: 6
WASHER
€ 3.00
7
6126245002
ref: 7
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
8
0832211148
ref: 8
08322-01147
WASHER
€ 2.00
9
0831921148
ref: 9
08319-2114A
NUT 14MM
€ 3.00
10-1
6121105300
ref: 10-1
61211-05302
SHAFT,REAR SWING ARM
€ 12.00
10-2
6121105301
ref: 10-2
61211-05302
SHAFT,REAR SWING ARM
€ 12.00
11-1
6127305200
ref: 11-1
61273-05201
BUFFER,CHAIN TOUCH DEFLECTOR
€ 14.50
11-2
6127305201
ref: 11-2
BUFFER,CHAIN TOUCH DEFENSE
€ 14.50
12-1
6134148502
ref: 12-1
61341-48504
GUIDE,CHAIN
€ 10.00
12-2
6134148504
ref: 12-2
GUIDE,CHAIN
€ 10.00
13
0110708128
ref: 13
01500-08127
BOLT 8X12
€ 2.50
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
643114600008C
ref: 16
64311-46000-019
TORQUE LINK,REAR
€ 8.00
17
0911108015
ref: 17
BOLT(8X22)
€ 3.00
18
0911108013
ref: 18
BOLT(8X26.5)
€ 3.00
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21
0914008008
ref: 21
NUT
€ 1.50
22
0411120208
ref: 22
04111-2020A
PIN 20X20
€ 1.50
23-1
6131138201291
ref: 23-1
61311-38203
CASE,CHAIN
€ 35.00
23-2
6131138202291
ref: 23-2
61311-38203
CASE,CHAIN
€ 35.00
24
0910006092
ref: 24
09100-06157
BOLT 6X8
€ 2.50
25
0916906026
ref: 25
WASHER
€ 2.00
26
6139138200
ref: 26
GUARD,PILLION FOOT
€ 0.00
27
0910006092
ref: 27
09100-06157
BOLT 6X8
€ 2.50
28
0916906026
ref: 28
WASHER
€ 2.00
