Buy Suzuki SP Parts Online
home
ELECTRICAL
SP125 1987 (H) USA (E03)

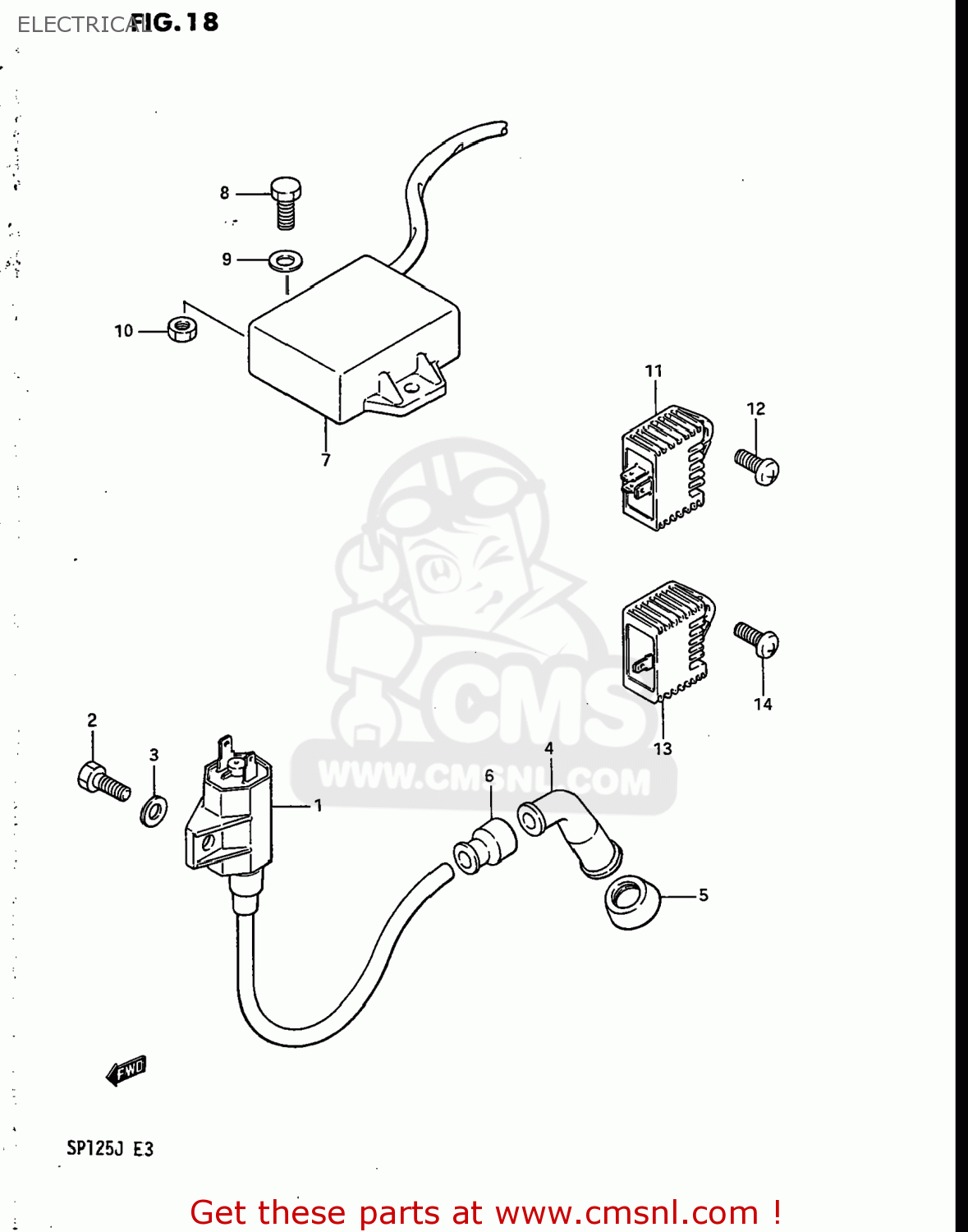

Electrical diagram SP125 1987 (H) USA (E03)
ELECTRICAL SP125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341042A00
ref: 1
33410-22AV0
COIL ASSEMBLY,IGNITION
€ 80.50
2
0110706166
ref: 2
01500-0616A
BOLT
€ 2.00
3
0832221066
ref: 3
08322-0106B
WASHER, LOWER
€ 2.00
4
3351043010
ref: 4
CAP,SPARK PLUG
€ 11.50
5
3354124510
ref: 5
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
6-1
3354298000
ref: 6-1
33542-38B00
SEAL,SPARK PLU
€ 4.50
6-2
3354238B00
ref: 6-2
SEAL,HIGH TENSION CORD
€ 4.50
7-1
3290044A00
ref: 7-1
CDI UNIT
€ 250.50
7-2
3290044A10
ref: 7-2
CDI UNIT
€ 0.00
8
0110706166
ref: 8
01500-0616A
BOLT
€ 2.00
9
0832221066
ref: 9
08322-0106B
WASHER, LOWER
€ 2.00
10
0831011066
ref: 10
08310-0006A
NUT
€ 2.00
11
3280038200
ref: 11
RECTIFIER ASSY,REGULATOR
€ 72.50
12
0211206166
ref: 12
02112-0616A
SCREW
€ 2.00
13
3250044A00
ref: 13
REGULATOR ASSY,VOLTAGE
€ 0.00
14
0211206166
ref: 14
02112-0616A
SCREW
€ 2.00
