REAR COMBINATION LAMP
SP200 1986 (G) USA (E03)

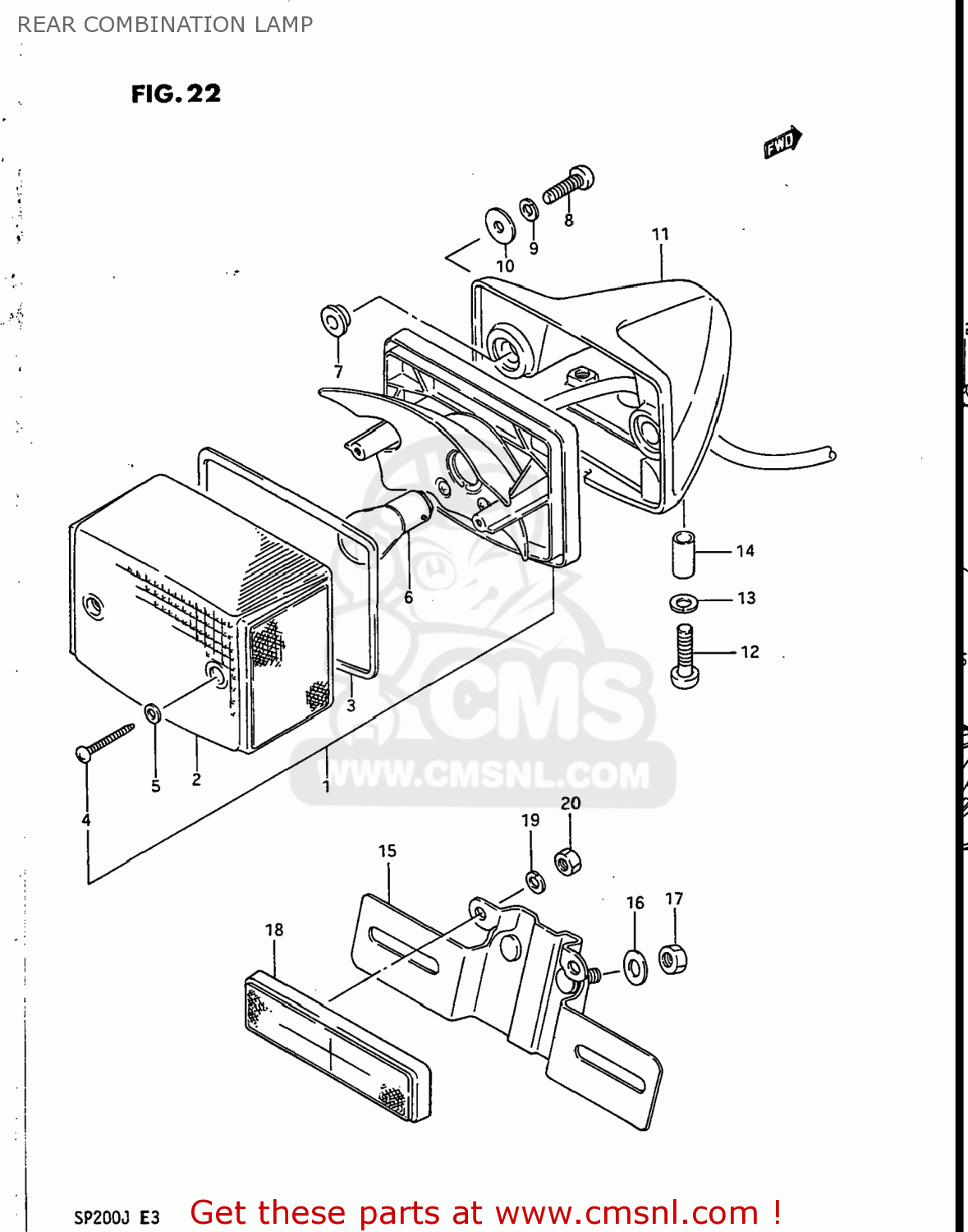

Rear combination lamp diagram SP200 1986 (G) USA (E03)
REAR COMBINATION LAMP SP200 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572044A40
ref: 1
35710-44B10-999
LAMP UNIT,REAR COMBINATION
€ 31.00
2
3571248510
ref: 2
LENS
€ 80.50
3
3571348510
ref: 3
GASKET (NAS)
€ 8.50
4
0321104308
ref: 4
03211-04306
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112084
ref: 6
BULB(12V23/8W,TOKAI DENSO)
€ 6.00
7
3576601A00
ref: 7
SPACER,RR COMBI
€ 3.00
8
0211205205
ref: 8
02112-0520B
SCREW 5X20
€ 2.50
9
0832121055
ref: 9
08321-0105A
WASHER,LOCK
€ 3.00
10
3572717210
ref: 10
09160-05037
WASHER
€ 1.50
11
3573044A30
ref: 11
BRACKET UNIT,TAIL LAMP
€ 0.00
12
0211206256
ref: 12
02112-0625A
SCREW
€ 1.50
13
0832121066
ref: 13
08321-0106A
WASHER,LOCK
€ 2.00
14
0918006121
ref: 14
SPACER(6.4X9.2X12)
€ 2.50
15
3592742A00
ref: 15
BRACKET,LICENSE PLATE
€ 0.00
16
0916006004
ref: 16
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
17
0831011065
ref: 17
08310-0006A
NUT
€ 2.00
18
3597044A00
ref: 18
REFLEX REFLECTOR,RR
€ 11.50
19
0832121055
ref: 19
08321-0105A
WASHER,LOCK
€ 3.00
20
0831011058
ref: 20
08310-00057
NUT
€ 2.50
