STAND - REAR BRAKE
SP200 1986 (G) USA (E03)

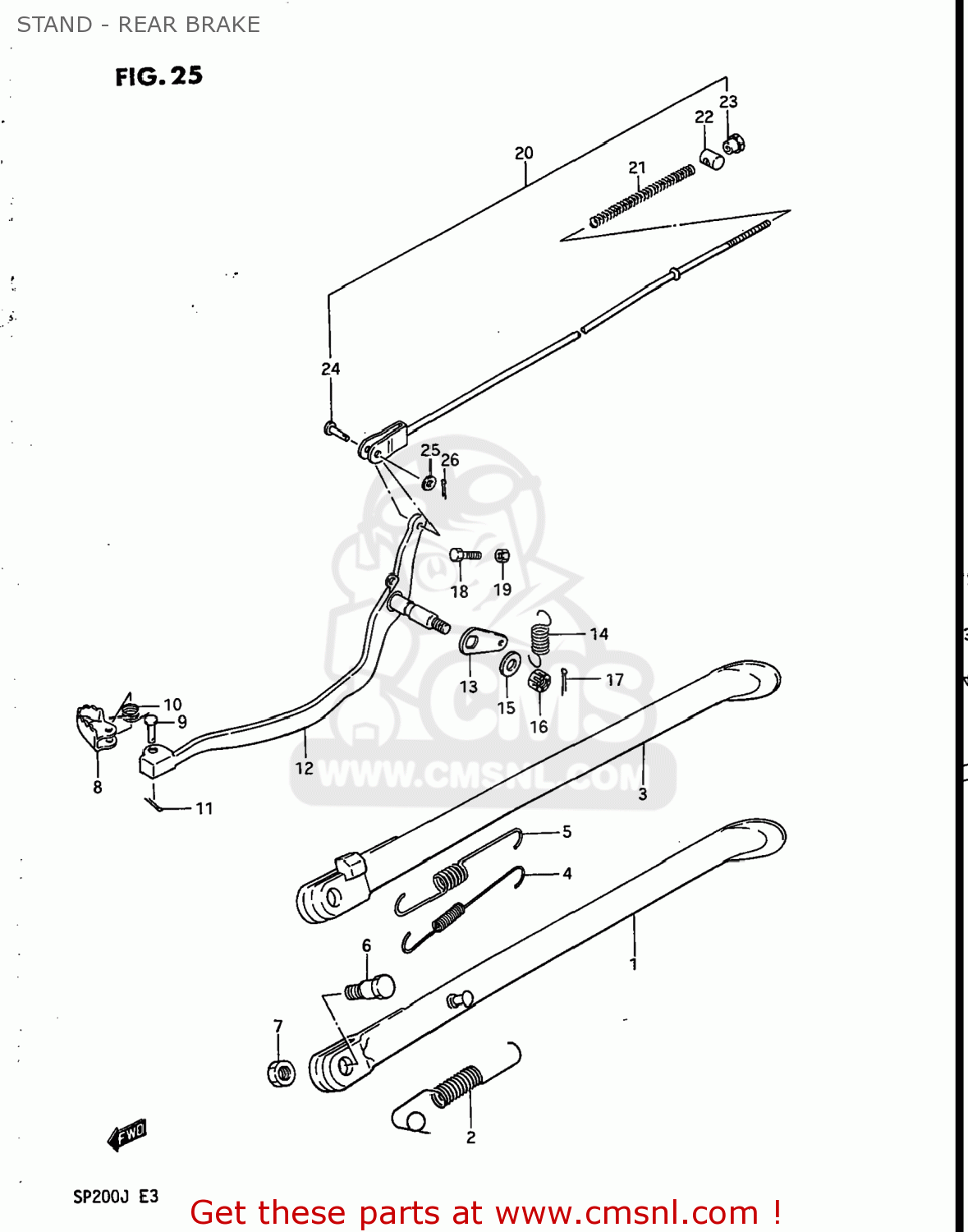

Stand - rear brake diagram SP200 1986 (G) USA (E03)
STAND - REAR BRAKE SP200 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231042A10019
ref: 1
STAND,PROP
€ 23.50
2
0944315024
ref: 2
SPRING
€ 4.50
3
4231042A21019
ref: 3
42310-42A23-019
STAND,PROP
€ 33.50
4
0944312035
ref: 4
SPRING
€ 6.00
5
0944320003
ref: 5
SPRING
€ 9.00
6
0911110019
ref: 6
09111-10047
BOLT L:30
€ 4.50
7
0831022107
ref: 7
08310-00107
NUT
€ 2.50
8
4311014130
ref: 8
PEDAL,BRAKE
€ 6.00
9
0920006038
ref: 9
PIN
€ 2.00
10
0944411004
ref: 10
09444-11005
SPRING
€ 3.00
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
4312044A10
ref: 12
43120-44A12
ARM,BRAKE PEDAL
€ 34.00
13
4312838200
ref: 13
ARM,BRAKE RETURN SPRING
€ 3.50
14
0944314002
ref: 14
SPRING
€ 2.50
15
0821108202
ref: 15
WASHER
€ 1.50
16
0831441088
ref: 16
08314-4008B
NUT 8MM
€ 2.50
17
0411120208
ref: 17
04111-2020A
PIN 20X20
€ 1.50
18
0910006009
ref: 18
BOLT(6X23)
€ 1.50
19
0831011067
ref: 19
08310-00067
NUT 6MM
€ 2.50
20
4330042A01
ref: 20
43300-42A02
ROD ASSEMBLY,REAR BRAKE
€ 12.50
21
0944009004
ref: 21
SPRING
€ 2.00
22
0920913005
ref: 22
09209-13018
PIN
€ 3.50
23
0915006009
ref: 23
09150-06010
NUT (6MM)
€ 3.50
24
0920006013
ref: 24
PIN(L:13.5)
€ 2.00
25
0832221067
ref: 25
08322-01067
WASHER
€ 2.00
26
0411120208
ref: 26
04111-2020A
PIN 20X20
€ 1.50
