CARBURETOR
SP370 1979 (N) USA (E03)

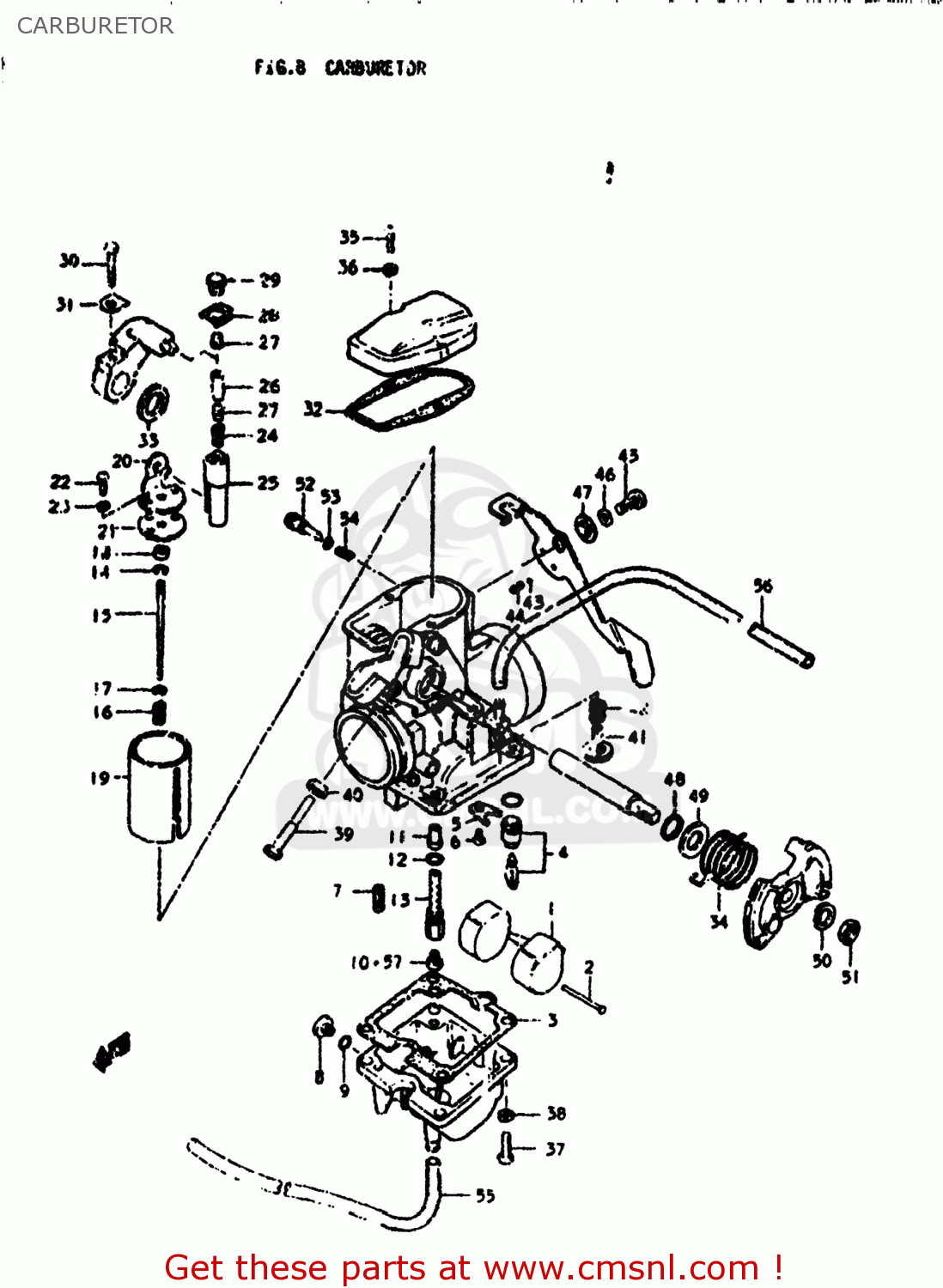

Carburetor diagram SP370 1979 (N) USA (E03)
CARBURETOR SP370 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320032400
ref: 0
CARBURETOR ASSEMBLY
€ 105.00
1
1325232410
ref: 1
FLOAT
€ 34.50
2
1325492311
ref: 2
PIN,FLOAT
€ 2.00
3
1325132410
ref: 3
GASKET,FLOAT CAHMBER (NAS)
€ 9.50
4
1337032410
ref: 4
VALVE ASSY,NEEDLE
€ 90.00
5
1337339110
ref: 5
PLATE
€ 6.50
6
0211104067
ref: 6
02112-0406B
SCREW
€ 2.00
7
0949225005
ref: 7
JET,PILOT(25)
€ 6.50
8
1324745010
ref: 8
SCREW
€ 7.50
9
1324643010
ref: 9
O RING
€ 4.00
10
0949125010
ref: 10
JET,MAIN(125)
€ 8.50
11
1338532410
ref: 11
HOLDER,JET
€ 0.00
12
1324643010
ref: 12
O RING
€ 4.00
13
0949400227
ref: 13
JET,NEEDLE
€ 5.50
14
1339410010
ref: 14
CLIP
€ 4.50
15
1338332400
ref: 15
NEEDLE JET
€ 0.00
16
1338847010
ref: 16
SPRING
€ 7.00
17
1338247010
ref: 17
WASHER,JET NEEDLE
€ 3.00
18
1338747010
ref: 18
RING
€ 7.50
19
1355132400
ref: 19
VALVE,THROTTLE
€ 0.00
20
1339830650
ref: 20
BRACKET,CARBURETOR
€ 0.00
21
1358129320
ref: 21
PLATE,THROTTLE VALVE
€ 8.50
22
0211103108
ref: 22
02112-03107
SCREW
€ 1.50
23
0832121038
ref: 23
09162-03001
LOCK WASHER
€ 1.50
24
1354332410
ref: 24
SPRING,CARBURETOR
€ 0.00
25
1354532212
ref: 25
LEVER ASSEMBLY
€ 0.00
26
1354630650
ref: 26
SPRING
€ 10.00
27
1354443010
ref: 27
PIN,CARBURETOR
€ 2.50
28
1354743010
ref: 28
PLATE,CARBURETOR
€ 0.00
29
1354832212
ref: 29
SCREW
€ 0.00
30
1361330650
ref: 30
BOLT
€ 0.00
31
1357630650
ref: 31
RING
€ 0.00
32
1326630650
ref: 32
GASKET,TOP (NAS)
€ 6.50
33
1357430650
ref: 33
RING
€ 0.00
34
1357432410
ref: 34
RING
€ 0.00
35
0211204168
ref: 35
02112-0416A
SCREW
€ 1.00
36
0832121048
ref: 36
08321-0104A
LOCK WASHER
€ 2.00
37
0211205168
ref: 37
02112-05167
SCREW
€ 2.50
38
0832121058
ref: 38
08321-0105A
LOCK WASHER
€ 2.00
39
1360532410
ref: 39
SCREW
€ 0.00
40
1360731610
ref: 40
NUT
€ 0.00
41
1326732410
ref: 41
ADJUSTER
€ 6.00
42
1326831210
ref: 42
SPRING,THROTTLE SCREW
€ 4.00
43
1359693010
ref: 43
BALL,CARBURETOR
€ 3.50
44
1343443010
ref: 44
SPRING
€ 6.50
45
0211206128
ref: 45
02112-06127
SCREW 6X12
€ 2.00
46
0832121068
ref: 46
08321-01067
LOCK WASHER
€ 2.50
47
1342430650
ref: 47
RING,CARBURETOR STARTER
€ 5.00
48
1355632410
ref: 48
SEAL
€ 7.50
49
1357432410
ref: 49
RING
€ 0.00
50-1
1361430650
ref: 50-1
08321-01087
WASHER
€ 2.00
50-2
0832121088
ref: 50-2
08321-01087
LOCK WASHER
€ 2.00
51-1
1360737010
ref: 51-1
NUT
€ 2.00
51-2
0831021088
ref: 51-2
08310-00087
NUT
€ 2.00
52
1326915011
ref: 52
SCREW,PILOT AIR ADJUSTING
€ 12.50
53
1329533010
ref: 53
O RING
€ 4.50
54
1326801010
ref: 54
SPRING
€ 3.50
55
1368332410
ref: 55
13683-45070
HOSE
€ 10.00
56
1368718656
ref: 56
09355-45855-600
HOSE
€ 14.00
